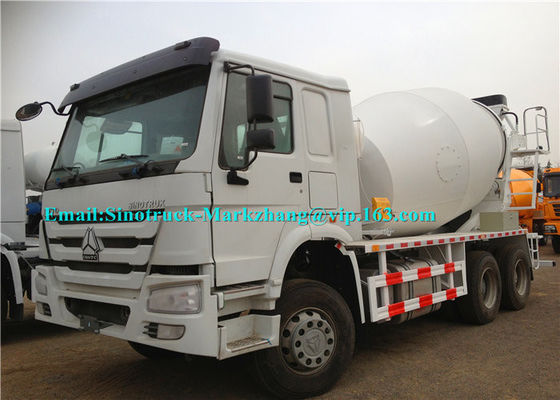

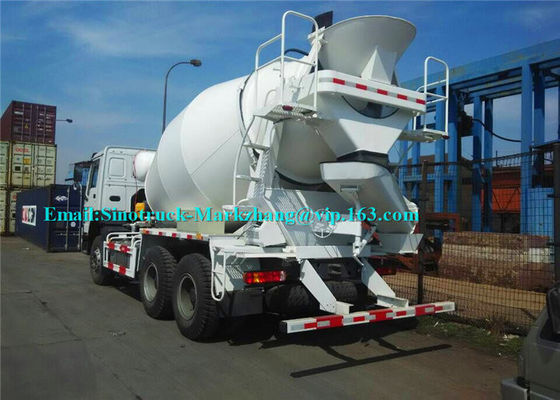

Whilte Truck Mounted Cement Mixer Machine Concrete Mixer Vehicle Eaton Motor

Whilte Truck Mounted Cement Mixer Machine Concrete Mixer Vehicle Eaton Motor

  • Whilte Truck Mounted Cement Mixer Machine Concrete Mixer Vehicle Eaton Motor
  • Whilte Truck Mounted Cement Mixer Machine Concrete Mixer Vehicle Eaton Motor
  • Whilte Truck Mounted Cement Mixer Machine Concrete Mixer Vehicle Eaton Motor
  • Whilte Truck Mounted Cement Mixer Machine Concrete Mixer Vehicle Eaton Motor
Whilte Truck Mounted Cement Mixer Machine Concrete Mixer Vehicle Eaton Motor
Product Details:
Place of Origin: CHINA
Brand Name: SINOTRUK HOWO
Certification: ISO/CCC
Model Number: ZZ5257GJBN3841W
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiation
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 35 working days after received payment
Payment Terms: L/C, T/T
Supply Ability: 1,000 units per month
Contact Now
Detailed Product Description
Model:: ZZ5257GJBN3841W HOWO Mixer Truck Cabin:: HW76,Single Bunk,AC(Option:Right Hand Driving)
Engine:: Horsepower 371Hp Transmission:: SINOTRUK HW19710
Cubage:: 10m³ Pump(ARK PV089MHR)+Motor(ARK MF089V)+Reducer(TOP P68) Tyres:: 12.00R20 Radial Ryre,315/80R22.5 Tubeless Tyre
High Light:

truck mounted concrete pump

,

self loading mobile concrete mixer

SINOTRUK HOWO-7 Mixer Truck ZZ5257GJBN3641W 6X4 Self Loading Mixer Truck



Specifications:





Cubage

Pump(ARK PV089MHR)+Motor(ARK MF089V)+Reducer(TOP T60)

Mixing Volume(M³):8m³

Stuffing Volume(%):59.3

Feeding Speed(M³/min):≥3

Discharging Speed(M³/min):≤2

Discharge Residue(%):≤0.2

Slump Scope(mm):50~220

Drum Speed( Min):0~16

Water supply Syste:400L/Pneumatic

Drum Material:8/16MnR

Steel:3mm,4mm,5m



Weight in kg



Kerb weight (Kg)

13700




Gross vehicle weight (Kg)

30000



Dimension(mm)





Dimensions(mm)

Length(mm) 8715
    Width(mm) 2550
    Height(mm) 3950
  Wheel base (mm) 3600+1350



Performance

Maximum driving speed (km/h) 92
  Fuel consumption (1/100 km) 38



Cab

Model SINOTRUK HOWO HW76 cab
    single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner



Engine

Model WD615.69(Euro 2)
  Type 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
  Horsepower 336
  Maximum output Kw/r/min 247/2200
  Maximum torque N.m/r/min 1350/1300-1600
  Bore x Stroke 126x130mm
  Valve 2
  Displacement 9.726L
  Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan
Transmission SINOTRUK HW19710 transmission ,10 forward and 2 reverse
Clutch



INOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

Steering ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
Front Axle SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
Rear Axles SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Brake System

Service brake:dual circuit compressed air brake

Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

Wheels & Tyres Rims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.



Electrics

Operating voltage:24V,negative grounded

24V,7.5KW.Starter:24V,7.5 Kw

28V,1500W.Alternator:3-phase,28V,1500 W

Batteries:2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light

Oil Tank Square type-400L Aluminum alloy fuel tank







Description:

1. China Truck SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.

Pump(ARK PV089MHR)+Motor(ARK MF089V)+Reducer(TOP T60)

Option:Rexroth+Top



Applications:



Concrete mixing truck uses strong and firm tank, which has different volumes, and meets the customers requirements. Compact and rational structure,stable and reliable performance,gorgeous and elegant cab,safe and comfortable. It is used for various construction sites.



Competitive Advantage:



1. Establishing files for every customer,our engineer will teach you how to maintain and mend .We confirm that the trucks will be always supplied the correct and enough parts whenever and wherever need. We are specialized in this area more than 10 years,rich experience and well after-sale service always with us.

2. Technique support and training. Customization service, as per your request, we will customize our production

Whilte Truck Mounted Cement Mixer Machine Concrete Mixer Vehicle Eaton Motor 0Whilte Truck Mounted Cement Mixer Machine Concrete Mixer Vehicle Eaton Motor 1
