| Place of Origin: | CHINA |
| Brand Name: | Dongfeng |
| Certification: | ISO/CCC |
| Model Number: | LMT5160TYHB |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units/month |
| Model: | LMT5160TYHB | Dongfeng: | B190 33 |
|---|---|---|---|
| Asphalt Tanker (L): | 220 | Dimension(mm): | 8480×2480×3080 |
| Maximum Gross Weight (kg): | 16000 | Rated Capacity For Heat Preservation Bin (m3): | 5 |
| High Light: | road repair equipment,road maintenance truck |
||

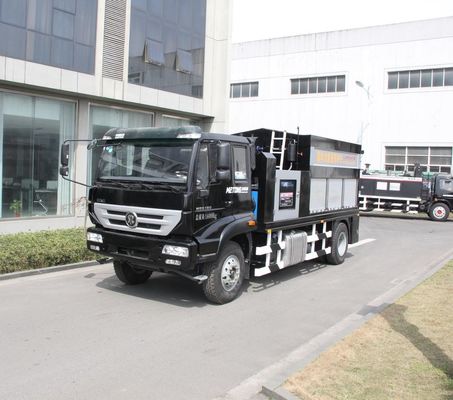

5 m3 Road pavement asphalt heat preservation maintenance equipment pothole patcher
Description:
LMT5110TYHFQ hot air Circulation system maintenance truck, jointly made with The German Company LIONTEC, adopts Hot in-place recycling Pavement maintenance technology witch achieved pavement materials 100% recycling, truly reduce material and labor costs. In addition, it’s unique hot air circulation heating and Hot in-place technology Can effectively put an end to "weak seam" problem compared to previous technology, prolong the service life of repaired pothole, improving efficiency and saving energy.
Packing:
Competitive Advantage:
1. Excellent and high-quality control.
2. After service can be dealt within 48 hours.
3. Good quality with competitive prices.
4. Flexible and convenient logistic service.
5. Shipped in Bulk Cargo, FR Container or by Roro.
6. We always keep high efficiency and products are according to your requirements.
7. The best quality standard guaranteed.
Specifications:
| Model | LMT5160TYHB |
| Product Name | Pothole Patcher |
| Chassis Model | Dongfeng |
| Generator Model | B190 33 |
| Power (kw/rpm) | 140/2500 |
| Max. Torque (Nm/rpm) | 650/1400 |
| Asphalt Tanker (L) | 220 |
| Dimension (mm) | 8480×2480×3080 |
| Curb Weight of Vehicle (kg) | 8950 |
| Maximum Gross Weight (kg) | 16000 |
| Maximum Speed (km/h) | 90 |
| Fuel Consumption for 100 kilometers (L) | < 20 |
| Rated Volume for Asphalt Tank (L) | 220 |
| Rated Capacity for Heat Preservation Bin (m3) | 5 |
| Medium Permitted Viscosity (Cst) | ≤300 |
| Maximum Pressure for Cleaning System (MPa) | 0.6 |
| Maximum Pressure for Hydraulic System (MPa) | 20 |
| After-service |
Our machines using in more than 90 countries, some of the countries have the dealer or service partner, and also we could send the engineer to your site for help you Installation, commissioning, training etc. We also supplier the free spare parts to clients when you buy the machine, it will solve the problems when happened at site |
