| Place of Origin: | CHINA |
| Brand Name: | Aolite |
| Certification: | SGS/CE |
| Model Number: | 920B |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 25-30 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
| Model Number:: | Aolite 920E | Bucket Capacity:: | 0.6m3 |
|---|---|---|---|
| Rated Load: | 1.0tons | Dump Height: | 2.8m |
| Bucket Wide: | 1.8m | Color:: | Optional |
| High Light: | earth digging equipment,crawler hydraulic excavator |
||

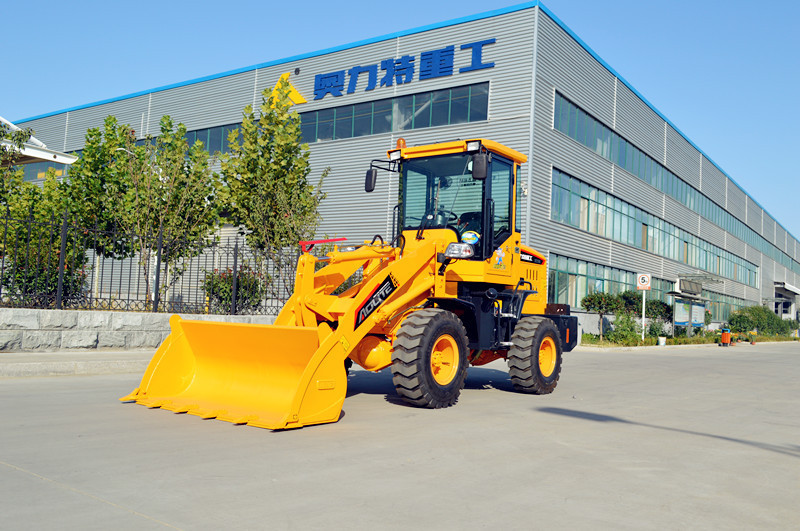

Aolite 1.0t 920B earth moving machinery with 0.6m3 Bucket capacity and Optional color
Description:
| Model | 920B | Engine | YUNNEI490 | Rated Power | 39 kw |
| Rated Load | 1.0 ton | Dump Height | 2.8 m | Bucket Capacity | 0.6 m³ |
| Dump Distance | 0.9 m | Drive | 4 WD | Bucket Wide | 1.8 m |
| Operating Weight | 3.29 ton | Battery Storage | 80 A | Converter Model | 240 |
| Tyre Size | 20.5-16 | Transmission | Continuously variable transmission | ||
| Axle | Isuzu | Overall Dimension | 5.5m×1.82m×2.75m | ||
| Brake | Gas cap oil 4-wheel caliper disc brake |
||||
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Products advantages:
1.We can supply from 0.6 to 5t wheel loader,bucket capacity from 0.3 to 3.0 m³.
2.The loader color can be designed according to customers' requirements.
3.Engine brand can be STYER.,CUMMINS,DEUTZ,WEICHAI,YUNNEI etc.
4.Providing professional technical,product training,and 7x24 after-sales services.
5.Heracles R&D engineers keep seeking to innovate all loaders,which are robust and reliable.
6.Sharing how we deliver our promise, welcome comments and questions.
7.Exploring opportunities for cooperation with global distributors and dealers to help more worldwide customers with loader solutions.
Specification:
| Basic Parameter | Dimension | 5500x1820x2750mm |
| Rated Load | 1000kg | |
| Operating Weight | 3290kg | |
| Bucket Width | 1800mm | |
| Bucket capacity | 0.6m³ | |
| Max.Dumping Height | 2800mm | |
| Max.Dumping Distance | 900mm | |
| Width of bucket | 1800mm | |
| Loader arm thickness | 25mm | |
| Frame | Normal Frame | |
| Engine | Model | YUNNEI490 |
| Rated power/Speed | 39kw/2200rpm | |
| Pattern | Inline | |
| Direct Injection | ||
| evaporation water cooling | ||
| 4 stroke cycle | ||
| Storage Battery | 80 A free-maintenance | |
| Transmission System | Axle | Isuzu |
| Gearbox model | 240 integrated type | |
| Drive Mode | Four-wheel Drive | |
| Steering Angle | ±35° | |
| Min. Turning Radius | 4500mm | |
| Steering System | ||
| Steering System | Pattern | Articulated type |
| Hydraulic power steering | ||
| Braking System | Service Brake | Hydraulically-actuated,wet disc brake actuated on four wheels |
| Parking Brake | Wet, multi-disc brake on transmission output shaft | |
| Tyre Size | 20.5-16 | |
| MOQ | 1 SET |
