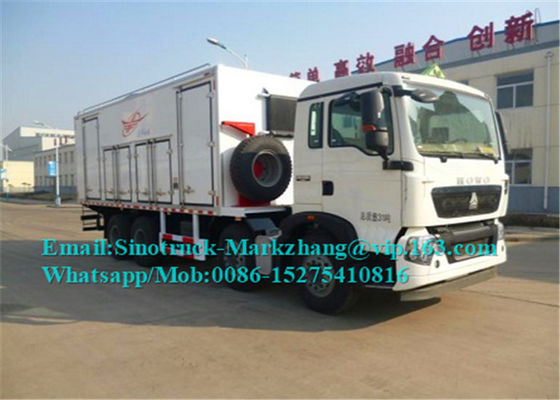

Heavy Mining Crushing Equipment ANFO Emulsion Truck With HOWO 8x4 Chassis

Heavy Mining Crushing Equipment ANFO Emulsion Truck With HOWO 8x4 Chassis

  • Heavy Mining Crushing Equipment ANFO Emulsion Truck With HOWO 8x4 Chassis
  • Heavy Mining Crushing Equipment ANFO Emulsion Truck With HOWO 8x4 Chassis
  • Heavy Mining Crushing Equipment ANFO Emulsion Truck With HOWO 8x4 Chassis
  • Heavy Mining Crushing Equipment ANFO Emulsion Truck With HOWO 8x4 Chassis
Heavy Mining Crushing Equipment ANFO Emulsion Truck With HOWO 8x4 Chassis
Product Details:
Place of Origin: CHINA
Brand Name: SINOTRUCK
Certification: ISO / CCC / SGS / CE
Model Number: BCRH-15
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Nude, shipped by bulk cargo or RORO.
Delivery Time: Within 40 working days
Payment Terms: LC / TT
Supply Ability: 300 units per month
Contact Now
Detailed Product Description
Model: BCRH-15 Chassis Model: HOWO 8x4 Truck Chassis
Porous Ammonium Nitrate Box m3: 15 Diesel Feed Box m3: 1
Hydraulic Oil Tank M3: 0.5 Charge Rate kg/min: ≥200
Measurement Error  : ±2% Filled Aperture mm   : ≥Φ90
High Light:

anfo mixer equipment

,

jaw crusher machine

Intelligent multifunctional BCRH-15T Site mixed and charged emulsion ANFO explosive truck for Mine blasting

Function:
This truck is widely used in metallurgy, coal, chemicals, building materials and other departments. Large and medium sized open pit is conducted with water hole blasting operation. The hole diameter is more than 100mm.

Description:
• Before charging, at ground station, relevant materials should be added into corresponding container in the truck.
• When loading truck comes to job site, start PTO, stretch charging tube into bottom of the hole, input explosive load on counter and press start button. Then, each preparation and mixing unit begins to work. Slowly raise charging tube. Explosive is charged below water, and water is discharged from hole. After charging, move to the next hole, repeat the above procedure, and charge the next hole.
• Charging effectiveness 200-280kg/min.
• Currently, there are 5 specifications, 8T, 12T, 15T, 20T, 25T.
• Measurement error ≤ ± 2%
Emulsified explosive truck with on-site mixing loading of NCHR line can mix pure emulsion explosives and series emulsion explosive with 30% of dry mix at most on-site. The preparation of aqueous phase, oil phase and sensitizer is operated on ground station, while latex matrix emulsion can be completed on the ground, or in truck. Dry material mixture and sensitization is conducted in truck.
Heavy Mining Crushing Equipment ANFO Emulsion Truck With HOWO 8x4 Chassis 0
ANFO mixing loading truck list of main equipment


ItemNameQT.Remarks
1Vehicle chassis1HOWO truck chassis
2

Material storage tank,Ammonium nitrate box:12m3,
Fuel tank:1 m3

 The volume size can be designed according to user requirements 304 stainless steel
3Screw conveyor3 bar304 stainless steel
4Hydraulic pressure system1 setEngine power,hydraulic oil pump,hydraulic oil container,radiator,hydraulic motor,solenoid valve group and so on
5Automatic control system1 setsensor,computer,control software,safety interlock system and so on


Main technical parameters of ANFO Truck

Chassis modelHOWO 8x4 truck chassis
Probable outline dimension (mm)11000x2500x3400
Chassis NumberZZ1317N4667W
Max.speed(km/h)80
Power SourceAutomobile engine
Porous ammonium nitrate box m320
Diesel feed box m31
Hydraulic oil tank m30.5
Charge rate kg/min≥200
measurement error±2%
Filled aperture mm≥Φ90
Safety precautionsOver temperature protection, disconnection, chain startup and stop


HOWO 8x4 truck chassis information

General information
Driving Type8X4
Wheelbase4600mm
Overall length11.00m
Overall width2.496m
Overall height3.50m
Front/ rear tread2020/1830mm
Curb weight14.00T
Total mass31.00T
Approach angle/ Departure angle15/25
Suspension form10/9+6
Engine information
Engine modelWD615.47
No. of cylinders6
Fuel typeDiesel
Cylinder arrangementIn-line
Displacement9.726L
Emission standardEuro III
Max. torque speed1200~1500RPM
Rated revolution1900RPM
Cabin information
Person2
Rows of seats1
Gearbox information
Gearbox typeHOWO gearbox
Shift modeManual
Forward gear10
Reverse gear number2
Tyre
No.of tyre12+1
Tyre model12.00-20


Heavy Mining Crushing Equipment ANFO Emulsion Truck With HOWO 8x4 Chassis 1
Applications:
Mainly used for ammonium nitrate fuel oil mixture (ANFO) filling to no water blast hole for large/medium size open-pit blasting stopes, such as metallurgy, coal, chemicals, and building materials etc.

Competitive Advantage
1. Professinal Sales Team of trucks. Our target is not selling trucks, we help customers choose the best suitable trucks.
2. Fast production period, and quick arrangement of delivery.
3. Professional team for spare parts and aftersale services.

Packaging & Shipping
RO-RO ship

Our Services
We supply technical service and tools.

FAQ

Q: How can we trust your company?
A: We are the first class dealer of Dongfeng commercial vehicle for many years.

Q: What is your warranty term?
A: We can supply you with original parts. And we can provide phone or email support. If necessary, our experienced engineers can go abroad to provide technical support to your factory.

Q: How about your product quality?
A: All of our products come from the original factory, and the quality is guaranteed by 100 hundred percent.

Q: How do you transport the trucks?
A: There are alternative ways of transportation including RORO ship, bulk cargo ship, flat rack container, 20' container, 40' container, 40' HQ, 40' top open container, and LCL to your requirements.

Q: Can I be your agent in my country?
A: We welcome you become our agent if the order quantity is appropriate and establish long-term cooperative relationship.

Tag: Explosive/ ANFO/Site mixed granular/ TRUCK
