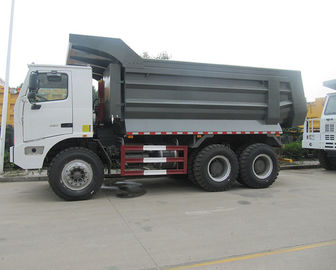

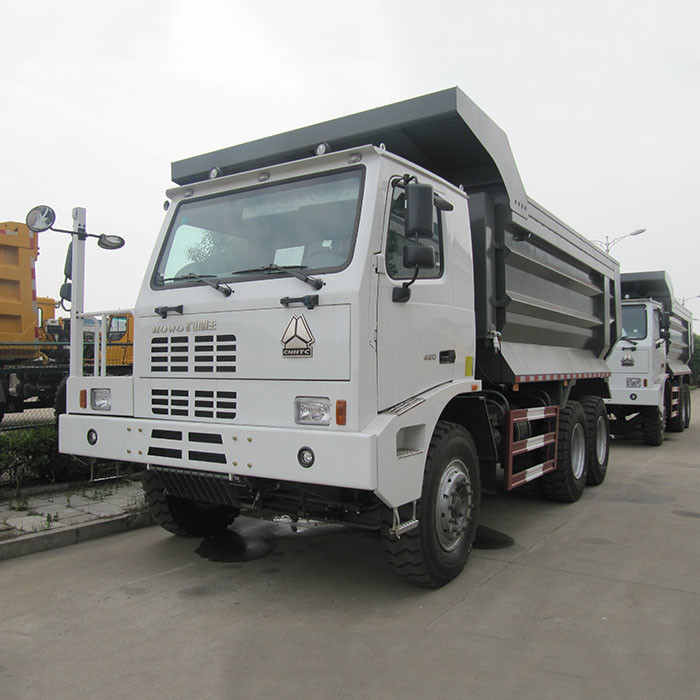

Diesel Type Ten Wheels 6x4 Mining Dump Truck With 70 Ton Capacity ZZ5707S3840AJ

Diesel Type Ten Wheels 6x4 Mining Dump Truck With 70 Ton Capacity ZZ5707S3840AJ

  • Diesel Type Ten Wheels 6x4 Mining Dump Truck With 70 Ton Capacity ZZ5707S3840AJ
  • Diesel Type Ten Wheels 6x4 Mining Dump Truck With 70 Ton Capacity ZZ5707S3840AJ
  • Diesel Type Ten Wheels 6x4 Mining Dump Truck With 70 Ton Capacity ZZ5707S3840AJ
Diesel Type Ten Wheels 6x4 Mining Dump Truck With 70 Ton Capacity ZZ5707S3840AJ
Product Details:
Place of Origin: JINA CITY OF CHINA
Brand Name: SINOTRUK HOWO
Certification: CCC/ISO
Model Number: ZZ5707S3840AJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Nude
Delivery Time: 35 work days
Payment Terms: L/C, T/T
Supply Ability: 100 units/ month
Contact Now
Detailed Product Description
Drive Wheel:: 6x4 Dimension:: 8545x3326x3560 Mm
Capacity (Load):: 61 - 70t Gross Vehicle Weight:: 70000kg
Fuel Tank Volume:: 500L Fuel Type:: Diesel
High Light:

diesel dump truck

,

sinotruk howo dump truck

,

70 ton diesel dump truck

ZZ5707S3840AJ Sinotruk howo 10 wheels 6x4 mining dump truck with 70 ton capacity​


Descriptions:


Our company have specialized in sinotruk trucks and spare parts for many years.The famous brand of sinotruk are HOWO series,HOWO A7 series,HOHAN series.We can supply tractor truck,dump truck,cargo truck,concrete mixer truck,fire tanker truck,water truck,fuel tank truck,bulk cement truck,sewage suction truck and also different types of semi trailers.SINOTRUK is located in Jinan city and was founed in 1956.It once manufactured china’s first heavy duty truck.In 1960,sinotruk introduced the steyr technology using on engine and axle from Austria.Later,sinotruk established cooperation with German man group and wobaco company.Today,sinotruk has developed into china’s largest heavy duty truck manufacturing base and made significant contributions to the development of china’s heavy duty truck industry and national economic growth.



Packing:

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

Competitive Advantage:


​1. Electro-hydraulic proportional control, stepless throttle.

2. Control box at both turret and platform.

3. Imported key components, higher reliability, excellent property and long life span.

4. Large outrigger span, outrigger can be operate individually.

5. Emergency descent power, Safety interlock.

6. Durable SINOTRUK chassis, enjoy highly reputation in the world.


Detailed Specification:

HOWO Mine King series basic configurations and main technical parameters(6x4,Euro 2)
Typical vehicle model ZZ5707S3640AJ ZZ5707S3840AJ
Cab Model HW7D
Type Sketch covering, grand view and single side reinforced mine truck dedicated cab. Suspension id helical spring with shock absorber, air conditioner and heater. Heating system fir for cold areas is optional.
Engine Model WT615.47
Reted power(kw/rpm) 273 / 2200
Max torque(Nm/rpm) 1500 / 1100-1600
Displacement/L 9.726
Type Inline 6 cylinders, two valve, rear supercharger, supercharged intercooling.
Clutch Standard 430BA pull-type diaphragm spring clutch, hydraulic control power assisted.
Transmission HW19710, main and auxiliary transmission structure, main transmission with double countershaft, auxiliary transmission with planetary reducer. With HW70 PTO
Front axle HF12, one-piece-acsting 1 bean rigid boxing-style mine dedicated front axle.
Drive axle AC26 double reduction(central reduction + wheel reduction), one-piece-acsting axle housing, with wheel and interaxle differentiallock, speed ratio:10.47; optional 8.51.
Suspension Front and rear leaf spring suspension , rear suspention is intergral type equalizing suspension.
Steering system 8118, steering box,steering oil pump and steering actuation cylinder,system pressure of 18 MPa
Brake system Service brake: dual-circuit air pressure brake; energey storage spring air cutoff brake; engine exhaust brake.
Electrical system Single wire system, negative earth, voltage:24V; generator :1540kW; starter:7.5kw; battery:12V/180Ah, 2 pieces, engine inlet electric heating.
Tyre 14.00-25; optional 14.00R25
Tank volume/L D-shape 500L
Kerb weight/kg 17260 17300
Gross mass/kg 70000 70000
Rated load / kg 52500 52460
External dimensions(l,w,h)/mm 7600x3326x3310 7800x3326x3310
Wheelbase/mm 3600+1500 3800+1500
Front/rear overhang/mm 1500 / 1000 1500 / 1000
Wheel track(front/rear)/mm 2741 / 2520 2741 / 2520
Min ground clearance(under front axle)/mm 340 340
Approach/departure angle 32 / 40 32 / 40
Max speed/(km/h) 50 50
Max packing slope/% 42 42
Min turning diameter/m 22 22
Ground clearance of fifth wheel joint face(unload)/mm 1312 1312
Container size(length*width*height),mm 5600*3100*1800 5800*3100*1800
Container volume / m3 30 32
Remark 279kw, WD615.96C and 309kw, D12.42 common rail Euro 3 engine is matching.

 Diesel Type Ten Wheels 6x4 Mining Dump Truck With 70 Ton Capacity ZZ5707S3840AJ 0Diesel Type Ten Wheels 6x4 Mining Dump Truck With 70 Ton Capacity ZZ5707S3840AJ 1
