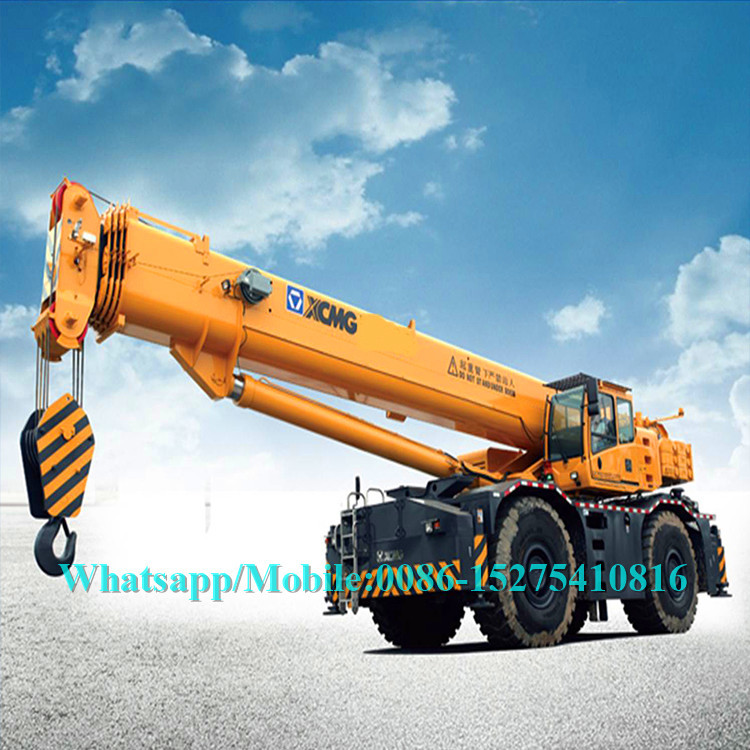

Brand New 50 Ton XCMG RT50 rough terrain crane telescopic Boom original CE Certificate

Brand New 50 Ton XCMG RT50 rough terrain crane telescopic Boom original CE Certificate

  • Brand New 50 Ton XCMG RT50 rough terrain crane telescopic Boom original CE Certificate
  • Brand New 50 Ton XCMG RT50 rough terrain crane telescopic Boom original CE Certificate
  • Brand New 50 Ton XCMG RT50 rough terrain crane telescopic Boom original CE Certificate
  • Brand New 50 Ton XCMG RT50 rough terrain crane telescopic Boom original CE Certificate
  • Brand New 50 Ton XCMG RT50 rough terrain crane telescopic Boom original CE Certificate
  • Brand New 50 Ton XCMG RT50 rough terrain crane telescopic Boom original CE Certificate
  • Brand New 50 Ton XCMG RT50 rough terrain crane telescopic Boom original CE Certificate
Brand New 50 Ton XCMG RT50 rough terrain crane telescopic Boom original CE Certificate
Product Details:
Place of Origin: CHINA
Brand Name: XCMG
Certification: CCC/ISO/CE
Model Number: RT50
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Price: Negotiation
Packaging Details: Nude
Delivery Time: 25-30 work days
Supply Ability: 1000 units per month
Contact Now
Detailed Product Description
Model No.: RT50 Lifting Capacity: 50T
Driving Type: 4x4 Dead Weight In Travel State: 38350 Kg
Engine Model: QSB6.7 Min.rated Working Radius: 3m
Base Boom Length: 10.3m
High Light:

telescopic boom truck mounted crane

,

telescopic mobile crane

Brand New 50 Ton XCMG RT50 rough terrain crane telescopic Boom original CE Certificate



Product Description



RT50 is a high-end model developed by XCMG and an experienced R&D institute in Europe, which has been approved by CE in Europe. The product is equipped with the two-axle loading chassis and has two types of driving model, four types of turning models and back-and-forward driving function. The product has five sections of quadrangular great circle main doom, H-type outrigger as well as combined self-removal and installation counterweight. It has three types of operation models such as operation with the support of outrigger, operation with the support of tire and hanging when driving. It is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites.



Product Highlights:

Technology from Europe, Performance in Leading Level

The product is developed by China and Germany with delicate design. The product has strong comprehensive lifting power with its 38.2m main doom and 17m auxiliary boom under the same boundary conditions.



Maneuvering and Flexible, Quick and Efficient

The max speed reaches 37km/h and the max gradeability is 55% and the min. turning radius is 5.7m. All these three factors make it flexible.

The product is equipped with great power system, specialized cross-country pattern tire and skid resisting differential locking gear. All these three factors make it drive over all kinds of road easily.



Safe and Reliable, No Worry to Handle

The product is equipped with lifting protection control system in case of overload, over-retracting and over-stretching as well as exclusive technology in this field like rear axle-wheel automatic return-control system and safety-driving automatic protection system. All these elevate its safety performance largely.

The product is equipped with top features in this field, professional matching upgrading and systematic evaluation test. And it has passed test like driving 4,000km and 10,000 times hanging. Both ensure its reliability.



Economic and Environment Protection, with Cost Saving

The product is equipped with optical matching power transmission system and torque converter with lockout function, which decrease the oil consumption over 20% at high speed.

The flow distribution management technology makes the system efficient; and the gravity drop luffing system needs no extra power and save the oil consumption.



Comfortable to Handle, Convenient to Operate

The product is equipped with full hydro-steering control system and automatic manual gear box, which make it easy to handle.

The product is equipped with humanized climb ladder, maintenance access and control layout. And the product is equipped with professional man-machine engineering simulation analysis, exquisite man-machine interface and stand-alone fault diagnose function. It is comfortable to handle and convenient to operate.



Products Parameter:



Item     Unit
Dimensions Overall length 12100 mm
Overall width 2980 mm
Overall height 3530 mm
Weighet Dead weight in travel state 38350 kg
1st axle 17750 kg
2nd axle 20750 kg
Power engine model QSB6.7
engine rated output 149/2100 KW/(r/min)
engine rated torque 740/1500 N.m/(r/min)
Travel Max.travel speed ≥35 km/h
Min.turning diameter ≤5.5 m
Min.ground clearance 460 mm
Approch angle 25.8 °
Departure angle 21.8 °
Max.gradeability ≥55 %
Lifting Performance Max.total rated lifting load 50 t
Min.rated working radius 3 m
Turning radius at swing table tail 4090 mm
Base boom amx.load moment 1690 kn.m
Base boom 10.3 m
Full-extended boom 38.2 m
Full-extended boom+Jib 55 m
Outrigger longitudinal distance span 7 m
Outrigger lateral distance span 7.0/5.8 m
Working speed Boom elevating time ≤80 s
Boom telescoping time ≤120 s
Max.swing speed ≥2.0 r/min
Main winch max. speed(on load) ≥125 m/min
Auxiliary winch max. speed(on load) ≥125 m/min

Products Photos:

Brand New 50 Ton XCMG RT50 rough terrain crane telescopic Boom original CE Certificate 0Brand New 50 Ton XCMG RT50 rough terrain crane telescopic Boom original CE Certificate 1Name: Transmission

Brand:6WG160

Original: Germany

6-forward and 3-reverse speed

Name: Engine
Brand: Dongfeng Cummins QSB6.7
Original: China
six-cylinder, in line, water cooled, supercharging intercooler, compression ignition diesel engine

Environmental protection compliance: Off-road EU Stage IIIA

Name :Axle and suspension
Original :Germany

Both front axle and rear axle developed by Meritor /Kessler for RTs are driven , they have heavy load-bearing capacity and high reliability and are easy to maintain .

Name :Tire
Original :China
Radial ply tire ,20.5R25 ,heavy load-bearing capacity , compliant with the working condition requirements of rough terrain crane

Name :Load moment limiter (Hirschmann )
Original :China
Hirschmann load moment limiter system with advanced micro-processing technology employed , has features of less power consumption , powerfull function and high sensitivity , and is easy to operate .LCD with large screen with show the lifting operation data , such as moment percentage , actual lifting capacity ,rated lifting capacity , working radius , boom length ,boom angle , max. lifting height ,working condition code ,parts of line, limited angle ,information code ,etc .by means of Chinese and graphical symbol . It has complete forewarning and overloading cutout function , as well as overloading memory (black box )and fault selt-diagnosis funtion .
