Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available

Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available

  • Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
  • Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
  • Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
  • Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
  • Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
  • Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available
Product Details:
Place of Origin: CHINA
Brand Name: BEIBEN
Certification: CCC/CE/ISO9001
Model Number: NG80B 4138K
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Package in Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 5000 UNITS/Month
Contact Now
Detailed Product Description
Model:: NG80B Driving Type:: 8x4
Engine Power:: 340hp Engine Model:: Weichai Brand
Wheel Base (mm): 3800+1450 Overall Dimension:: 8530X2500X3430
Tire: 12.00R24 Color:: Orange/Red/White
High Light:

sand dump truck

,

construction dump truck

North Benz Beiben Dump Truck 40 ton 50 ton 380hp 8x4 Dump Truck For Sale



Company Profile:



Beginning in 1989, CNGC Inner Mongolia First Machinery Group started imported from Germany NG80 heavy-duty tucks 20 models of foundation design, include: drawings, manufacturing process, technical standards and production equipment, At the end of 1989, the first China assembled Mercedes heavy trucks had finished from production line, It fills the blank that china could not produce high-grade heavy trucks, it lays the foundation of Beiben Company¡¯s future.

At the moment, BeiBen Heavy-Duty Company has established 3 producion bases which is in BaoTou, ChongQing and PengLai.

Main Specs:
1. Engine:Wei chai engine
2. Loading Weight: 40000kg to 60000KG
3. Superiority: Leader in heavy duty truck industry
4, left hand drive or right hand drive


Why choose beiben 8x4 dump truck ?
1. Good performance, durable and elastic
2. The lowest price with top quality in China
3. Standard materials according to technical drawing
4. OEM service, quality assurance
5. Professional supplier with many years experience



SPECIFICATION(ND3314B38)

Model 8x4 dump truck
Cabin Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C
Engine Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
Model: WP10. 380E32 WEICHAI Diesel engine
  MAX Horse power: 380HP/280KW
  Displacement(L): 9.726liter (Euro 2 standard)
  Max torque: 1500NM@1200-1600rpm
  Bore/stoke: 126mm/130mm
Gear box   Max torque:2000NM
  Model: 12JS200T, mechanism,12gears,2reverse gear, manual, synchronization
  Speed: 12speed,2reverse
Axle(front/rear)
Front axle Double-shoe pneumatic brake, non-driving steering axle
Tandem Double-shoe pneumatic brake, casting, double reduction driving axle
Clutch Single dry frictional disc,Hydraulic boosting
Brake Service brake: Brake gap can be adjusted automatically, double circulation air brake system
  Parking brake: Potential springs pressing on middle and rear wheels
  Engine brake: Engine exhaust brake(EVB)
Steering

TAS85, driver sit at the left hand side



Electric Equipment
  Operating voltage: 24Vnegative grounded
  Starter: 24V,5.4KW
  Alternator 28V,758W
  Battery voltage 12V/135Ah,cigar lighter
Frame Fish belly, shape, variable width, variable sections, side beam structure.
Tyre 12+1 spare tyre with rim
  12.00-R20
Suspension system: strongthen heavy duty Leaf spring type
  Front/Rear 12/12/13
Dump body:
Inside size of Body(mm): 8900x2300x1000,6x8mm, made of high intensity steel
Lifting type: Front lifter “T” type hydraulic system.
Overall dimension(mm): 11730x2500x3484(Length x width x height)
Wheelbase 1950+4600+1450mm
Track:
  Front/Rear 2045/1872
  Approach/Departure angle 26/27
  Front /Rear overhang 1410/2320
  Max speed 90km/h
Kerb weight: 15500kg
Oil tank capacity 300L fuel tank


The specification and the picture just for reference, Final confirmed by us.



Products Photos:

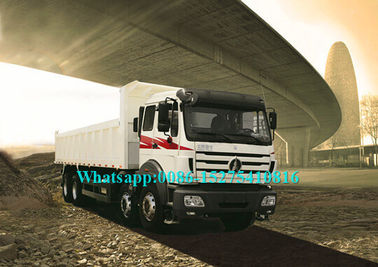

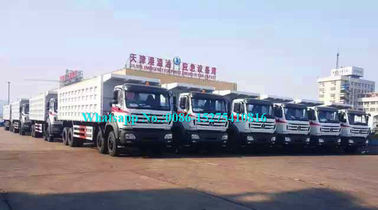

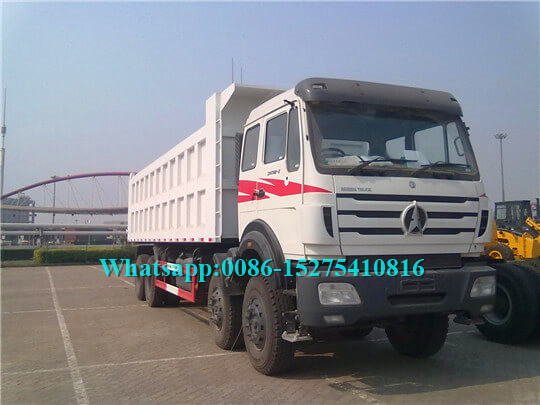

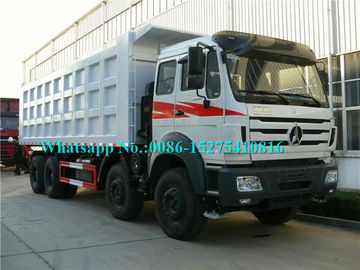

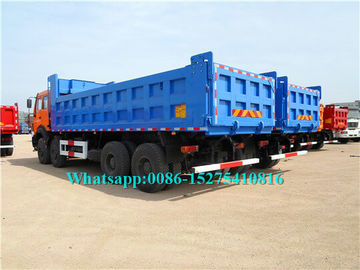

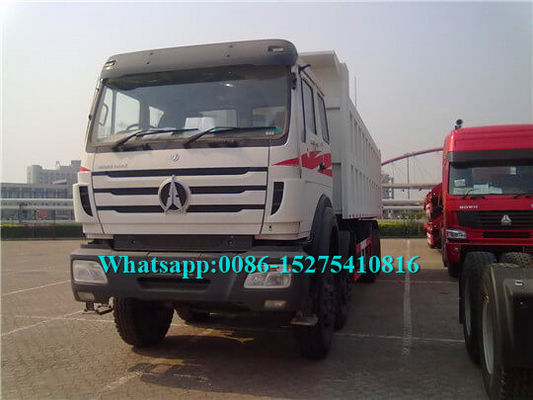

Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available 0Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available 1Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available 2Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available 3

Our Services



Presale Serivce:

Professional sales team supply personalized service according to customer's requirement.

Order operation:

We will start production of your order within 3 days with strict quality control.

Shipping:

According to different shipping requirements,our company logistics department will ship the Beiben tractor truck to you with our professional service. The necessary custom clearance documents such as contract, commercial invoice, packing list, certificate of origin will be sent to you.

After-sales Service:

Regularly callback to know the Beiben tractor truck working status and offer reasonable tech proposals.

Timely spare parts supply to guarantee the truck working continuously.

Our oversea engineers are ready all the time to serve.





Shipment:

Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available 4Blue BEIBEN 40 Ton Dump Truck Heavy Duty Drum Truck OEM Service Available 5
