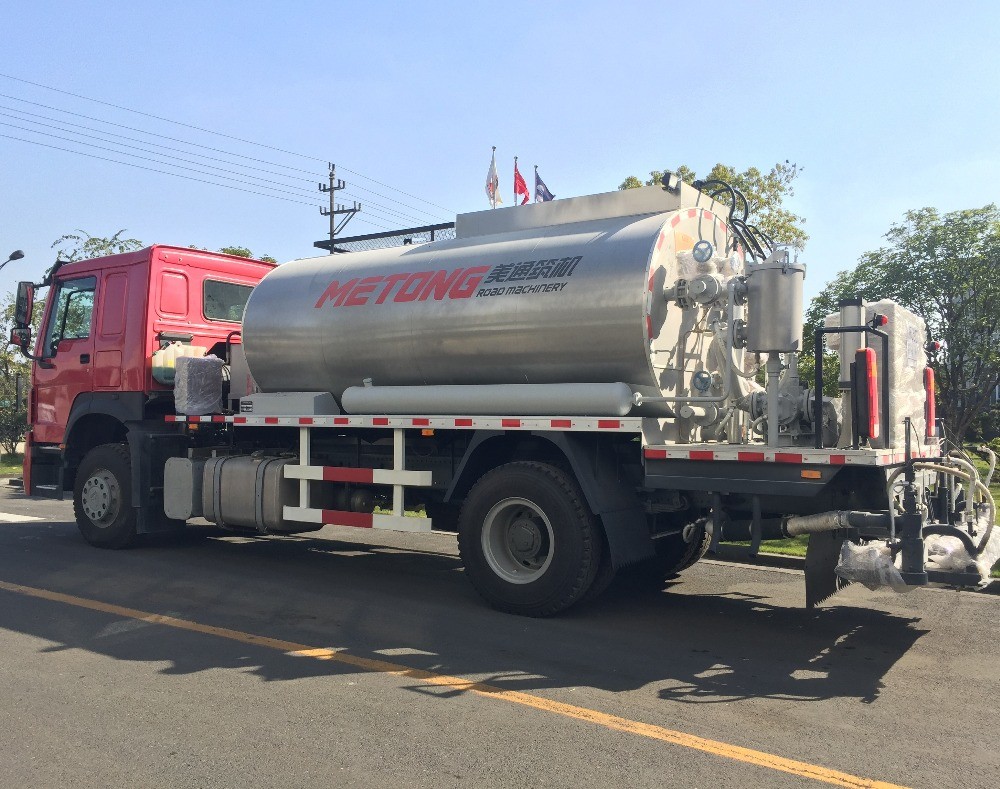

HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode

HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode

  • HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode
  • HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode
  • HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode
  • HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode
  • HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode
HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode
Product Details:
Place of Origin: CHINA
Brand Name: SINOTRUCK HOWO
Certification: CCC/ISO/CE
Model Number: ZZ1167M4611W
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiation
Packaging Details: Nude, but with wax sprayed.
Delivery Time: 35 working days after received payment
Payment Terms: L/C, T/T
Supply Ability: 1,000 units per month
Contact Now
Detailed Product Description
Model Number: ZZ1167M4611W Product:: Asphalt Sprayer For Bitumen
Driving Mode:: Truck Mounted Control Method:: Automatic In-Cab Controls
Asphalt Tank Capacity:: 8000L Spray Bar Variable (m): 0~6
Nozzle: 39 Copper (one Cylinder Controls One Nozzle) Color: Red
High Light:

bitumen distributor truck

,

asphalt distributor truck

Intelligent Asphalt Distributor, Asphalt Distributor truck,Bitumen truck,Asphalt spray truck



1.Brief introduce:

Our automatic asphalt distributor adopts the advanced foreign and domestic technologies. In addition, we join with Chang’an University, Zhejiang University and other renowned universities in researching and developing new automatic asphalt distributor.

Application

Automatic asphalt distributor is a kind of road machinery. It is applicable for layer-penetration oil, waterproof layer and bond coat at the bottom layer of high-level asphalt road.

Configuration

LMT series of automatic asphalt distributor is made up of Chassis ,asphalt tank, asphalt pump , spray system, heat conduction oil heating system, hydraulic system, electric control system, automatic control system and rising series. The main fitting adopts the most advanced components with computer system controlled spraying. Our automatic asphalt distributor’s accuracy meets Euro standards.

Together with the advantages of asphalt distributors in the word, with automatic asphalt distributor, we innovated for new technologies.

  • Any asphalt used is displaced
  • Asphalt nozzle is multilayer filtrate and keeps the quality of spray
  • Asphalt spraying is controlled by computer system
  • Asphalt spray is suitable for asphalt pavement construction, which can improve performance achievements to international standards with zero tolerance.

2.Parameters of Automatic Asphalt Distributor.



PARAMETER FOR LMT5162GLQ ASPHALT DISTRIBUTOR
(Intelligence Type)
Model LMT5162GLQ Engine Model WP10.380E32
Chassis Model SX1255NR434C Displacement (L) 9.726L
Truck Type flat head 6×2 rear drive Max. Power (kw) 280
Dimension (L×W×H) mm 9875×2495×3720 Max. Torque (N·m) 1500N·m
Cab Passenger 3 Cleaning Diesel Tank Capacity (L) 75
Vehicle kerb Mass (kg) 11.38t Fuel Tank Capacity (L) 400
Rated Load Mass (kg) 25t Hydraulic Oil Tank Capacity (L) 120
Transmission RTD-11509C Asphalt Pump Model
Wheelbase (mm) 2036 Asphalt Pump Displacement (ml/r) 0.86L/r
Tread (front/rear) mm 1860/1860mm Power Take-off Model included in chassis DFL1160BX
Min. Ground Clearance (mm) 250 Burner Model G20-474T1 ITALY RIELLO
Suspension (front/rear) mm 1430/2565 Temperature Control Cabin E5AZ JAPAN OMRAN
Approach/Departure Angle (°) 20°/14° Invert-er NFA8212-2000W
Ramp Angle (°) / Hydraulic Pump Model

Germany Rexroth

A11V040

Max. Speed (km/h) 99 Hydraulic Motor Model LY-A2F63W2P2
Working Speed(km/h) 2.5~10.5 Rated Pressure (Mpa) 15
Max. Grade ability (%) >23 Heat Conducting Oil Pump Model /Heat Conducting Oil Model GRY-40-25-160 /Great Wall 320#
Tyre Model 10.00-20×16PR Generator Model EC6500CX HONDA
Tyre Pressure front/rear (kPa) 630/630 Control System MT-1C-8(Siemens) touch screen computer control + rear plate control
Main Drive Ratio 4.226 Asphalt Tank Capacity (L) 8000
Max. Braking Distance (m) <10 Nozzle 39 Copper (one cylinder controls one nozzle)
Min. Turning Circle Dia. (m) <23.8 Spray bar Variable (m) 0~6
Oil Consumption (L/100km) <20 Spray bar Value (kg/m2) 0.3~3.0
Parking Gradient (%) >20 Emission Standard GB17691-2005(Ⅲ)
GB3847-2005





3.Strengths of Automatic Asphalt Distributor.

  • Automatic asphalt distributor boasts three layers.It can adjust the spray amount according to its operational speed.
  • The whole asphalt spraying process can be finished in the cab.
  • Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
  • The control procedure is quipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
  • The computer control system adopts modular design for lower accident rate and maintenance
  • The temperature of asphalt in tank is kept below or equal to two degrees per hour.
  • The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank.
  • The machine is also equipped with spray gun device to add asphalt at the opposite corner.
  • Asphalt pump, nozzle and asphalt tank can be heated with heat transfer oil completely or separately
  • The safe and reliable heat transfer oil heating system is controlled automatically.
  • Two kinds of speed testing devices are available: infrared impulsive sensor and America Dickey-John radar velocity.

More pictures:

HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode 0HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode 1HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode 2HOWO 10000L Asphalt Construction Equipment Truck Mounted Driving Mode 3



FAQ



Q1. What is the advantage of your Asphalt Distributor?

We have two categories of Asphalt Distributors: Ordinary and Intelligent. Please take a look at our catalog to know the 10 advantages of the Ordinary type. The advantages of the Intelligent type: 1. The main accessories (asphalt pump, burner, control system) are imported; 2. Adjustable spray amount based on the viscosity of the medium; 3. Two sets of control systems (cab and back operating platform) and newly launched GPS remote control and diagnose system. (We also launched a Standard type at lower price and high spray effect in 2005)



Q2. What is the price of your Asphalt Distributor?

We have three kinds of Asphalt Distributors: Ordinary, Standard and Intelligent. Prices range from 10,000 to 1 million based on the type, capacity and configuration.



Q3. What is the difference between Intelligent Asphalt Distributor and Standard Asphalt Distributor?

A. Intelligent: The whole operation can be carried out in the cab; Standard: Manual operation.

B. Intelligent: Imported accessories (asphalt pump--Danish ROTAN, burner—Italian Riello, hydraulic pump –Germany Rexroth, temperature control system—Omron, computer control components—Siemens. The standard type also uses imported accessories.

C. Intelligent: heat transfer oil heating system, each nozzle is controlled by separate computer. Standard: asphalt pump+ heat transfer oil, one computer controls three nozzles.



Q4. What warranty coverage do I have?

Our Asphalt Distributor has one-year warranty. We will provide free accessories for exported products.
