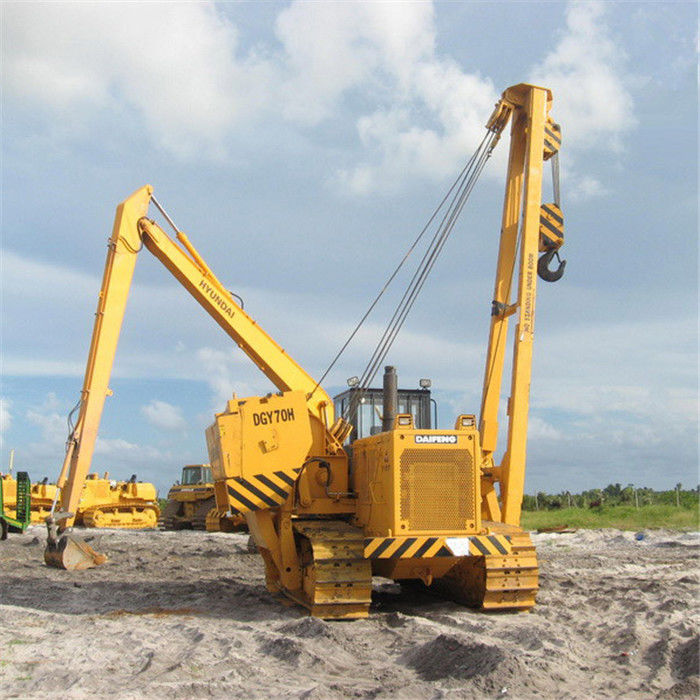

Daifeng 70 Ton Side Boom Road Construction Machinery DGY70H Pipeline Equipment

Daifeng 70 Ton Side Boom Road Construction Machinery DGY70H Pipeline Equipment

  • Daifeng 70 Ton Side Boom Road Construction Machinery DGY70H Pipeline Equipment
  • Daifeng 70 Ton Side Boom Road Construction Machinery DGY70H Pipeline Equipment
  • Daifeng 70 Ton Side Boom Road Construction Machinery DGY70H Pipeline Equipment
Daifeng 70 Ton Side Boom Road Construction Machinery DGY70H Pipeline Equipment
Product Details:
Place of Origin: Shandong, China (Mainland)
Brand Name: Daifeng
Certification: CE,ISO
Model Number: DGY70H
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: nude with wax painted
Delivery Time: 100sets/month
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Model Number: DGY70H 70ton Side Boom Color: Yellow
Lifting Weight: 70,000kg Brand Name: Daifeng
After-sales Service Provided: Engineers Available To Service Machinery Overseas Side Boom: Turbo 239kw
Operating Weight: 51,000kg Packaging Details: Nude With Wax Painted
High Light:

road work equipment

,

road construction vehicles

Pipeline equipment Daifeng 70ton side boom DGY70H construction machinery pipelaying


Quick Details

Place of Origin:Shandong, China (Mainland)

Brand Name:Daifeng

Model Number:DGY70H

After-sales Service Provided:Engineers available to service machinery overseas

70ton side boom color:yellow

side boom engine:Turbo 239kw

Lifting weight:70,000kg

Operating weight:51,000kg



Product Description



The  pipe layer is equipped with advanced international technology to provide load feedback and prevent overloading while working on pipe laying projects. With a hydraulic pilot control system, the operations of working devices such as the hook and lifting arm are integrated into a single lever, which is capable of precise, sensitive performance. The machine has been designed to specially measure operating functions in order to prevent overturning or rolling over.

  • The electronically controlled, dual-circuit hydrostatic drive system automatically adjusts the power output and the traveling speed to adapt to load changes
  • The hand-operated electric control system, left joystick controls machine direction and speed, right joystick operates working device; system enables accurate, simple, and comfortable operation of the machine.
  • The heavy, durable, and strong chassis provides for reliable operations in any environment.
  • The integrated and intelligent thermal management system ensures optimal temperature control, noise management, and energy conservation.
  • The intelligent service system features automatic fault detection, diagnosis, and remote technical support.
  • The cab features roll/drop-proof design, shock absorbing structure, noise reduction technology, air conditioning, unobstructed vision, and a spacious environment.
  • The modular wheel reduction system boasts reliability, long life, and easy maintenance.





PRODUCT SPECIFICATION



Max. lifting capacity Ton 70
Max. lifting moment at min. range of the boom kN.m 836(686KNX1.22m)
Max. lifting moment at max. range of the boom kN.m 650(100KNX6.5m)
Boom length m 7
Max. lifting height of the hook m 5.2
Hoisting speed (6times) m/min 6
Time of change range s 60
Chassis model   DGY-70H
Engine model   CUMMINS NT855-C360
Engine power kW/rpm 239/2000
Track gauge mm 2280
Track length on ground mm 3620
Track shoe width mm 760
Hydraulic pump model   CBGj3100/3100/1010
Hydraulic pump pressure Mpa 20
Lifting winch Hydraulic driven, planetary transmission, free-fall function
Rated pulling force of single rope (3rd layer) N 100,000
Wire rope diameter mm 22mm
Ranging winch Hydraulic driven, planetary transmission
Rated pulling force of single rope (2rd layer) N 80,000
Wire rope diameter mm 22mm
Max. grade ability o 20
Operation temperature (std.) oC -20 ~ +40

Overall dimension

(LxWxH)

with boom mm 5700x4850x7820
without boom mm 5700x3430x3300
Ground pressure without load Mpa 0.093
Operation weight kg 51,000

Daifeng 70 Ton Side Boom Road Construction Machinery DGY70H Pipeline Equipment 0Daifeng 70 Ton Side Boom Road Construction Machinery DGY70H Pipeline Equipment 1Daifeng 70 Ton Side Boom Road Construction Machinery DGY70H Pipeline Equipment 2Daifeng 70 Ton Side Boom Road Construction Machinery DGY70H Pipeline Equipment 3Daifeng 70 Ton Side Boom Road Construction Machinery DGY70H Pipeline Equipment 4
