| Place of Origin: | Shandong, China (Mainland) |
| Brand Name: | SINOTRUK |
| Certification: | CE |
| Model Number: | QDZ950S |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | nude |
| Delivery Time: | 15-50days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 Unit/Units per Year |
| Use: | Truck Trailer | Size: | 13500X2566X2900 |
|---|---|---|---|
| Max Payload: | 50000 | OEM No.: | 98938737 |
| Color: | White , Red , Or Others | Tires: | 12.00R20 |
| Rims: | 8.0-20 Disc Wheel | ||
| High Light: | diesel semi trucks,low bed semi trailer |
||

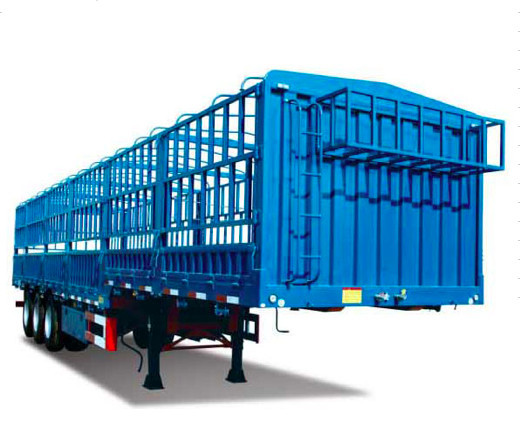

SINOTRUK 50t CANG-GATE SEMI TRAILER TRUCK fence truck Flatbed trailer with side wall cargo transport semi truck and 6x4
Use:Truck Trailer
Type:Semi-Trailer
Material:Steel
Size:11000 * 2550 * 3780mm
Max Payload:30T
Place of Origin:Shandong, China (Mainland)
Brand Name:SINOTRUK
Payload:30000kg
Tires:12.00R20
Rims:8.0-20 disc wheel
Supply Ability:300 Unit/Units per Month
Packaging Detailsnude
Portshanghai,qingdao,tianjin
Lead Time :within 30 days
Features
Our company is one of the few heavy truck manufactures in China that have the ability to produce heavy truck engines,cabins and axles. our development target is to bulid the company into a "world well-known heavy truck manufacturing base which is displaceablein China".
In order to realize this target,the enterprise will insist on carrying out four strategies,i.e internationalization,technology ahead,high quality
and low cost, and regionalization to realize the internationalization ofproducts,market, capital,mechanism,brand and talent and establish an international sustainable enterprise with self-innovation capabilityand core competitiveness.Sincerely hope to make a long business
relationship with you.
Parameters
| CANG-GATE SEMI TRAILER | |||||||||||||
| DIMENSIONS | |||||||||||||
| Tare weight | 10000kg | Payload | 50000 kg | ||||||||||
| Overall length | 13000mm | Overall width | 2500mm | Overall height | 3400mm | ||||||||
| SPECIFICATION | |||||||||||||
| Chassis | Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 16mm,width200mm;Middle Flange 8mm;bottom flange18mm,width 200mm | ||||||||||||
| Axle | Number | 3 | Brand | Fuwa | Capacity | 13T | |||||||
| Suspension | Mechanical suspension | ||||||||||||
| Leaf spring | Leaf spring 7 pcs | ||||||||||||
| Floor | 3mm bottom plate .side wall 1.5 mm | ||||||||||||
| Tire | 12R22.5 12 pcs | ||||||||||||
| Wheel rim | 9.0-22.5 | ||||||||||||
| Kingpin | 2’’ bolt-in king pin | ||||||||||||
| Landing gear | brand two-speed,manual operating ,heavy duty landing gear 24t | ||||||||||||
| Twist lock | No | ||||||||||||
| Vehicular applications | Cargos transport | ||||||||||||
| Drawing | Including | ||||||||||||
| Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks | ||||||||||||
| Paiting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint | ||||||||||||
| Accessories | One standard tool box | ||||||||||||
