| Place of Origin: | China |
| Brand Name: | FAW |
| Certification: | ISO,CCC |
| Model Number: | CA6DM2-42E3 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 pieces per month |
| Condition: | New | Emission Standard: | Euro 2 |
|---|---|---|---|
| Fuel Type: | Diesel | Size: | 6, 315 X 2,495 X 3,560 |
| Horsepower: | 351 - 450hp | Transmission Type: | Manual |
| Engine Capacity: | > 8L | Export Markets: | Global |
| High Light: | diesel tractor truck,prime mover truck |
||
China 30-40 Tons Pulling Capacity FAW Tractor Truck Optional Color Euro 2
Product description
1. For reliable ,economic ,safe ,super power ,comfortable feature , the new products FAW J6P series heavy truck are designed to meet the international commercial vehicle standard .
2. FAW J6P engines , transmission ,drive axle can represent China new commercial vehicle standard. 13L displacement CA6DN1 engine , 16 speed transmission import from German, φ485 hub reduction are the three features for the J6P tractor truck series .
3. From 8-24 ton dead weight ,adopting the German DUETZ company technique , the 6DN,6DL series engine can get 130-500 hp which were also the max displacement and torque series engine in china .
4. To get more fuel economic , the FS10209 transmission was designed according to the US EATON company technique .
5. For better load capacity , the φ500 single-reduction axle and φ485 hub reduction were researched by the Japan technique , φ300 hub reduction axle can also be optioned.
Product parameter
| SPECIFICATIONS | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6, 315 x 2,495 x 3,560 |
| Wheel base (mm) | 3,600 | |
| Wheel track (front/rear) (mm) | 1470/1045 | |
| Approach/Departure angle(°) | 18/35 | |
| Weight in KGS | Tare Weight | 7505 |
| Hauling Capacity | 34300 | |
| Front axles loading capacity | 1x6540 | |
| Rear axles loading capacity | 1x11460 | |
| Max. driving speed(km/h) | 108 | |
| Engine | Model | CA6DM2-42E4 |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 420HP | |
| Emission standard | Euro 4 | |
| Gearbox | ZF Brand Manual Transmission, 12 Gear | |
| Fuel tank (L) | 400 | |
| Tire | 12R22.5 , 7 pieces including one spare tire | |
| Special Process | Tropicalized area use | |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
| Fifth wheel | 2.0 or 3.5 inch | |
Our service
Article 1: Quality
1.1- The Goods are brand new and shall conform to the relevant quality standards of FAW Group.
1.2- The manufacturer’s inspection prior to the shipment shall be final. In case any third party’s inspection is required by the Buyer, any charges which will be occurred by such inspection shall be borne by the Buyer.
Article 2 Packing & Transportation
2.1- Packing: Nude Cargo
2.2-Shipping marks: none
2.3- Transportation:RORO vessel or container
Article 3 Quality/Specifications/Quantity discrepancy
If the quality, specifications, quantity, of Goods be found not in conformity with the stipulations of contract after the arrival of the Goods, we will compensate it after receiving the necessary documentary evidence as required.
Article 4 Warranty and After-sales service
We and all of our distributors have enough ability to provide carefulness and consideration Warranty and After-sales service.

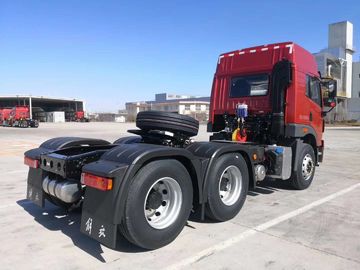

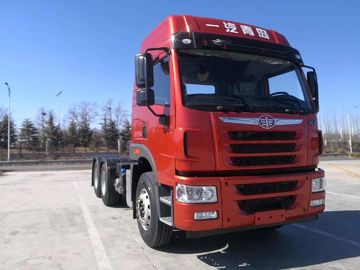

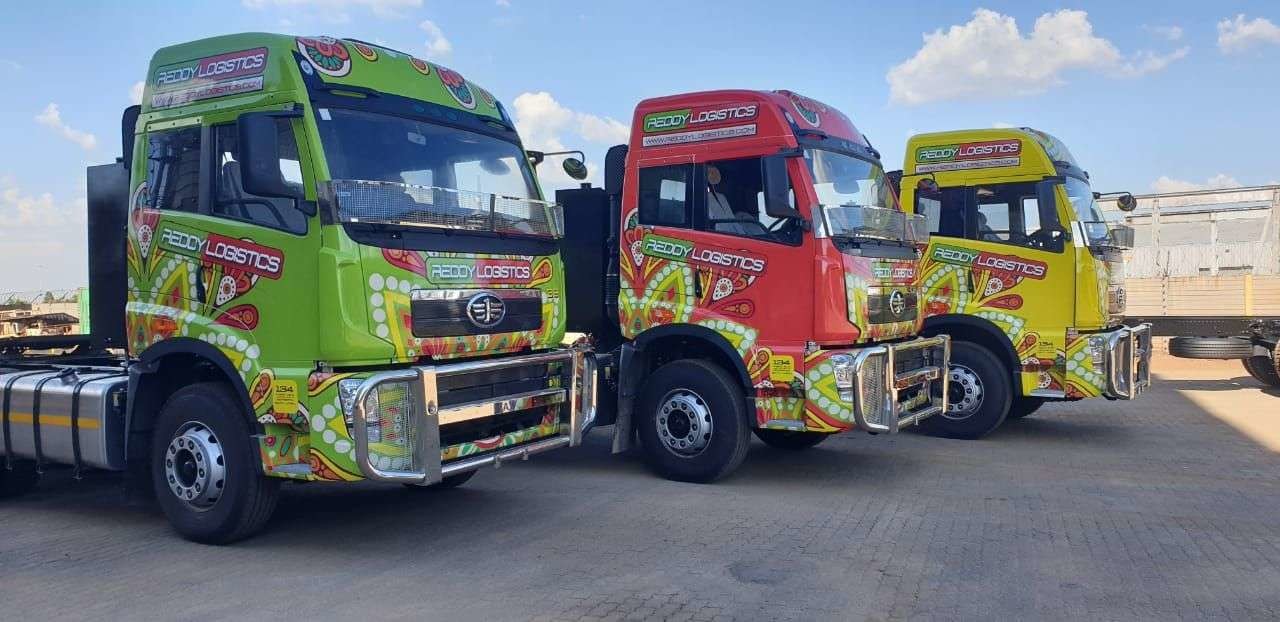

Product photo(For reference only)
