| Place of Origin: | Shandong, China (Mainland) |
| Brand Name: | HOWO |
| Certification: | CCC,ISO |
| Model Number: | ZZ3257N3647A |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 pieces per month |
| Drive Wheel: | 6x4 | Horsepower: | 351 - 450hp |
|---|---|---|---|
| Transmission Type: | Manual | Fuel Type: | Diesel |
| Engine: | WD615.47 | Capacity (Load): | 31 - 40t |
| Gross Vehicle Weight: | 40 | Emission Standard: | Euro 2 |
| High Light: | heavy duty tipper trucks,sand dump truck |
||
SINOTRUK Heavy Duty 336HP 6x4 Drive Wheel HOWO Dump Truck Optional Color
Product description
Sinotruck Dump Truck Product Advantages:
1.Popular dump truck both in domestic country and abroad.
2.10 Years export operation experience
3.Reasonable Price
4.Quick Delivery
5.Low oil consumption and longer lifespan.
Howo Dump truck applications:
1.The engine power 266hp-371hp,suitable for all kinds of roads.
2.Left hand driving and right hand driving for different countries.
3.Heavy loading dump truck,loading ranges from 15 tons to 70 tons.
4.For different weather and different environment,different trucks we can supply.No matter in Russia,Africa,south Amercia,middle east,southest Asia,it performs very well.
Product parameter
| Main Specification | |||
| Model | ZZ3257N3447C1 | ||
| Condition | New | ||
| Drive type | 6×4 | ||
| Brand | HOWO Dump Truck | ||
| Steering Wheel Type | LHD(Left hand drive) (RHD is in option) | ||
| Overall Dimension(mm) | 7835×2496×3170 | ||
| The total mass(Kg) | 25000 | ||
| Kerb weight(kg) | 12390 | ||
| Wheel base(mm) | 3425+1350 | ||
| Dimension of cargo body(mm) | L×W×H | 5200×2300×1500 | |
| Thickness of steel plate | Bottom: Side: | ||
| Capacity | |||
| Tipping system | HYVA Front tipping system | ||
| Fuel Type | Diesel | ||
| Engine | Type |
SINOTRUK brand,WD615.47 Inline six-cylinder, water-cooled, four-stroke, turbocharged inter-cooled Direct injection |
|
| Emission standard | EURO II | ||
| Horse power | 371hp | ||
| Maximum output | 273Kw @ 2200 rpm | ||
| maximum torque | 1500N.m | ||
| Displacement(L) | 9.726 | ||
| Cabin | HW76 Cabin with two seats, and one sleeper, air conditioner, | ||
| Steering | German hydraulic steering with power assistance | ||
| Transmission | Manual Type. HW19710 Sinotruk 10 Speed Transmission,10 forward and 2 reverse | ||
| Clutch | Ø430mm dry diaphragm spring diameter clutch Hydraulic boosting | ||
| Front axle | HF9(9 ton), plate (disc) brake | ||
| Driving axle | HC16(16 ton) Heavy hub reduction drive axle | ||
| Brake |
Service brake: Brake gap can be adjusted automatically, double circulation air brake system Parking brake: Potential springs pressing on middle and reel wheels Engine brake: Engine exhaust brake(EVB) |
||
| TYRE Size | 12.00-20 tires No. tire: 10+1 spare | ||
| Suspension system | Leaf spring type | ||
| Leaf Spring of Front/Rear | 10/12 | ||
| Air condition includes | YES | ||
| Fuel tank | 300L | ||
| Color | As the customer request | ||

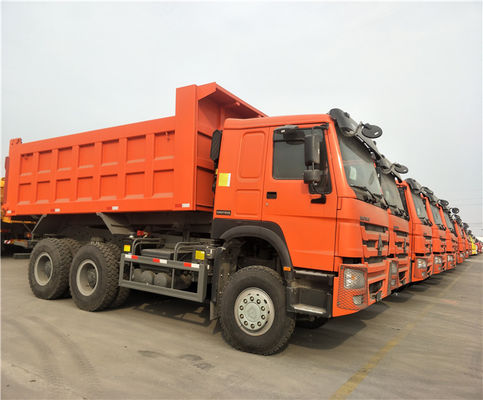

Product photo
