Yellow QY20G.5 XCMG Telescopic Boom Crane Smarter 20 Ton WD615.92E

Yellow QY20G.5 XCMG Telescopic Boom Crane Smarter 20 Ton WD615.92E

  • Yellow  QY20G.5 XCMG Telescopic Boom Crane Smarter 20 Ton WD615.92E
  • Yellow  QY20G.5 XCMG Telescopic Boom Crane Smarter 20 Ton WD615.92E
  • Yellow  QY20G.5 XCMG Telescopic Boom Crane Smarter 20 Ton WD615.92E
Yellow  QY20G.5 XCMG Telescopic Boom Crane Smarter 20 Ton WD615.92E
Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CE/ISO9001
Model Number: QY20G.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500 Set/Sets per month
Contact Now
Detailed Product Description
Max. Lifting Height: 42m Condition: New
Rated Loading Capacity: 20000kg Span: 1.3m-3.5m
Engine Rated Power: 196/198kw Maximum Lifting Height: 42.2m
Rated Lifting Moment: 860kN.m Engine Model: WD615.92E/WD615.92A
High Light:

truck mounted hydraulic crane

,

telescopic boom truck mounted crane

,

20000kg load telescopic boom crane

QY20G.5 XCMG Telescopic Boom Crane Smarter 20ton Crane Small Mobile Cranes​



Product Description



More excellent performance

The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.

• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.

• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.



More reliable quality

• Adopt the classic K series jib telescoping technique, working safer and more reliable.

• Make the most complete safety device system in the industry, ensuring the lifting safer and more reliable.

• The comprehensively upgraded brake system adopts double circuit air pressure design. Multiple systems ensure the brake safety of the truck during travel.

• The new power steering mechanism adopts hydraulic power design, which makes the steering light, flexible, and precise, and ensures the safety of the truck.

• The intensity and rigidity of the rotary table and frame structure with high rigidity are completely coordinated.

• The perfect integration of the design and structure realizes the automation of welding, which is more reliable.



Easier to operate

• The high efficient and energy efficient load sensing hydraulic system is sensitive to operate and precise to control, having good slight mobility.

• Optimize the control levers, which is easier to operate.

• The cab adopts orthodrome front windscreen, having wider operating views.



Easier to maintain

• The optimizing design of the pipeline traces makes the layout more scientific and reasonable, greatly reducing the dismantling and installing time of the pipelines and the maintenance expense.

• Completely upgrade the electrical system. Adopt anti-creep connector clips, greatly prolonging the service life of the parts.

• Adopt K series rope anti-disorder technique, improving the lifting efficiency, reducing the labor intensity, and prolonging the service life of the steel rope.

• The telescoping steel wire rope oriented and protective device avoids the steel wire rope out of the track and broken.

• Fully covered walking plate supplies a platform for the maintenance, and effectively protects the parts of the machine.



More energy-efficient and environmental friendly

• Adopt double industrial automation control engine, featuring strong power and energy efficiency.

• Under the economical mode, it can meet the engine power requirement of the normal lifting work. Under the high power mode, it can meet the requirement of the high challenge and high efficient lifting work.

• Adopt the high power radiator, avoiding the system from bad cooling, solving the problem of oil overheating, and prolonging the service life of the hydraulic oil.

• Adopt the advanced matching technique, which makes the design more scientific. It can reduce the consumption of the mechanism, prolong the service life of the machine, and has high residual value.



Product Parameter



Item     Unit
Dimensions Overall length 12400 mm
Overall width 2500 mm
Overall height 3320 mm
Weight Dead weight in travel state 26020 Kg
Front axle load 6900 Kg
Rear axle load 19120 Kg
Power Engine model WD615.92E/WD615.92A
Engine rated output 196/2200 198/2200 Kw(r/min)
Engine rated torque 1000/1100-1600 1150/1100-1600 N.m(r/min)
Travel Max.travel diameter 75 Km/h
Max.turning diameter 20 m
Max.ground clearance 270 mm
Approach angle 16 .
Departure angle 13 .
Max.gradeability 30 %
Fuel consumption of 100km 35 L
Lifting performance Max.total rated lifting load 20 t
Min.rated working radius 3 m
Turning radius atswing tadble tail 3.385 mm
Max.load mement of base boom 860 Kn.m
Lifting height of base boom 10.06 m
Lifting height of full-extended boom 32.76 m
Lifting height of full-extended boom+Jib 42.12 m
Outrigger longitudinal distance span 4.97 m
Outrigger lareral distance span 5.4

m



Working speed Boom luffing time 75 s
Boom full luffing time 95 s
Max.slewing speed 3 r/min
Max.speed of main hoist mechanism with fullload/empty(single rope) 65/100 m/min
  Max.speed of auxillary hoist mechanism with fullload/empty(single rope) 65/100 m/min

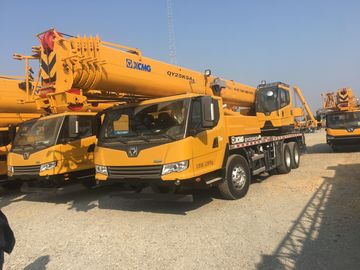

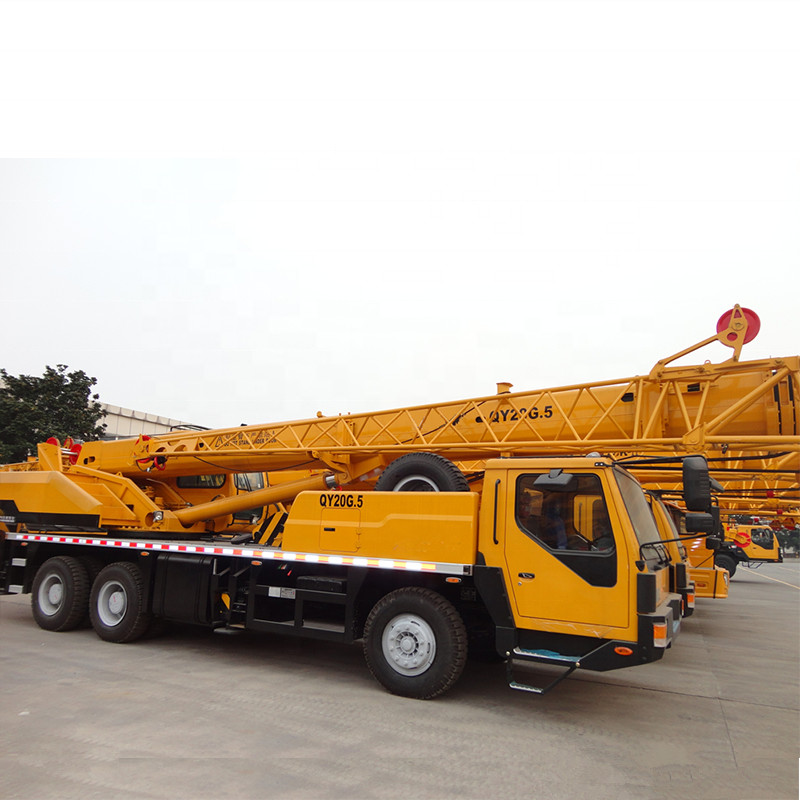

Product picture



Yellow  QY20G.5 XCMG Telescopic Boom Crane Smarter 20 Ton WD615.92E 0Yellow  QY20G.5 XCMG Telescopic Boom Crane Smarter 20 Ton WD615.92E 1Yellow  QY20G.5 XCMG Telescopic Boom Crane Smarter 20 Ton WD615.92E 2
