Steel Material 60T -70T Heavy Duty Semi Trailers Low Bed 3 Axles 12R22.5 / 12R20 Tire

Steel Material 60T -70T Heavy Duty Semi Trailers Low Bed 3 Axles 12R22.5 / 12R20 Tire

    • Steel Material 60T -70T Heavy Duty Semi Trailers Low Bed 3 Axles 12R22.5 / 12R20 Tire
    • Steel Material 60T -70T Heavy Duty Semi Trailers Low Bed 3 Axles 12R22.5 / 12R20 Tire
    • Steel Material 60T -70T Heavy Duty Semi Trailers Low Bed 3 Axles 12R22.5 / 12R20 Tire
  • Steel Material 60T -70T Heavy Duty Semi Trailers Low Bed 3 Axles 12R22.5 / 12R20 Tire

    Product Details:

    Place of Origin: Shandong, China
    Brand Name: Lu Jun
    Certification: ISO9001, CCC
    Model Number: 3/4 Axles goose low bed truck Semi Trailer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiable
    Packaging Details: nude
    Delivery Time: 30days
    Payment Terms: T/T, L/C
    Supply Ability: 400 Unit/Units per Month
    Contact Now
    Detailed Product Description
    Size: 13000*3000*1100mm Axles: 13T16P
    King Pin: 2"(50mm) Or 3.5"(90mm) Max Payload: 60T -70T
    Tire: 12R22.5 / 12R20 Color: Optional
    Landing Gear: Standard 28Ton, JOST / FUWA Etc.

    China manufacturer low bed truck semi 3 axles lowboy trailer lowboy semi trailer for sale



    Quick Details

    Use:Truck Trailer

    Type:Semi-Trailer, Semi Trailer

    Material:Steel

    Certification:ISO9001, CCC

    Size:13000*3000*1100mm

    Max Payload:60T -70T

    Place of Origin:Shandong, China

    Usage:Truck Trailer

    Product name:3/4 Axles goose low bed truck Semi Trailer

    Axles:13T16P

    Axle Brand:BPW / FUWA / Yonglitai / Huajin etc.

    Suspension:Mechanical / air / single point suspension

    Color:optional

    Landing Gear:Standard 28Ton, JOST / FUWA etc.

    Tire:12R22.5 / 12R20

    King pin:2"(50mm) or 3.5"(90mm)



    Packaging & Delivery

    Packaging Details

    Shipped by RO-RO / container / bulk cargo carrier.
    PS: 3 or 4 stack up when transported by bulk cargo carrier.
    PS: 2 or 3 units in one 40' container

    Port

    any port of China

    Lead Time :

    Quantity(Pieces) 1 - 10 >10
    Est. Time(days) 30 To be negotiated



    Product Description
    Mainly used to carry heavy mechanical , large equipment , such as excavator, tractors, buses, special purpose vehicles, large tanks, rail vehicles, mining machinery, forestry machinery, power station equipment, and other heavily goods.
    Loading 30-200tons low bed semi trailer can be provided based on client requirements.

    Characteristics:
    1. Material: T700 high strength steel, more durable and stronger; main beam is thicker and wider, reject twisting, shock and bump.
    2. Drive on different roads.
    Try our best to lower the center of gravity, make it steady for super-tall loads and to pass overhead obstacles.

    Our Services

    1. Provide customization.
    2. Strictly comply with customer requirements.
    3. Strict quality inspection.
    4. Lifelong technical support.
    PS: Nobody complain for the past 10 years, even big buyers.



    Parameter



    Overall Dimension(L*W*H) 13000*3000*1100mm or customize
    Tare Weight 7t
    Loading Weight 60t – 70t
    Axle 13T, 1-4 pcs, BPW / FUWA / Yonglitai / Huajin etc.
    Leaf Spring 90*13-10, 6/8 sets, Funiu / Taiyue etc.
    Suspension system Mechanical Suspension / air suspension / single point suspension
    (Germany Type or America Type or Japan Type)
    Main Beam T700 Steel. beam height 520mm, upper plate 12mm, down plate 14mm, middle plate 10mm.
    Side Beam T700 Steel, beam height 230mm, upper plate 8mm, down plate is 8mm, middle plate is 6mm.
    Cross member “C” type & “T” type channel steel
    Platform plate Side 4# checker plate, middle 1.8# checker plate
    Steel Rim 9.00-22.5, 12 pcs
    Tool Box 1 spanner, 1 gudgeon sleeve and 1 cranking bar
    Tire Type and quantity 12R22.5-18, 12units
    Steel Rim 9.00-22.5, 12Units
    Tool Box 1 Standard (equipped with 1 unit tyre spanner, 1 unit gudgeon sleeve and 1 unit cranking bar)
    Traction Pin 2"(50mm) or 3.5"(90mm)
    Spare Wheel Bracket
    1 piece
    Landing Gear
    Standard 28Ton, Single-Side Operation or Double-Side Operation, JOST / FUWA etc.
    Brake system
    WABCO RE 6 relay valve; T30/30+T30 chamber; two 40L air tanks, ABS Optional
    Ladder
    1 pair, Mechanical or hydraulic type, width 800mm
    Electrical system
    1. Voltage: 24V, LED lights
    2. Tail lamp with turn signal, brake light & reflector, side lamp etc.
    3. 7 ways (7 wire harness)
    Painting
    Complete chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paints
    other
    Can add Mid & Rear Side protection, the side beam hook

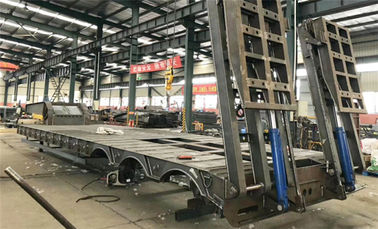

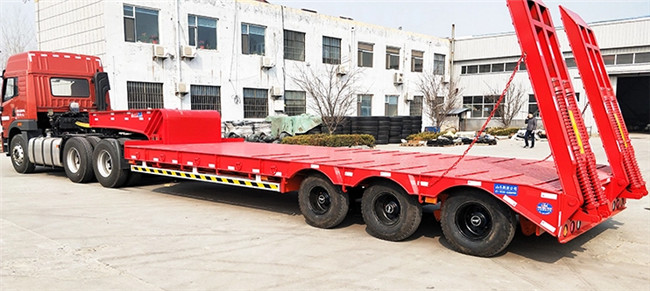

    Photos
