| Place of Origin: | Shandong，China |
| Brand Name: | SINOTRUK HOWO |
| Certification: | ISO9001 |
| Model Number: | ZZ3317N3067W |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed in nude |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500sets per month |
| Drive Wheel: | 8X4 | Transmission: | HW19710 Transmission |
|---|---|---|---|
| Engine: | WD615.47,371HP | Color: | Optional |
| Fuel Type: | Diesel | Keywords: | Dump Truck |
| High Light: | heavy duty tipper trucks,construction dump truck |
||

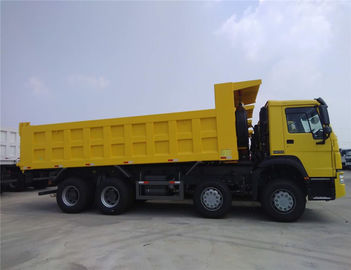

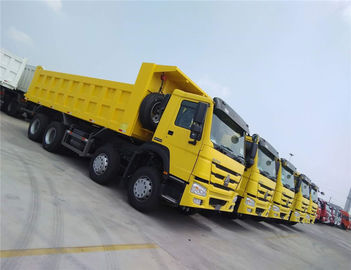

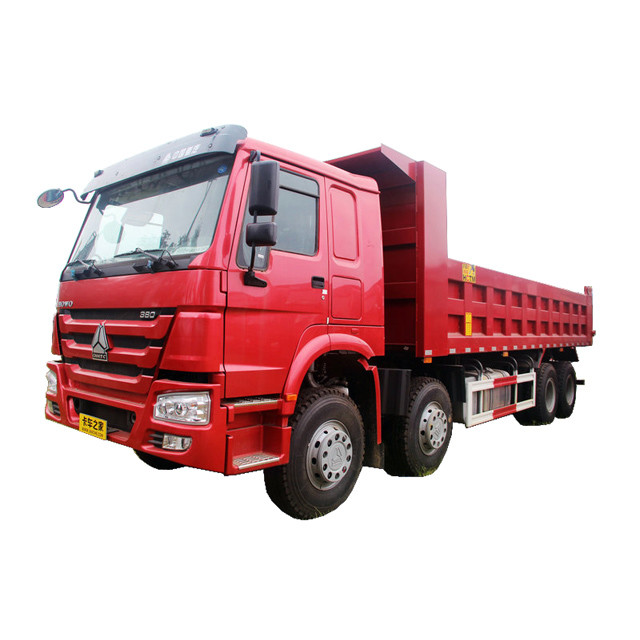

HOWO 8x4 12 wheeler drive 371/420 hp Heavy Duty Mining Dump/Tipper Truck For Transporting sand stone ore ZZ3317N3067W
Product Specification
| SINOTRUK | ZZ3317N3067W | |
| Traction type | LHD | |
| Drive System | 8×4 | |
| Cabin | HW76 Cabin, One sleeper, Air Conditioner | |
| Engine | Brand | SINOTRUK |
| Model | WD615.47 EuroII | |
| Rated power | 371hp | |
| Engine displacement | 9.726 liters | |
| Gearbox | HW19710 | |
| Clutch | 430 Diaphragm type | |
| Steering | ||
| Axle | Front | HF9 |
| Rear | HC16, double reduction , ratio:5.73 | |
| Max. running speed (km/h) | 75 | |
| Tire | 12.00-20 | |
| Fuel tank | 300L | |
| Kerb weight (kg) | 14930 | |
| Total mass (kg) | 31000 | |
| Wheel base (mm) | 1800+3000+1350 | |
| Overhang (mm) (front/rear) | 1500/1670 | |
| Track (mm) (front/rear) | 2022/1830 | |
| Approach / departure angle(°) | 19/26 | |
| Dimensions(L*W*H)(mm) | Overall | 9445×2496×3453 |
| Dump body | 6500x2300x1500 | |
| Thickness (mm) | Floor 8mm,front 6mm,side 4mm | |
| Hydraulic lifting system | Front lifting | |
Description:
HOWO brand. now is the hot sales brand of overseas market, the popular model is with 18m³, 20m³, 30m³ dumper bucket capacity using in road project solution, mining site , and other urban construction etc.SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Applications:
It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.
Competitive Advantage:
1. Warranty: one year
2. Production time: within 35 working days
3. Shipping: we have logistic team, can cargo your truck fast and safety.
4. Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
(All pictures are for reference only.)
