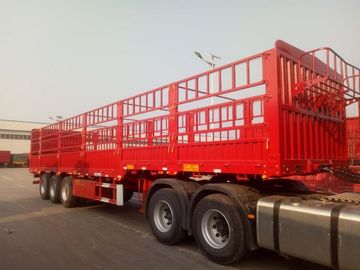

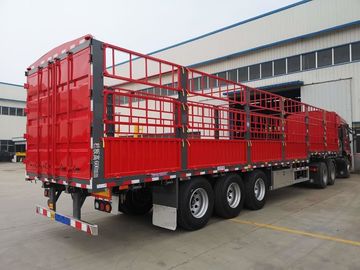

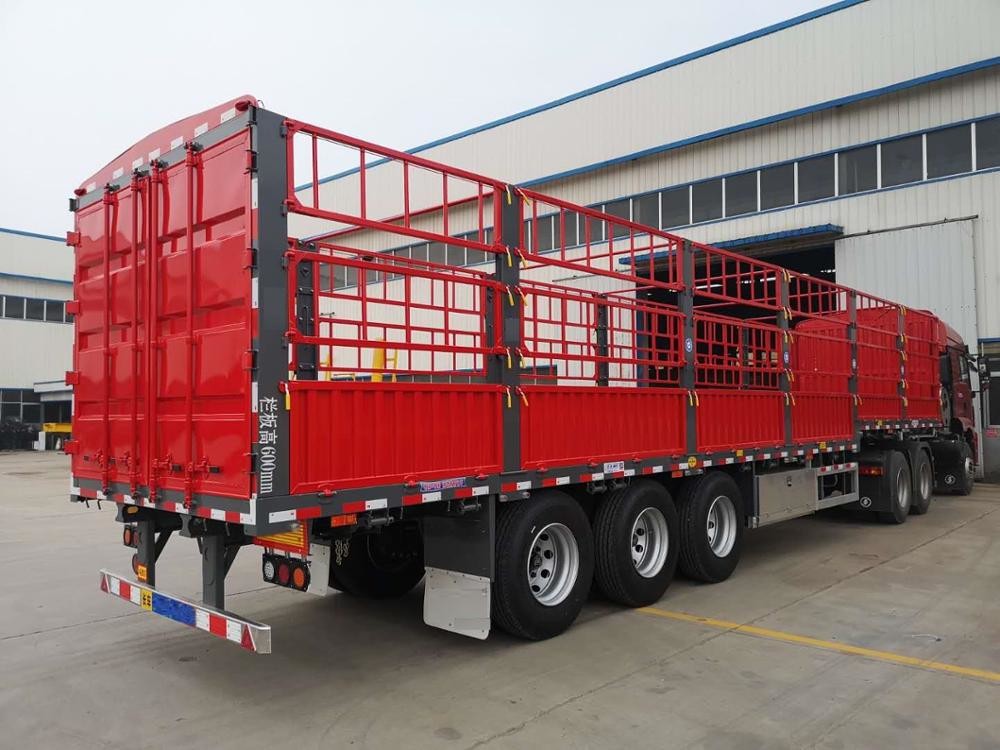

Axles Pig Transport Horse Carriage Fence Semi Trailer Customized Size

Axles Pig Transport Horse Carriage Fence Semi Trailer Customized Size

  • Axles Pig Transport Horse Carriage Fence Semi Trailer Customized Size
  • Axles Pig Transport Horse Carriage Fence Semi Trailer Customized Size
  • Axles Pig Transport Horse Carriage Fence Semi Trailer Customized Size
Axles Pig Transport Horse Carriage Fence Semi Trailer Customized Size
Product Details:
Place of Origin: Shandong, China
Brand Name: Lu Jun
Certification: ISO9001, CCC
Model Number: 3/4 axles 40ft fence semi trailer
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Nude
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 400 Unit/Units per Month
Contact Now
Detailed Product Description
Type: Semi-Trailer, Flatbed Semi Trailer Material: Steel
Axles: 13T 16P, 1-4 Pcs Suspension: Mechanical / Air / Single Point Suspension
Twist Locks: 4, 8, 12pieces Max Payload: 65T
Tire: 12R22.5 Or 12R20
High Light:

diesel semi trucks

,

low bed semi trailer

3/4 Axles 40ft Side Wall Semi Trailer Flat Bed Mini Enclosed Cargo Dump Truck Trailer




Quick Details

Use:Truck Trailer

Type:Semi-Trailer, Flatbed Semi Trailer

Material:Steel

Certification:ISO9001, CCC

Size:12400*2500*2700

Max Payload:65T

Place of Origin:Shandong, China

Usage:Truck Trailer

Product name:3/4 axles 40ft fence semi trailer

Axles:13T 16P, 1-4 pcs

Axle Brand:BPW / FUWA / Yonglitai / Huajin etc.

Suspension:Mechanical / air / single point suspension

Color:optional

Landing Gear:Standard 28Ton, JOST / FUWA etc.

Tire:12R22.5 or 12R20

Twist Locks:4, 8, 12pieces





Supply Ability

Supply Ability:

400 Unit/Units per Month

Packaging & Delivery

Packaging Details

Shipped by RO-RO / container / bulk cargo carrier.
PS: 3 or 4 stack up when transported by bulk cargo carrier.
PS: 2 or 3 units in one 40' container

Port

any port of China

Lead Time :

Quantity(Pieces) 1 - 10 >10
Est. Time(days) 30 To be negotiated



Product Features:
1. Carry all kinds of cargo:
(1) wood, sand, stone, cement, equipment etc;
(2) 20ft or 40ft container (twist locks can setting 8 pcs or 12 pcs).
(3) non-removable big size objects in factory / construction site.
2. Size can be customized.
3. Can load more cargo.
4. Type: straightness or high-gooseneck or low-gooseneck type
5. With lower center of gravity, more steady especially at high speed



Product Description



Overall Dimension(L*W*H) 12400*2500*2700 / 13000*2500*2900mm
Tare Weight 7500KG
Loading Weight 65000KG
Axle 13T 3/4 pcs, BPW or FUWA or Yonglitai or Huajin Brand
Leaf Spring 90*13-10 6/8 sets, Funiu or Taiyue etc.
Suspension system Mechanical Suspension / air suspension / single point suspension (Germany Type or America Type or Japan Type)
Main Beam The height of the beam is 500mm, upper plate 14mm, down plate is 16mm, middle plate is 6/8 mm, Material is Q345 Carbon Steel
Side Beam 14#/16# channel steel (Q235)
Cross member 8#/10# channel steel (Q235)
Platform plate 3mm checker Plate or flatbed
Side wall Height 600mm / 800mm
Front board Height 1150mm/1350mm
Container Twist Locks Twist lock optional upon choice (8 pcs or 12pcs)
Tire Type and quantity 12R22.5-18 12units
Steel Rim 9.00-22.5 12Units
Tool Box 1 tyre spanner, 1 gudgeon sleeve and 1 cranking bar
Traction Pin
2"(50mm) or 3.5"(90mm)
Spare Wheel Bracket
1 piece
Landing Gear
Standard 28Ton, JOST or FUWA etc.
Brake system WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two pieces of 40L air tanks, ABS available
Electrical system 1. Voltage: 24V, LED lights
2. Tail lamp with turn signal, brake light & reflector, side lamp etc.
3.Receotacle: 7 ways (7 wire harness)
Painting customize
other Can add Mid & Rear Side protection, 24 pcs D-rings, need 11 or 13 doors at the side wall
