| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO/CCC |
| Model Number: | ZZ4257S3241W |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Unit/Units per Month |
| Drive Wheel: | 6x4 | Emission Standard: | Euro 3 |
|---|---|---|---|
| Fuel Type: | Diesel | Size: | 6985X2496X3230 |
| Color: | Optional | Gear Box: | HW19710 |
| Horsepower: | 351 - 450hp | Total Vehicle Weight: | 25000 |
| High Light: | diesel tractor truck,tractor head truck |
||
SINOTRUCK 6X4 Trailer Head 10 Wheelers Tractor Truck 371Hp Optional Color Euro 3
Product description
A tractor used for hauling and pushing heavy trailers. It is equipped with a high-power diesel engine, and equipped with a high speed ratio of mechanical or hydraulic transmission and main reducer. Some also have wheel-side deceleration devices to reduce speed and increase traction.
In general, heavy-duty trailers are tracted by only one tractor; in the case of large slope, large bend and heavy cargo, two tractors can be used for traction, or one is in front of the tractor and one is pushed back; sometimes, more than one tractor is used for traction and pushing.
Product Parameter
| 6x4 Tractor Truck | ||
| Cab | Model | HW76/HW79 |
| Type | Extended cab/high roof cab, single berth, up/down adjustable steering wheel, VDO instrument and control module, safety belt with double locking mechanism, exterior sun visor | |
|
Engine |
Model; |
WD615 Engine/D10Engine/D12 Engine
|
| Rate Power kW/rpm |
213/2200-308/2200
|
|
| Horsepower | 266HP-420HP | |
| Displacement L | 9.726(WD615/D10)/11.596(D12) | |
| Type | Inline 6 cylinders, supercharged intercooling, 2 valves and rear supercharger for D10/WD615 engine, 4 valves and central supercharger for D12engine | |
| Clutch | Φ430diaphragm spring clutch, hydraulic control air power assisted. | |
| Transmission | Sinotruk HW series 10/12 speed transmission, main and auxiliary transmission structure, main transmission with double countershaft, auxiliary transmission with planetary reducer. | |
| Front Axle | HF7, 7T axle/HF9, 9t axle | |
| Rear Axle | MCY13, 13T axle/HC16 double reduction, 16t axle | |
| Suspension | Front and rear leaf spring suspension + shock absorber + transverse stabilizer | |
| Steering system | ZF8118 steering gear, ZF steering oil pump | |
| Brake system | Service brake: dual-circuit pneumatic brake; Parking brake: energy storage spring cutoff brake; Auxiliary brake: engine exhaust brake. Standard engine ABS, optional engine EVB and automatic slack adjuster | |
| Electrical system | Voltage:24V; Generator: 1540W; Starter: 24V, 7.5W; Battery: 12V/165Ah, 2 pieces | |
| Tyre | 295/80R22.5, /315/80R22.5, /11.00-20/12.00-20/11.00R20/12.00R20 tyre brand optional | |
| Oil Tank Volume L | 400 | |
| Curb Weight kg |
12360/12010
|
|
| Load Capacity kg |
12510/12860
|
|
| Wheel Base mm |
3225+1350
|
|
| Front/Rear Overhang mm |
1500/1859,1500/1559
|
|
| Min. Ground Clearance mm |
314
|
|
| Max Speed km/h |
78
|
|
| Option | All wheel(6x6 tractor truck) | |
Our Advantage
Trust: Audited supplier of Made in China about 10 years.
Price: Factory of SINOTRUK Group, providing you more competitive factory price. And the minimum quantity is one unit.
After-sales service: Engine, axle and the transmission enjoy one year or 100 000km warranty for tractor truck, semi trailers, ect. In Tanzania and Kenya, we have our local agents, in other countries we go to business trips about 5 times per year to solve your problem ASAP.
Spare parts: All spare parts are available for you. Before the shipment, we give you the list of spare parts to assure you can purchase the relative spare parts in your country, and you may purchase the original spare parts from us with lowest price.
Shipment: Cooperating with international vessel company to assure your trucks shipment peacefully and successfully.
Fast Delivery: We can produce the trucks as soon as you finish your order. Our large supply capacity of 50000 UNITS per year can assure to meet your requirements. Our all trucks will be available at any time.
ur hotline is available at any time.

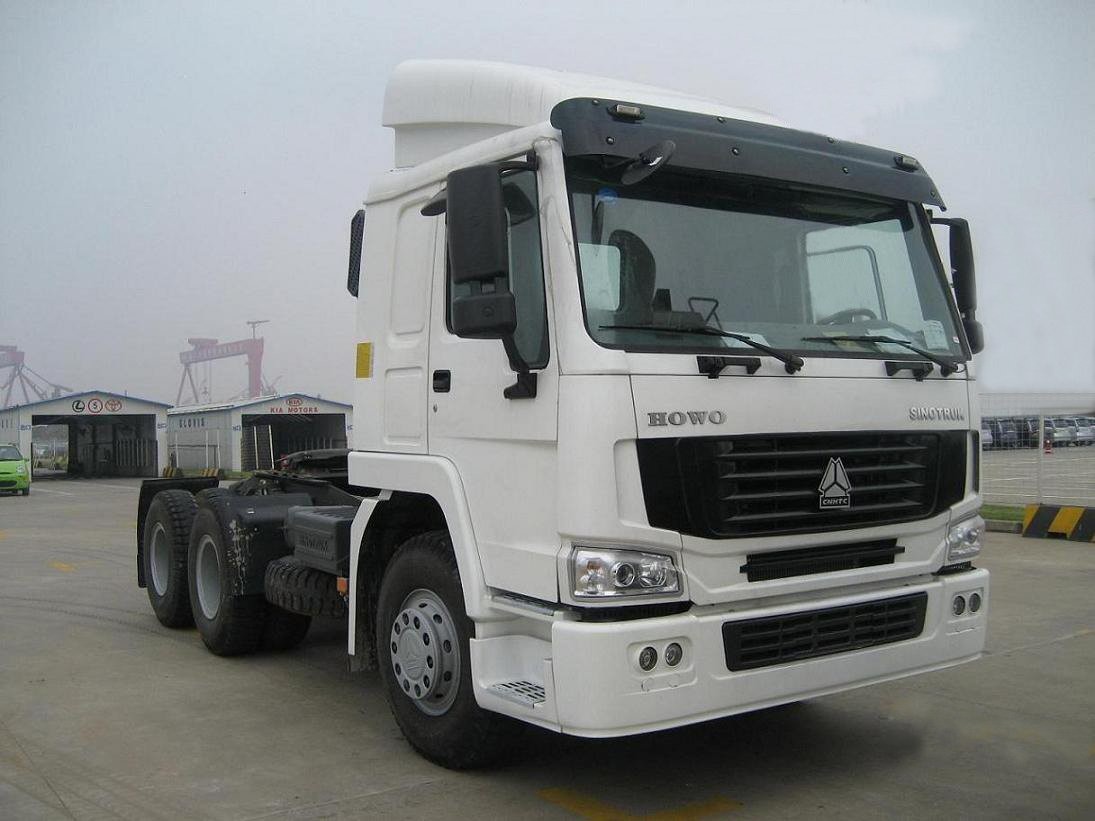

Product picture
