| Place of Origin: | China (Mainland) |
| Brand Name: | SHANTUI |
| Certification: | CE,ISO |
| Model Number: | SP90Y |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negotiable |
| Packaging Details: | nude with wax painted |
| Delivery Time: | 100sets/month |
| Payment Terms: | L/C, T/T |
| Model Number: | SP90Y | Brand Name: | SHANTUI |
|---|---|---|---|
| Dimensions: | 4750*3700*3360mm | Fuel Tank Capacity: | 550L |
| Boom Length: | 8.6m | Rated Power: | 257kw |
| High Light: | road work equipment,road construction vehicles |
||

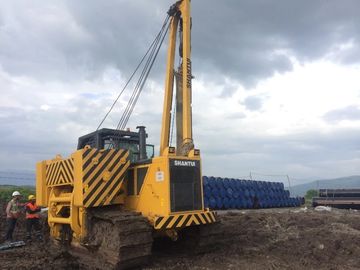

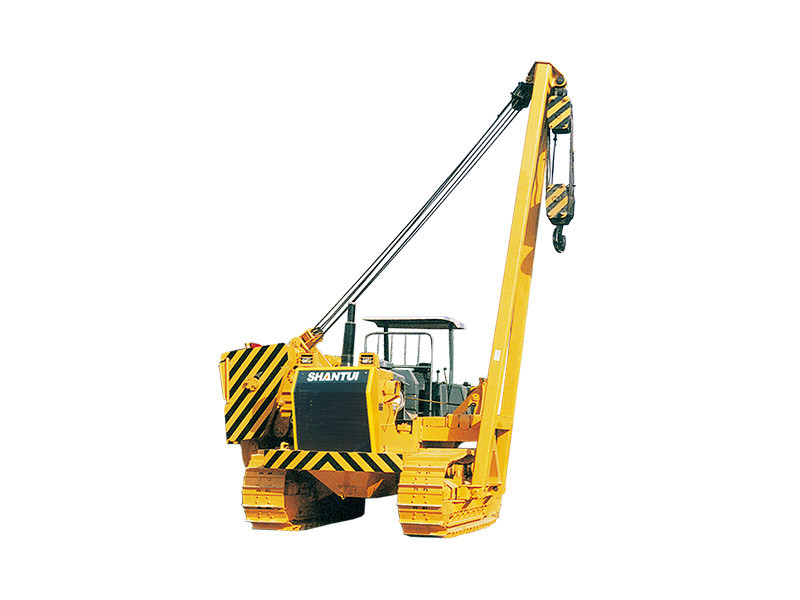

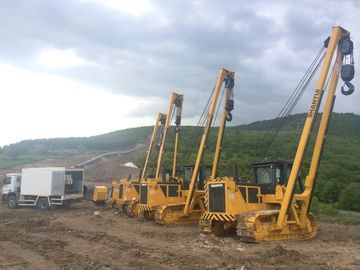

90 TON Shantui Brand PIPELAYER/Full Hydraulic Sideboom/Pipeline Transport Hoisting Machinery
Place of Origin:Shandong, China
After-sales Service Provided:Engineers available to service machinery overseas
Engine:NTA855
machine model number:SP90Y
Lifting capacity:90ton
condition:new
dimensions:4750*3700*3360mm
Fuel tank capacity:550L
Pump type:Duplex
Boom length:8.6m
rated power:257kw
Product Description
Delivering ultimate power, lift and value, the SP90Y features a engine, load feedback, overload prevention, anti-rollover protection and precise controls. Our first offering for larger loads.
Engine model: NTA855-C360S10
Operating weight of whole machine: 55000kg
Maximum lifting capacity: 90t
Shantui pipe layer is a product released by Shantui on the basis of integrating all advanced technologies of pipe layer products both home and abroad and sufficiently researching the market.
The whole machine feature high strength, high stability,and beautiful appearance.
The hook rod winch and working hydraulic system adopt joint venture products or imported products.
The pilot control mode is adopted for the operations of hook rod winch and counterweight.
The four-link counterweight structure is adopted.
Optional air conditioned cab is available.
The corresponding measures are taken in consideration of diversified environment adaptabilities.
The working device and the counterweight feature good disassembling and assembling performance.
Piplayer is an important construction machine for laying large-caliber petrolum or natural gas pipelines, connecting their ends and doing ditch work.
PRODUCT SPECIFICATION
| Overall dimensions (Length × Width × Height) | 5630×5726×9215mm | Operating weight of whole machine | 55000kg |
| Engine model | Cum mins NTA855-C360S10 | Maximum lifting capacity | 90t |
| Maximum lifting height | 7000mm | Boom luffing range | 1.2-7.2m |
| Boom length | 8.6m |
