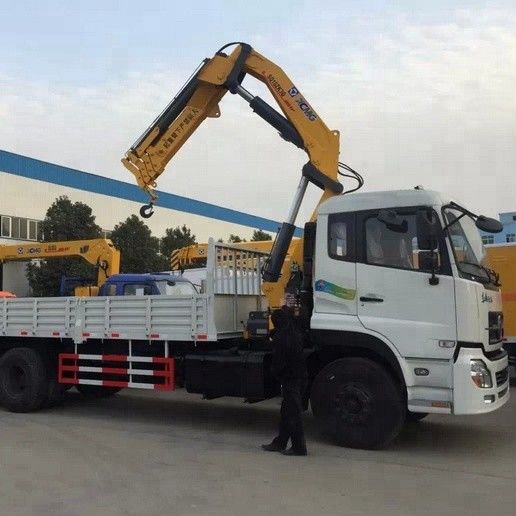

SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm

SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm

  • SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm
  • SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm
  • SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm
SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm
Product Details:
Place of Origin: CHINA
Brand Name: XCMG
Certification: ISO9001
Model Number: SQ10ZK3Q
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: NEGOTIABLE
Packaging Details: NUDE
Delivery Time: 15-45DAYS
Payment Terms: L/C, T/T
Supply Ability: 100 Unit/Units per Month
Contact Now
Detailed Product Description
Max. Lifting Height: 2-9.75m Rated Lifting Moment: 20T.M
Place Of Origin: Jiangsu, China Span: 2-9.75m
Oil Tank Capacity: 160L
High Light:

truck mounted hydraulic crane

,

telescopic boom truck mounted crane

XCMG SQ10ZK3Q 10T Knuckle Boom Crane with Dongfeng 6*2 10T Truck Mounted Crane Folding Arm



Product Quick Details:



Max. Lifting Height:2-9.75m

Warranty:1 Year

After-sales Service Provided:Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts, Engineers available to service machinery overseas

Feature:Truck Crane

Condition:New

Application:Construction

Rated Loading Capacity:0-10000kg

Rated Lifting Moment:20tm

Span:2-9.75m

Place of Origin:Jiangsu, China

Brand Name:canmax

Certification:ISO

Product name:Truck mounted crane

Oil Tank Capacity:160L

swivel angle:360 °

Recommend Power:30kw

Max elevation:75DEGREE

Lifting height:13000mm

Installation space:1150mm



Product description



XCMG Truck mounted crane is a kind of hydraulic lift and telescopic system to achieve the goods up and down, rotation, lifting equipment, usually assembled on the truck. Generally by the truck chassis, cargo compartment, take power, crane composition.

1, advanced R & D and analysis means to ensure design reliability.

2, four-link mechanism, lifting capacity stronger.

3, flange telescopic arm connection structure.

4, independent research and development of the rotating body, with a strong driving force, may meet more demand conditions.

5, hexagonal boom technology, good for neutral, cross-section bending ability.

6, the unique floating three-point bridge structure design, effectively reduce the vehicle running when the chassis beam bear the additional force.



1.Throttle Control System
Changing the form of previous manipulation and throttle operation individually,Realization of the bilateral handle synchronous and driving throttle acceleration and deceleration automatically, due to the speed change steady,it can easily to carry out the lifting work.

2.End position automatic hook device
Maximum savings in preparation time before and after operation, to ensure that customer's vehicle could be in a driving state in the shortest time, and prevent crane damage accident caused by hoist swing to enhance the safety of driving.

3.Hoisting overwinder device
If a user is negligent or unfamiliar with the operation of lifting hooks,the hoisting overwinder device will stop hook raise in time, to prevent the safety of personal and property caused by fracture of wire rope.

4.Slewing locking device
Slewing locking device can ensure that the lifting arm does not sway because of the centrifugal force during the driving and steering process of the vehicle,to avoid all kinds of accidents caused by swaying.


5.Torque limiter
It can select torque limit overload protection device to prevent users because of negligence or unfamiliar with the lifting operation principle of overload operation, thereby causing the vehicle rollover and crane damage accidents.






Why choose us?



Factory

We have own factory and skilled worker, rich-experienced design team and responsible QC and good after sales service.



Quality and Price

We are strictly control quality from raw material to finished products. And ensure high quality of your required products. Also we manage to control the cost and save every penny for your party.



Amount

We can provide various kinds of special truck and trailer, various machinery for your choices. Also, we can customize per your specific requirements.



Your Model

Our design team can design per your specific text description and reference design.



Of the Public Accounts

All the payment will be received by our company bank account. Also all the transaction by monitored by union pay.



Convenient Transportation

We cooperated with efficient logistics. Which ensure the goods can be reached you timely. And win much more time for your party.



Choose

All the discussion and terms will be showed in our contract. Which ensure your interests legally. Also welcome to visit us at any time.



Pre-consultation

Please contact us before you place order, or need any technical support or guildance.

Specialty

We have careful sales and merchandiser, own factory and long term cooperated logistics, and after-sales worker.



Commissioner

We have patient and efficient pre-sales worker, and considerate after-sales workers. Who do best for your party.



All The Time

We are standing by 24 hours. Including public holidays.



 Product Specification:



Dimension Parameter
Overall dimension (L*W*H) (mm) 12000*2490*3800
Cargo dimension (L*W*H) (mm) 8300*2300*550
Wheel base (mm) 1950+4750
Wheel No. 3
Front / Rear track (mm) 1940/1860
Weight Parameter
GVW (kg) 25000
Payload weight (kg) 12455
Kerb weight (kg) 12250
Front / Rear axle (T) 5T / 10T
Engine Parameter
Model B190 33
Manufacturer Dongfeng Cummins
Horsepower (hp) 190
Displacement / power (ml/kw) 5900/140
Engine type 6 cylinder in-line, inter-cooling
Emmission Standard Euro III
Transmission
Control type manual
Gear Shift 8 forward and 1 reverse speeds
Tyre
Type 10.00-20
Tyre No. 10+1 spare tyre
Cab
Type flat roof cab, blue color
10T Knuckle Boom Crane Specification
Crane Model:SQ10ZK3Q Max Lift Capacity: 10000kg
Max Lift Moment: 20T.M Power Recommended: 28kw
Max Flow of Hydraulic System: 40L/Min Rated Pressure of Hydraulic System:30MPA
Oil Tank Capacity: 160L Slewing Angle: All Rotation
Crane Weight: 3477kg Installation Space: 1150mm
Lifting height: 13m working radius: 9.75m
Working radius (m) 2 4.17 5.99 7.87 9.75
Lifting capacity (kg) 10000 4600 3050 2280 1700





SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm 0SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm 1SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm 2SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm 3SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm 4SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm 5SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm 6SQ10ZK3Q 10T Knuckle Boom Truck Crane With Dongfeng 6*2 10T Folding Arm 7
