| Place of Origin: | CHINA |
| Brand Name: | HOWO |
| Certification: | ISO/CCC |
| Model Number: | ZZ3257N3647A |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units/month |
| Model: | ZZ3257N3647A | Cargo Body Size: | 5600x2300x1600 Mm |
|---|---|---|---|
| Horsepower: | 371HP | Wheel Base: | 3625+1350mm |
| Loading Weight: | 25 Ton | Lifting System: | Middle Lifting |
| High Light: | heavy duty tipper trucks,construction dump truck |
||

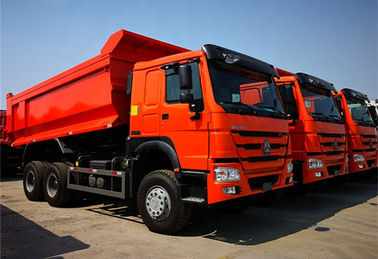

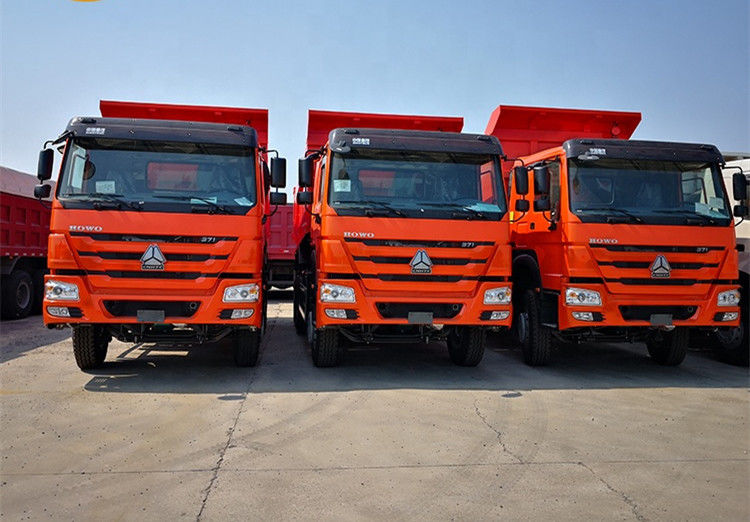

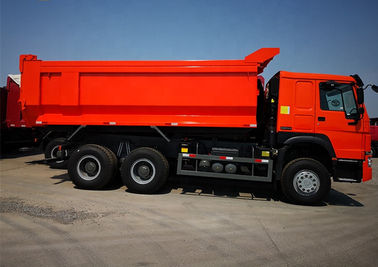

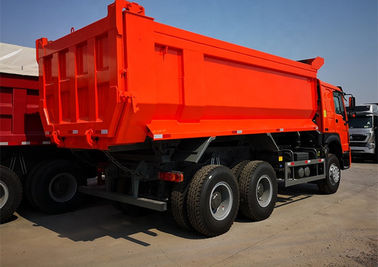

ZZ3257N3647A 6X4 371HP U-Shape Heavy Duty Tipper Trucks With Middle Lifting System
Description:
HOWO brand Dump Truck is produced by SINOTRUK.The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.The engine adopt 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.
Competitive Advantage:
1. Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel
2. EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.
3. Adopting full hydraulic transmission, it can bring the power of engine into full play amply.
4. Technique support and training.
5. Customization service, as per your request, we will customize our production for you
| Type | HOWO dump truck |
| Model | ZZ3257N3647A |
| Overall dimension | 8214x2496x3450 mm |
| Cargo body size | 5600x2300x1600 mm |
| Cargo thickness | Bottom:8mm, Side:6mm |
| Lift type of Carriage | Middle lifting or fornt lift |
| Loading weight | 25 ton |
| Wheel base | 3625+1350mm |
| Drive model | 6x4 |
| Emission | ERUO2 |
| Horsepower | 371HP |
| Front axle | HF9 |
| Rear axle | HC16 |
| Tyre | 12.00R20 |
| Oil tank | 400L |
| Cab | HW76 cab, single sleeping, with air-condition), all-steel forward control, 70° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
| Color | black |
| Steering | ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving) |
| Brake system |
Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
| Electrics |
Operating voltage:24V,negative grounded 24V,7.5KW.Starter:24V,7.5 Kw 28V,1500W.Alternator:3-phase,28V,1500 W 2x12V,165Ah.Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
