| Place of Origin: | China |
| Brand Name: | SINOTRUK HOWO |
| Certification: | ISO9001 |
| Model Number: | ZZ1257N4341W |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed in nude |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500sets per month |
| Chassis Model: | ZZ1257N4341W | Driving Type: | 6X4 |
|---|---|---|---|
| Overall Dimension(mm): | 10200*2500*3730 | Burner: | G20 (from Italy) |
| Control Method: | Automatic Controlled One By One | Heating Model: | Thermal FuelAutomatic Heating |
| High Light: | road work equipment,road construction vehicles |
||
HOWO 6X4 Driving Type Gravel Synchronous Chip Seal Truck 336 hp
Product description
Gravel Synchronous Chip Seal Truck is developed by our company on its own design, with independent intellectual property rights of the synchronous gravel sealing machine, the machine is in the same model of synchronous gravel has been improved to make it even worse Conditions of construction operations, enhance the stability of equipment operation. Reached the machine, electricity, liquid integrated operation, equipment operation process is simplified, simple operation, the whole machine has reached the advanced world level.
Product parameter
| Truck Specification | |||
| Chassis model | ZZ1257N4341W | ||
| Cab | HOWO single row cab, with power steering. Electronic flameout,without a/c | ||
| Driving Type | 6*4 Left hand driving | ||
| Max Speed (km/h) | 95 | ||
| Overall dimension(mm) | 10200*2500*3730 | ||
| GVW( kg) | 25000 | ||
| Mass in working order ( kg) | 17370 | ||
| Tank Capacity (L) | 8000 | ||
| Wheelbase(mm) | 4325+1350 | ||
| F/R track base (mm) | 2022, 2041, 1830/1830 | ||
| F/R overhang (mm) | 1500/1945, 1920 | ||
| Approach/Departure Angel | 16/23 | ||
| Tire | 12.00R22.5 | ||
| Clutch | Single-plate dry diaphragm spring clutch | ||
| Steering | Hydraulic steering with power assistance | ||
| Bridge | Front axle | Hf9 | |
| Rear axle | Hc16 | ||
| Engine | Model | WD615.69 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled four-stroke,, direct injection, turbocharged | ||
| Exhaust(ml) | 9726 | ||
| Max output power/rotate speed (hp /rpm ) | 336 | ||
| Braking system | Service Brake | Air over hydraulic dual circuit system | |
| Park Brake | Mechanical, internal expanding acting on transfer output shaf | ||
| Eletric system | 24v | ||
| Upper-Body specification | |||
| Asphalt tank Total Volume(L) | 6000 | ||
| Chippings bucket Total Volume(L) | 10000 | ||
| Insulating layer thickness (mm) | 80 | ||
| Hydraulic pump | 50-20-16 | ||
| Proportional valve | Taiwan EFBG-03-160-HF | ||
| Asphalt pump | QGB680 | ||
| Hydraulic motor for asphalt pump | 05-110-BD31 | ||
| Heating System | Italian burner Riello (G20) | ||
| Heat-transfer oil pump | 40-25-160 | ||
| Control System | SIEMENS CLW-32-01 | ||
| Generator | 5.5KW gasoline engine generator | ||
| Number of nozzle | 32 | ||
| Spray medium | Hot asphalt/ Hot modified asphalt/ Cutback asphalt/ Emulsified asphalt | ||
| Spray width(m) | 4 | ||
| Spray amount(L/m2) | 0.3-3.5 | ||
| Working Condition | 1,Altitude 0-4500m | ||

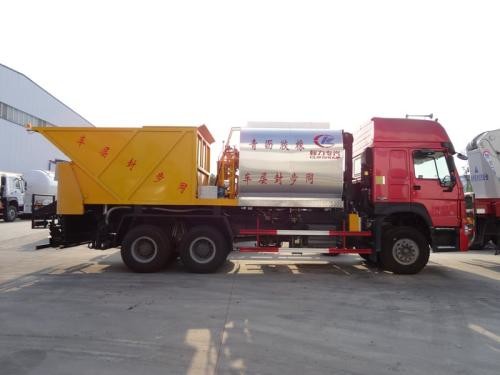

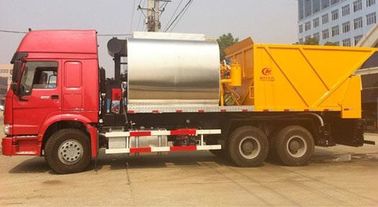

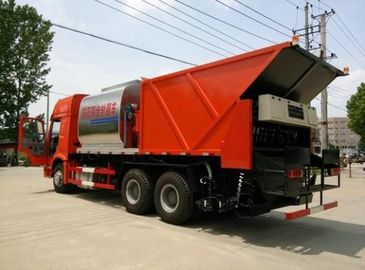

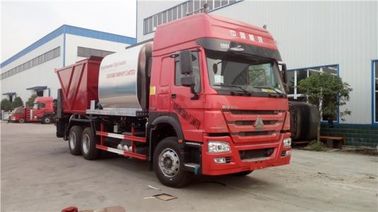

Product Pictures
