| Place of Origin: | China |
| Brand Name: | SINOTRUK HOWO |
| Certification: | ISO9001 |
| Model Number: | CLW5251TFCZ5 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed in nude |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500sets per month |
| Condition: | New | Name: | Asphalt Slurry Seal Truck |
|---|---|---|---|
| Model: | Hydraulic Paver | Production Capacity: | 9-12m/min |
| Asphalt Tanker Capacity: | 3000L | Dimension(L*W*H): | 10900*2500*3550mm |
| High Light: | road work equipment,road construction vehicles |
||
HOWO 6X4 drive type asphalt slurry seal truck with 8m3 Aggregate Bin
Sino truck Howo 6x4 asphalt Slurry seal truck
howo 6x4 asphalt slurry seal truck is also known as a micro-surfacing paving truck, is a road maintenance truck. It is mainly used for new asphalt pavement’s functional layer construction (up-sealing layer and sub-seal coat), and all grades old asphalt pavement’s maintenance construction (slurry seal, micrometer) and wheel ruts repair. By pouring durable asphalt mixture (asphalt + water + aggregate + padding + additives) to pavement, can provide a thin layer mask to road surface, effectively close road, separate surface cracks from water and air, prevent pavement aging. After repairing with slurry, road is smooth and easy to drive.
Product Notes:
1. Paving width is 2.4-4.3 m, paving thickness is 5-15mm,paving width and thickness can be adjusted easily.
2. Independent high-power engine, providing strong motivation, better suited to micro-surfacing construction.
3. Use hydraulic power to control mixer angle, can meet different slope construction.
4. All systems of aggregate, padding, water, asphalt and additives are equipped with monitoring and measuring elements.
5. spreader mechanism: front and back, left and right is complete symmetry, double head, retractable, large diameter ,four helix, ensure the quality of spreading.
6. During the paving process, the spiral direction and speed can be adjusted, to realize non-dead Angle, no segregation paving and the second stirring.
Main Parameter of howo 6x4 asphalt slurry seal truck:
| Vehicle Main Dimensions | Cab type | HOWO flat proof cab, single sleeper,air conditioning |
| Overall dimension(L×W×H)(mm) | 10900X2500X3550mm | |
| Axle number | 3 | |
| Steering type | Left Hand Drive or RHD with power steering | |
| Max. Drive Speed (km/h) | 80 | |
| Curb weight (kg) | 17000 | |
| Chassis parameter | Chassis manufacturer: | cnhtc |
| Model | ZZ1257N4347E1 | |
| Transmission | Manual ,10 forward and 2 reverse | |
| Power-take-off(PTO) | Full power PTO | |
| Brakes | air brake | |
| Tire | 12.00R20 with 1 spare tire | |
| Engine parameter | Engine manufacturer | cnhtc |
| Model | D10.34-50 | |
| Fuel type | Diesel | |
| Horse Power(kw)/(hp) | 249kw/339hp | |
| Displacement(ml) | 9726ml | |
| Emission Standard | Euro 3/4/5 | |
| Superstructure Parameter | spraying medium | mixture of asphalt + water + aggregate + padding + additives |
| Asphalt Tank | 3000L | |
| Water Tank | 3500L | |
| Stone box | 12000L | |
| padding box | 1000L | |
| auxiliary tank | 400L | |
| Paving width: | 2.5-4.3m | |
| Paving thickness | 5-15mm | |
| Minimum construction speed | 1km/h | |
| Hydraulic system | Made in America | |
| Auxiliary engine | 140hp cummins diesel engine |

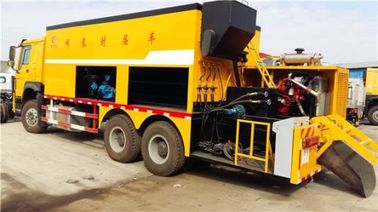

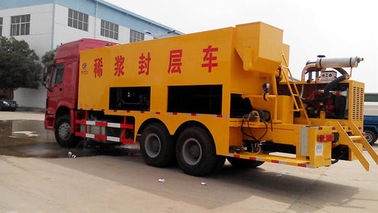

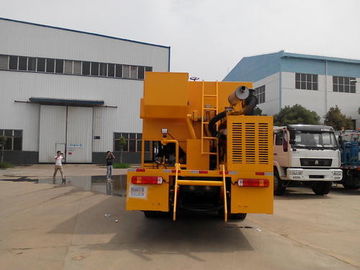

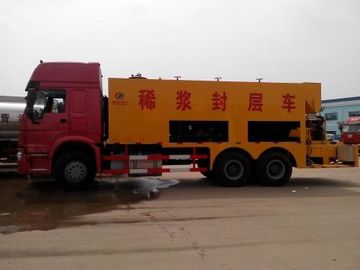

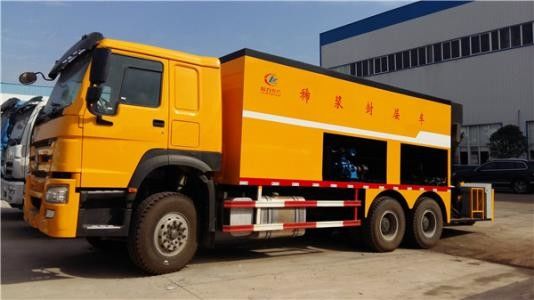

Detail Pictures
