Self Loading 1.8cbm Concrete Cement Mixer Truck With CBGV-4025 Pump

Self Loading 1.8cbm Concrete Cement Mixer Truck With CBGV-4025 Pump

  • Self Loading 1.8cbm Concrete Cement Mixer Truck With CBGV-4025 Pump
  • Self Loading 1.8cbm Concrete Cement Mixer Truck With CBGV-4025 Pump
  • Self Loading 1.8cbm Concrete Cement Mixer Truck With CBGV-4025 Pump
Self Loading 1.8cbm Concrete Cement Mixer Truck With CBGV-4025 Pump
Product Details:
Place of Origin: China
Brand Name: LC
Certification: ISO/CCC
Model Number: LC
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500 pieces/month
Contact Now
Detailed Product Description
Power(W):: 65kw Weight:: 6000KG
Dimension(L*W*H):: 6500*2340*2700 Mm Maximum Pressure:: 20MPa
Geometric Capacity Of The Drum:: 3200L Condition:: New
High Light:

truck mounted concrete pump

,

mobile cement mixer trucks

4x4 Self Loading Mobile 1.8cbm Concrete Cement Mixer Truck With CBGV-4025 Pump



Product description



Self- loading mobile concrete mixer truck, suitable for various special environments, congested urban areas and remote areas. It can be used for concrete road maintenance, bridge tunnel construction, township highway construction, national defense facility base construction, high-speed railway construction. Maintenance and other special concrete structures away from commercial concrete mixing plants provide customers with the best solution for mixing and pouring concrete. At the same time, the equipment is user-selectable in addition to commercial concrete mixing stations and fixed mixers. Another high-efficiency, low-cost concrete mixing operation to replace commercial concrete mixing plants or stationary mixers.



Packing:



Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.



Specification



Specification
Unit
Parameter
Actual stirring capacity
m3
1.8m3
Rotary drum capacity
m3
2m3
degree of bias
°
16
Rotation speed
r/min
0-14
Direction of rotation

Feed: Clockwise Outfeed: Counterclockwise
Mixer blade

Two spiral blades and four auxiliary blades
Concrete slump
mm
70-260
Hydraulic power Transimission System
pump model

CBGV-4025
Hydraulic Motor model

BMSS-250
Reducer speed ratio

1:10
Water supply System
Water tank capacity
L
540/Self-contained automatic water supply system
Chassis main performance parameters Engine main performance parameters
Engine model/displacement
L
CF4B68G-Z-13B2/CF4C100T-Z-13B2
Model
Direct injection four-stroke water-cooled supercharged diesel engine
rated power
kw/r/min
55KW/2400 78KW/2400
Maximum torque
N.m/r/min
255/1500-1800 380/1500-1800
Maximum travel speed
km/h
24
Minimum turning radius
mm
5000
Grade ability
%
26
Tires

23.5/70-16
Drive form

4x4
Vehicle equipment quality
kg
4580
Maximum loading quality
kg
2800
The maximum total vehicle mass
kg
7380
Overall vehicle dimensions (L * W * H)
mm
6100*1850*3000

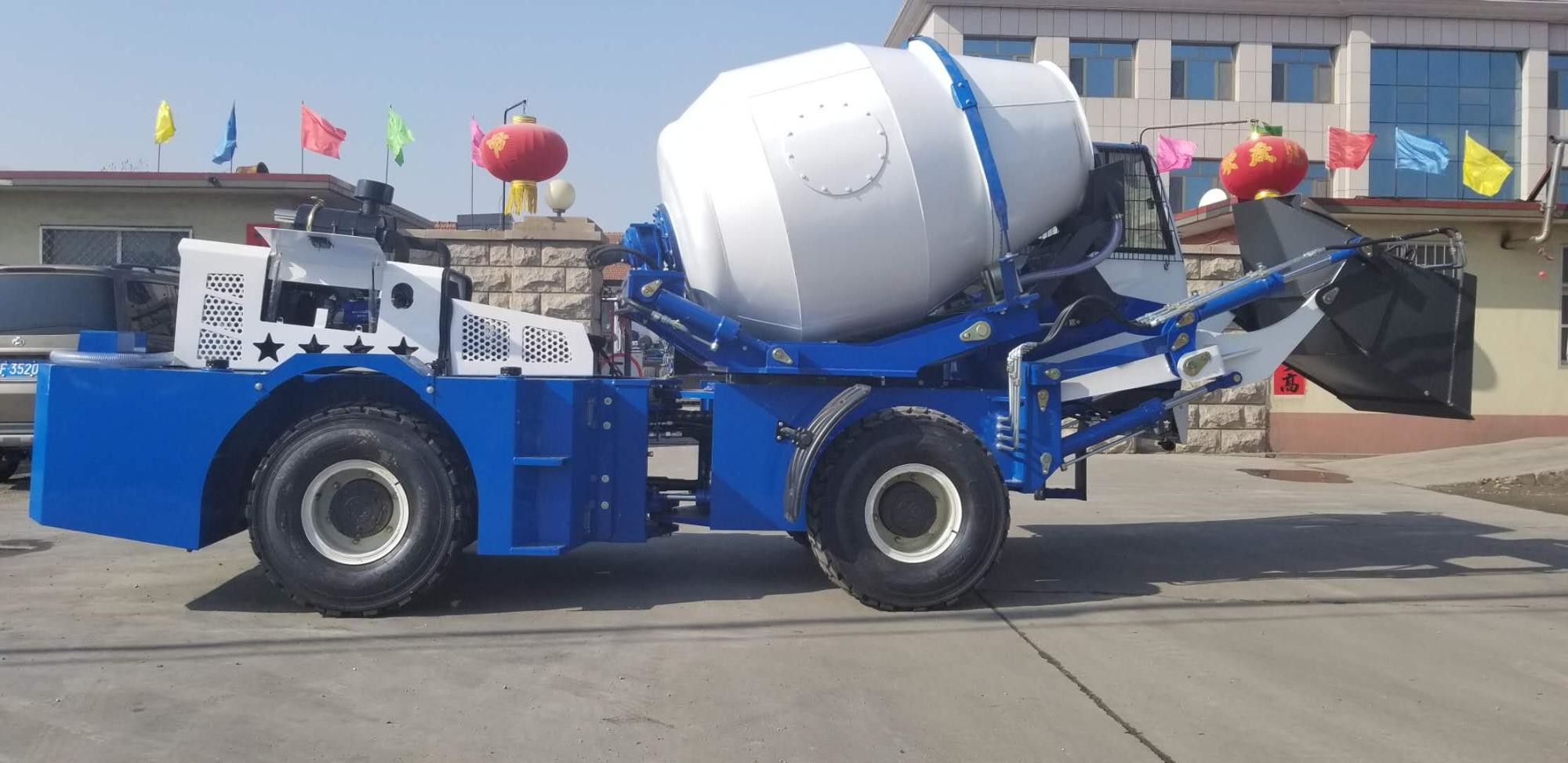

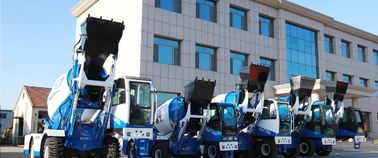

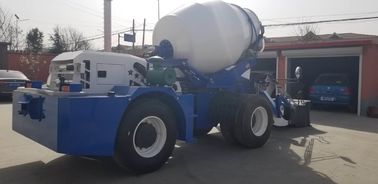

Product picture



Self Loading 1.8cbm Concrete Cement Mixer Truck With CBGV-4025 Pump 0Self Loading 1.8cbm Concrete Cement Mixer Truck With CBGV-4025 Pump 1
