| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO/CCC |
| Model Number: | ZZ3257N3247B1 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 Unit/Units per Month |
| Drive Wheel: | 8x4 | Transmission Type: | Manual |
|---|---|---|---|
| Fuel Type: | Diesel | Gross Vehicle Weight: | 31000 |
| Capacity (Load): | 31 - 40t | Emission Standard: | Euro 2 |
| Engine Capacity: | > 8L | Dimensions (L X W X H) (mm): | 9600*2500*3400mm |
| High Light: | heavy duty tipper trucks,construction dump truck |
||
Sinotruck HOWO 8x4 371hp 40 Tons Dump Truck 12 Wheeler Truck Tipper Euro 2
Product description
1. Chinese famous heavy duty chassis brand in China---Sinotruk
2. Low oil consumption with strong horse power 371hp
3. Large load capacity 40-45ton.
4. Cabin: HW70 with no sleeper bed; HW76 with one sleeper bed. HW79 with two sleeper beds. With air conditioner.
5. LHD or RHD are optional
6. Tipper body: Size could be customized as requirement.
7. One year for three key parts (engine ,gear-box, axle)
Product parameter
|
Item No. |
Parameters |
|
Overall Dimension |
11245x2496x3600 mm |
|
Gross Vehicle Weight |
37650 kg |
|
Curb weight |
14860 kg |
|
Loading capacity |
45000 kg |
|
Front axle loading capacity |
HF9, 2x9000 kg |
|
Rear axle loading capacity |
HC16, 2x16000 kg |
|
Max Driving Speed |
75 km/h |
|
Engine |
WD615.47, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
Engine horsepower |
371hp |
|
Emission Standard |
Euro II |
|
Displacement |
9.726L |
|
Gear Box |
HW19710, 10 Forwards gear & 2 reverse gear |
|
Steering Gear |
ZF 8098, power steering, hydraulic steering with power assistance |
|
Clutch |
Reinforced diaphragm clutch, diameter 430mm |
|
Fuel Tank |
400L Aluminum alloy fuel tank |
|
Cabin |
HOWO 76 Standard Cab, LHD Two seats with 1 sleeper, with air conditioner, 70° hydraulically tillable to the front. |
|
Tire |
12R22.5 Tubeless Tire , 12 pieces with one spare |
|
Brake |
Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
Dump Body Size |
Size: 8200x 2300 x 1700mm, 32m3. Q345/B High Tension Steel Dump Body, Steel Thickness: bottom 8mm, side & front 6mm, |
|
Tipping hydraulics |
Front tipping, Complete set of HYVA Brand Hydraulics System |
Advantage
1. Oil Saving--two kinds of technology route (electric control common rail and EGR), engine characteristic performance curve Improvement, entire car optimizing assembly, empty / full load switch, the latest streamline driving cab reducing wind resistance effectively, reducing self weight by 200--500kg, and etc.
2. Safety--drum brake, tubeless tire, exhaust valve brake technique application, rear axle brake shoe widening, and etc.
3. Driving comfort-- New style air bag seat, four point floating suspension with anti-roll bar, damping device for the cab, double locking seat belt, outside sun shade, drum brake solving brake sway in case of over load, and etc
4. Reliability--all the assembly has passed extremely harsh condition experiments and the verification of over 2 years in bad use condition.
5. Low application cost--large use quantity, complete service and accessory networks and low price.

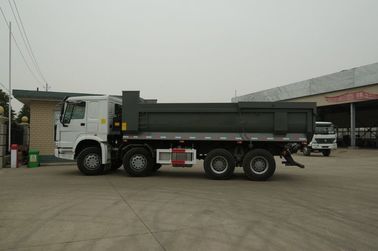

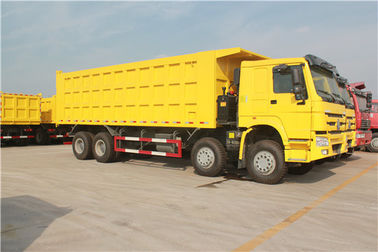

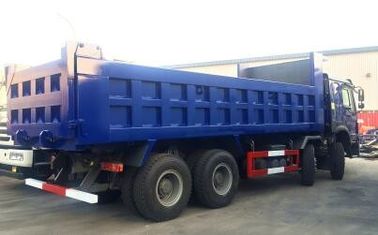

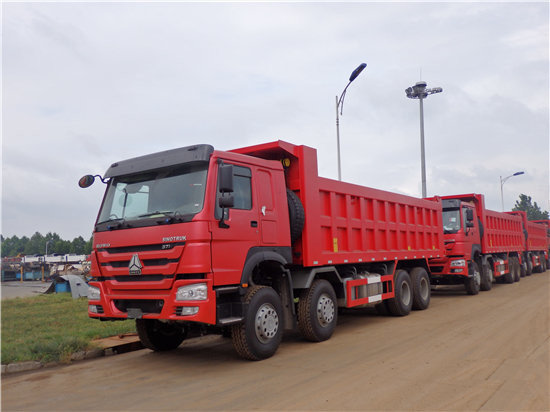

Product picture
