300m Depth Pile Drilling Machine / Deep Water Well Mud Pump Rock Drilling Rig

300m Depth Pile Drilling Machine / Deep Water Well Mud Pump Rock Drilling Rig

  • 300m Depth Pile Drilling Machine  /  Deep Water Well Mud Pump Rock Drilling Rig
  • 300m Depth Pile Drilling Machine  /  Deep Water Well Mud Pump Rock Drilling Rig
  • 300m Depth Pile Drilling Machine  /  Deep Water Well Mud Pump Rock Drilling Rig
300m Depth Pile Drilling Machine  /  Deep Water Well Mud Pump Rock Drilling Rig
Product Details:
Place of Origin: Shandong, China (Mainland)
Brand Name: Longye
Certification: ISO9000 C1
Model Number: SLY-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: nude
Delivery Time: 70days
Payment Terms: T/T, L/C
Supply Ability: 2 Set/Sets per Quarter
Contact Now
Detailed Product Description
Condition: New Voltage: 220v
Weight: 12T Chassis: DONGFENG
Usage: Water Well Dimension(L*W*H): 12160*2490*3440
High Light:

pile driving equipment

,

borehole drilling machine

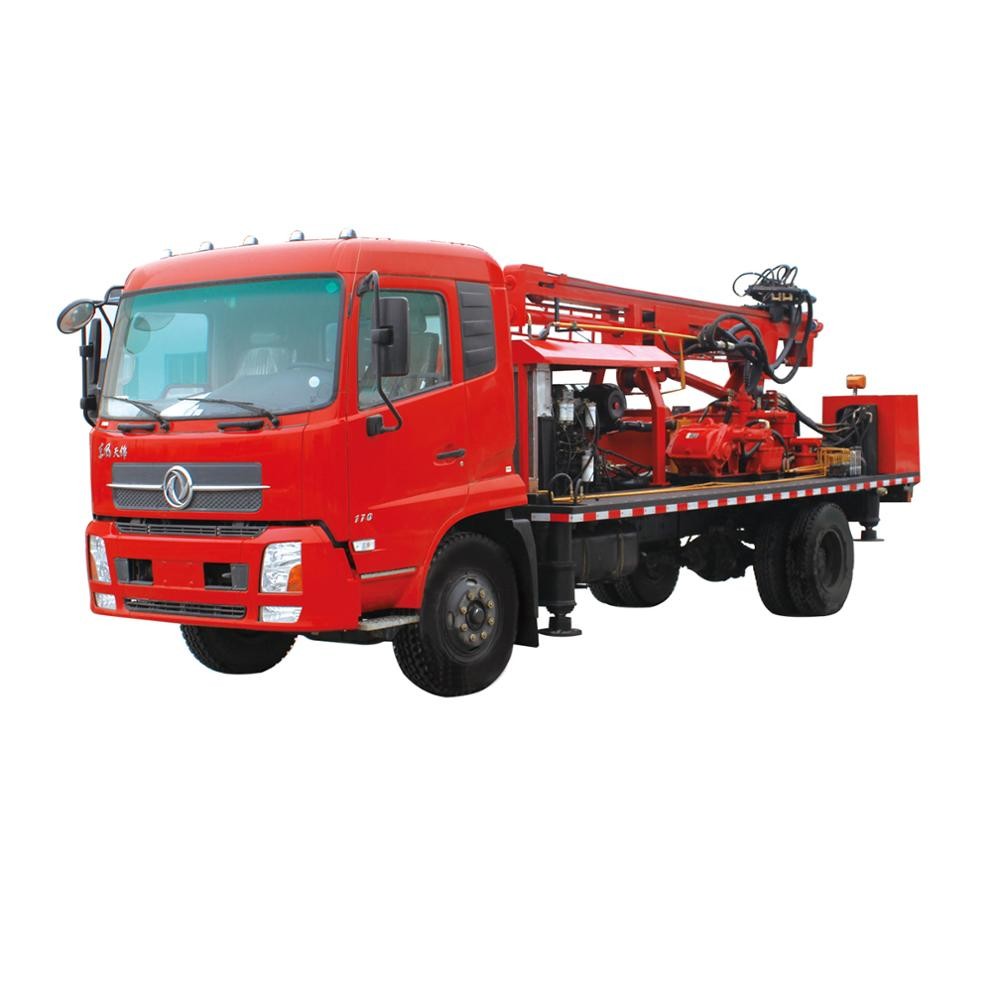

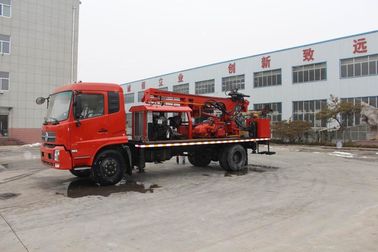

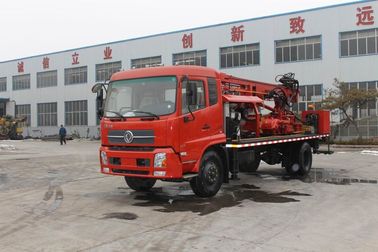

SLY-300 300m Depth truck mounted Pile Drilling Machine With 1 Year Warranty



Quick details



Condition:New

Type:Rotary Drilling Rig

Power Type:Diesel

Place of Origin:Shandong, China (Mainland)

Brand Name:longye

Model Number:SLY-300

Usage:Water Well

Voltage:220V

Power(W):147000

Dimension(L*W*H):12160*2490*3440

Weight:12 Ton

Certification:IOS9000 C1

Warranty:main part one year

After-sales Service Provided:Engineers available to service machinery overseas



Product Description



1. SLY300 truck mounted borehole water well drilling machine is designed by our engineers; it adopts truck mounted and is a rotary and DTH drilling rig.

The truck chassis adopts the special crane chassis of brand DONGFENG , the main transmit, transmission power, gearbox, .

2. The truck chassis is adopt th6×4 special chassis of brand SINOTRUK HOWO, the main transmit, transmission power, gearbox, sets of windlass, mud pump,mast are setup on the chassis.

3. This rig is a rotary drilling rig with directional circulation, which is equipped with BW850/20 mud pump. It adopts the slurry as the washing fluid, it can drill on clay, sand and rock if it is equipped with a good drilling bit.

4. The power of drilling rig comes from the extra CUMMINS diesel engine 6BTA-C150 112KW; the rig sets up distribute implement and hydraulic system

5. We set up a generator ( 30kw) , so that it is convenient to illuminate or work at night.

6. The adding pressure implement is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.

7. The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.

8. The appearance of rig is pretty. It has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working. It is popular with domestic and foreign clients.



Technical parameter

Technical parameter
Bore diameter(mm) 115-350mm
Bore depth(m) 320
Work pressure(Mpa) 1.05-3.5
Air consumption(m³/min) 16--40
Drill rod length(m) 4.5
Drill rod diameter(mm) 89
Dimension(mm) 8900*2100*3300
Climb ability(degree) 20
Total weight(T) 12
Feed system
Axial pressure(N) 40820
Hosit force(N) 85040
Rotation torque(Nm) 6500
Rotation speed 0--80
Truck chassis DONGFENG
Model Cummins

Wheel base

Horse power

5000mm

170hp

Gear box 6 speed

Top speed

Fuel type

Tire size

85km/h

diesel

:90.00-20R

Drive form



4*2

300m Depth Pile Drilling Machine  /  Deep Water Well Mud Pump Rock Drilling Rig 0300m Depth Pile Drilling Machine  /  Deep Water Well Mud Pump Rock Drilling Rig 1300m Depth Pile Drilling Machine  /  Deep Water Well Mud Pump Rock Drilling Rig 2300m Depth Pile Drilling Machine  /  Deep Water Well Mud Pump Rock Drilling Rig 3
