| Place of Origin: | Shandong，China |
| Brand Name: | SINOTRUK HOWO |
| Certification: | ISO9001 |
| Model Number: | ZZ1047D3414C145 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed in nude |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500sets per month |
| Condition: | New | Fuel Type: | Diesel |
|---|---|---|---|
| Emission Standard: | Euro 3 | Dimensions（LxWxH）: | 5995*1980*3030mm |
| Transmission Type: | Manual | Drive Type: | 4x2 |
| High Light: | cargo van box truck,cargo transport truck |
||
HOWO light refrigerator truck 3ton capacity 4X2 driving type
Product description
Refrigerated truck is widely used to transport frozen foods (ice truck), dairy (milk truck) fruits and vegetables, vaccine and drug transporter (vaccine truck), etc
Our refrigerated car collected special imported thermal insulation material. The water absorption rate of the insulation board is ≤ 1. The heat conduction coefficient is ≤ 0.028 W/mk, and the compressive acuity ≥ 150 kpa with density 30 ~ 45 kg/m3, using the most advanced fifth-generation closed polyurethane plate bonding structure. The load plate surface materials are optional, such as reinforced fiber glass, stainless steel, aluminum alloy, choi steel, etc.
Specifications
| Item | unit | parameter | |
| Vehicle model | SINOTRUCK HOWO 4x2 LHD dump truck | ||
| Chassis model | ZZ1047D3414C145 | ||
| Overall dimensions | mm | 5995×2500×2500 | |
| Body internal dimensions | 4150×2300×550 | ||
| Actual load | kg | 5000 | |
| Mass in working order | Appro×2600 | ||
| Wheel base | mm | 3360 | |
| F/R track base | 1520/1490 | ||
| Approach/departure angle | ° | 19/17 | |
| Exhaust/kw | ml/kw | 3760/85 | |
| Max speed | km/h | 95 | |
| Fuel type | Diesel | Engine | YN4102QBZL |
| Number of axles | 2 | Traction system | 4x2 |
| Number of tires | 6+1 | Tire specification | 7.00R16 |
| Transmission | 6-speed with over drive | Operation control system | Electrically hydraulic control |
| Electric system | 24v | Pax allowed in cab | 2 |
| Configuration | Refrigerator is Kingtec, made in China, working temperature is minus 5- 15 celsius degree. The material of the van surface is FRP, 8 cm thick PU inside. | ||
| Engine | Kunming Yunnei diesel engine, 116hp | ||
| Production cycle | 15-20 working days | ||
| Warranty | 12 months from the date of supply | ||

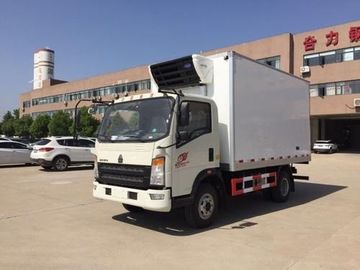

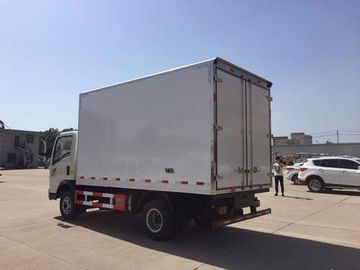

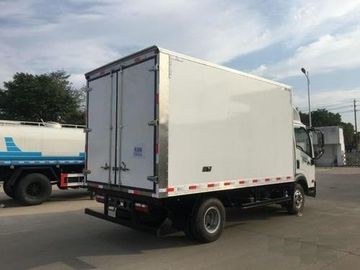

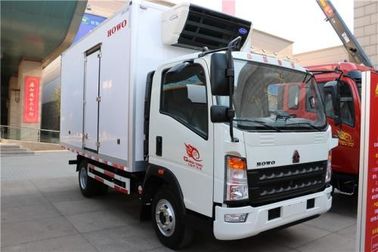

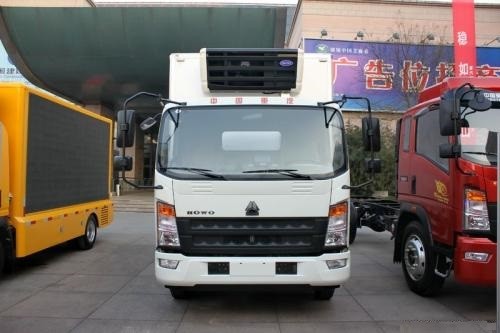

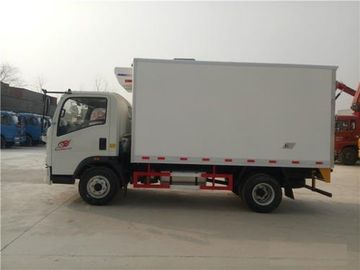

Product pictures
