| Place of Origin: | CHINA |
| Brand Name: | HOWO |
| Certification: | CCC |
| Model Number: | ZZ3317N4667A |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Package in Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 UNITS/Mouth |
| Model: | ZZ3317N4667A | Steering: | ZF8118 Steering Gear Box |
|---|---|---|---|
| Cab: | HW76 | Wheel Base: | 1800+4600+1350mm |
| Engine: | WD615.47 | Front Axle: | HF9 |
| High Light: | heavy duty tipper trucks,construction dump truck |
||
371HP Euro2 8x4 12 Wheelers Heavy Duty Dump Truck With ZF8118 Steering And HW76 Cabin
| SINOTRUK HOWO 8x4 Dump Truck Specifications | ||||
|
|
Carriage Internal Dimensions(mm) | 8000x2300x1500 | ||
| Cubage (m3) | 27.6 | |||
| Steel thickness of Carriage(mm) | Floor:8mm/Side:6mm | |||
| Steel | Q235 | |||
| Hydraulic Lift of Carriage | Front Lift | |||
|
|
Kerb weight (Kg) | 10460 | ||
| Gross vehicle weight (Kg) | 31000 | |||
|
|
|
Length(mm) | 10315 | |
| Width(mm) | 2496 | |||
| Height(mm) | 3125 | |||
| Wheel base (mm) | 1800+4600+1350 | |||
| Angle( ̊ ) | Approach | 14 | ||
| Departure | 33 | |||
|
|
Maximum driving speed (km/h) | 82 | ||
| Fuel consumption (1/100 km) | 46 | |||
|
|
Model | SINOTRUK HW76 Low-floor Lengthen cab | ||
| HW76 cab, (single sleeping, with air-condition), all-steel forward control,70̊ hydraulically tiltable to the front,2-arm windscreen wiper system with 3 speeds,laminated windscreen with casted-in radio aerial,hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat,with heating and ventilating system,outer sun visor,adjustable roof flap,with stereo radio/cassette recorder,safety belts and adjustable steering wheel,air horn,with 4-point support fully floating suspension and shock absorbers. | ||||
|
|
Model | WD615.47(Euro 2) | ||
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | |||
| Horsepower | 371 | |||
| Maximum output Kw/r/min | 274/2200 | |||
| Maximum torque N.m/r/min | 1460/1300-1600 | |||
| Bore x Stroke | 126x130mm | |||
| Valve | 2 | |||
| Displacement | 9.726L | |||
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan | ||||
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | |||
|
|
SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | |||
|
|
ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving) | |||
|
|
SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes. | |||
| Suspension | Front overhang | 1500mm | ||
| Rear overhang | 1360mm | |||
|
|
SINOTRUK AC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.45;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading. | |||
|
|
Service brake:dual circuit compressed air brake |
|||
| Wheels & Tyres | Rims | 10 hole-steel | ||
| Tyres | 12.00R20 radial tyre with 1 Spare tire. | |||
| Wheel tread | 2022/2022,2041/2041,1830/1830mm | |||
|
|
Operating voltage:24V,negative grounded |
|||
| Oil Tank | Square type-300L Aluminum alloy fuel tank | |||
Description:
HOWO 8x4 Dump Truck is produced by SINOTRUK.And exported more than eighty countries and regions,for example Ethiopia,Kenya,South Africa,The Philippines,Saudi Arabia,Malaysia,Nigeria,Peru,Russia... It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials, which is the best choice for heavy construction vehicle customers.
Packing:
Our advantages:
1. Warranty: one year or 10000 km
2. Production time: within 35 working days
3. After-sale service team:highly trained with overseas working experience
4. Support service:response quickly in 12 hours and provide professional technical
5. Shipping:professional transport team,safety and quickly

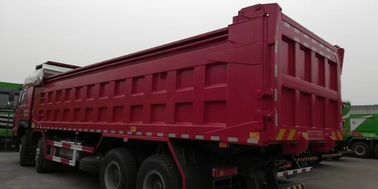

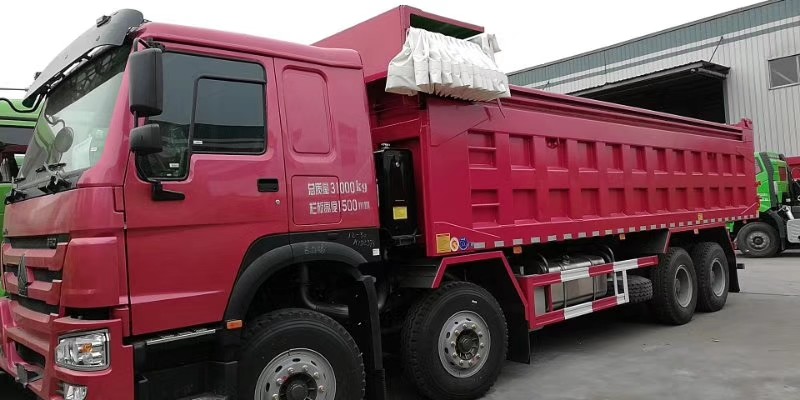

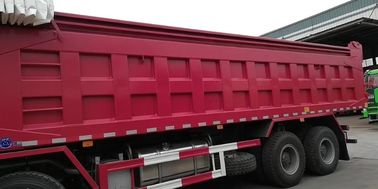

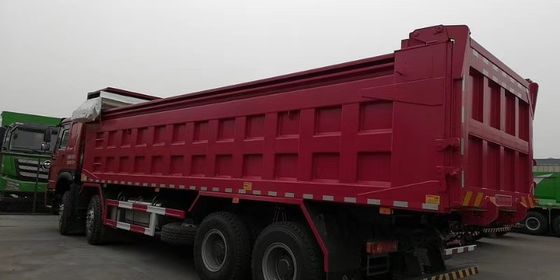

Pictures:
