| Place of Origin: | SHANDONG |
| Brand Name: | FAW |
| Certification: | ISO/CCC |
| Model Number: | J6L |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units/month |
| Model: | J6L | Cubage (m3): | 10 |
|---|---|---|---|
| Overall Dimensions(mm): | 8400×2500×3100 | Engine(Hp): | 220 |
| Wheelbase: | 4500mm | Tank Dimensions(mm): | 4800x2100x1500 |
| High Light: | fuel tanker trucks,oil tanker truck |
||

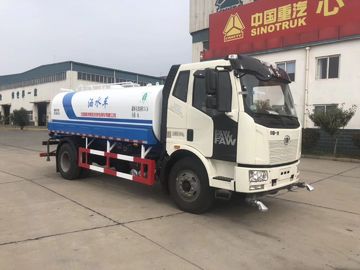

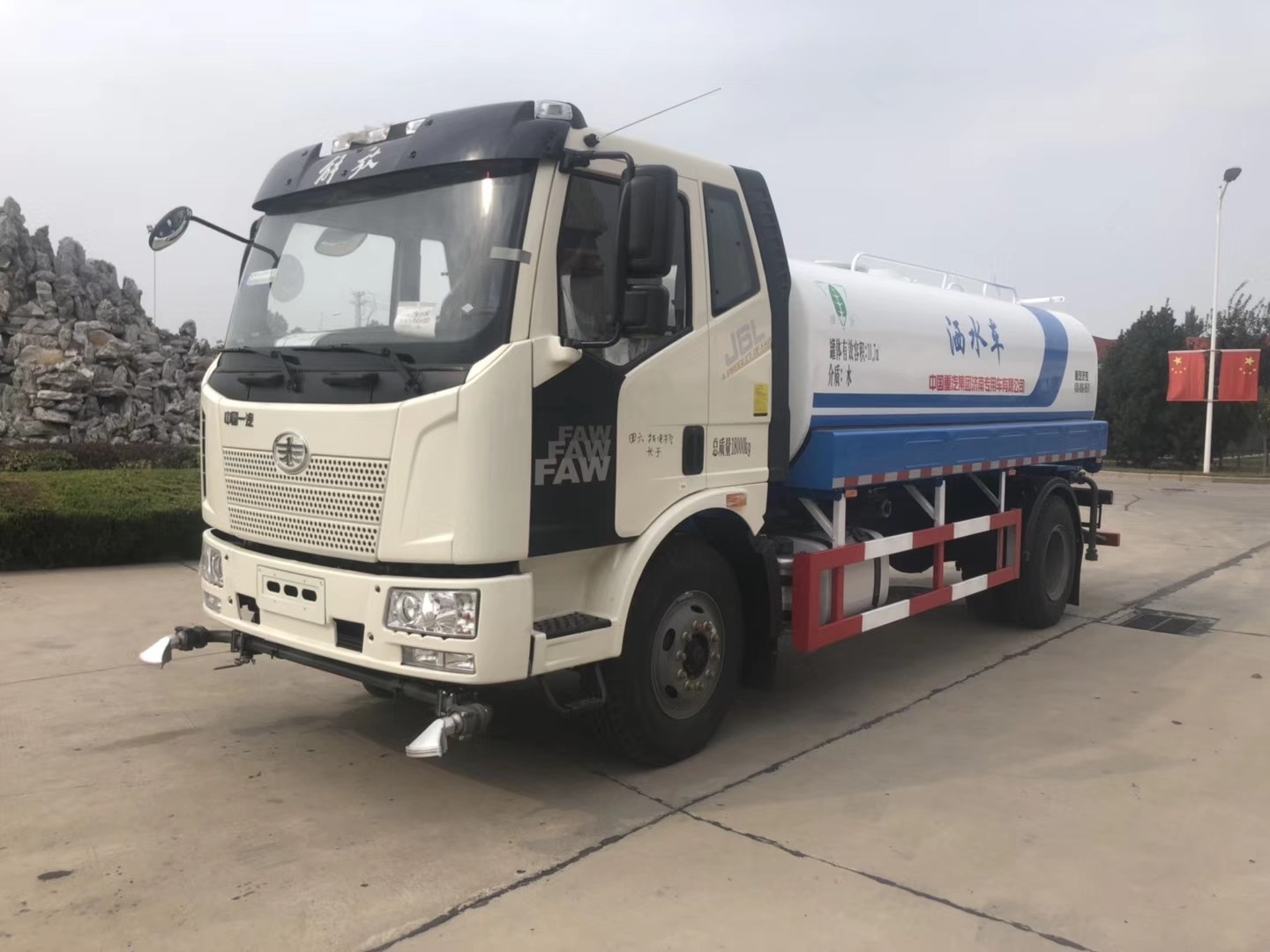

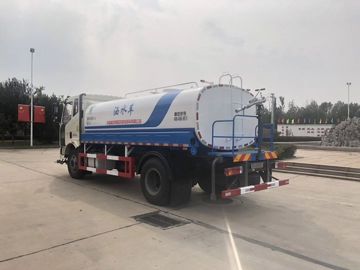

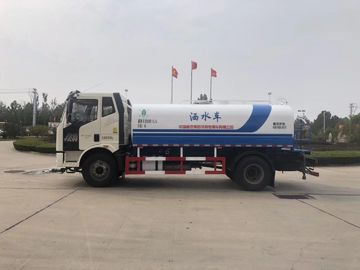

FAW 4x2 6 Wheels Euro 3 Street Cleanout Sprinkler With 4500mm Wheelbase And Power Steering
Description:
European standard cabin,big living room design concept.
High safety,high reliability,high comfort,low curb weight ,low fuel consumption,low maintenance cost.
FAWDE/WEICHAI engine,FAW/FAST/EATON/ZF gearbox,FAW/PX axle,high reliability.
Apply to long distance and high efficiency transportation.
Packing:
The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. The satisfied product with high level standard.
2. The full aspect service from order to shipping.
3. Give customer most suitable advice when customer has special needs for your transportation or construction.
4. Specialized in this area more than 10 years,rich experience and well after-sale service.
5. Technique support and training. Customization service, as per your request, we will customize our production
Configuration:
| GVW18000kg Driving Type 4x2 | ||||
| Model | J6L | |||
| Cab | J6L a row and a half cab, allowable 3 passengers, manual lift glass and rear mirror, air conditioner, electric hydraulic lifting device for the cabin. | |||
| Engine(Hp) | 220 | |||
| Power(Kw) | 160 | |||
| Wheelbase | 4500 | |||
| Front/Rear Suspension | 1400/2500 | |||
| Steering | Power steering | |||
| Approach/departure angle | 20/9 | |||
| Wheels & tire | 9.0-20 | |||
| Tire number | 6+1 | |||
| Tank Dimensions(mm) | 4800x2100x1500 | |||
| Cubage (m3) | 10 | |||
| Steel thickness of tank(mm) | 4/5 | |||
| RHD or LHD | optional | |||
| Overall Dimensions(mm) | 8400×2500×3100 | |||
| Curb weight (Kg) | 6880 | |||
| Engine | Model | BF6M2012-22 | ||
| Horsepower | 220 | |||
| Maximum output Kw | 160 | |||
| Maximum torque N.m | 750 | |||
| Type | 6cylinders, in-line,4-stroke ,turbo inter-cooling, diesel engine | |||
| Displacement | 6.06L | |||
| FAW brand, Euro 3(Euro 4 ,Euro 5 optional) | ||||
| Driving passenger | 2,3 | |||
| Transmission | 6 forwards,1 reverse | |||
| Front Axle | 5.5T | |||
| Rear Axle | 10T | |||
| Brake System | air brake | |||
| Color and LOGO | customized | |||
| Electric system | 24V | |||
| Tank material | Carbon steel, stainless steel, aluminum, etc. alloy, etc. | |||
| Sprinkling width | 14m each side | Suction height | 7m | |
| Standard configuration | carbon steel water tank, manhole, water pump, front/side/rear spray nozzle, rear working platform, water cannon, fire valve, water valve, filter gauze, water hose, climbing ladder. | |||
| Optional configuration | Stainless steel/aluminum alloy water tank, insulation layer for water tank, stainless steel water pump, fire pump, fire gun, pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights | |||
| Delivery date | Within 20 days after receipt advance | |||
| Packing | Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity. | |||
