| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO/CCC |
| Model Number: | ZZ1087 |
| Minimum Order Quantity: | 1 peice |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Unit/Units per Month |
| Fuel Type: | Diesel | Horse Power: | 120HP |
|---|---|---|---|
| Wheelbase: | 4200 | Tire Type: | 8.25R16 |
| Emission Standard: | Euro 2 | Transmission Type: | Manual |
| Cabin: | 2080 Cabin ( Berth Can Be Optional) | Engine: | YC4E120-20 |
| High Light: | heavy wrecker trucks,emergency tow truck,120HP Euro 2 howo tow truck |
||

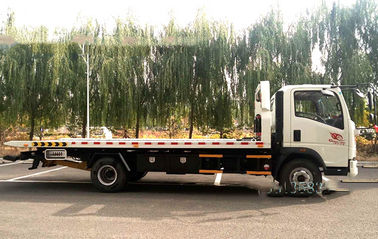

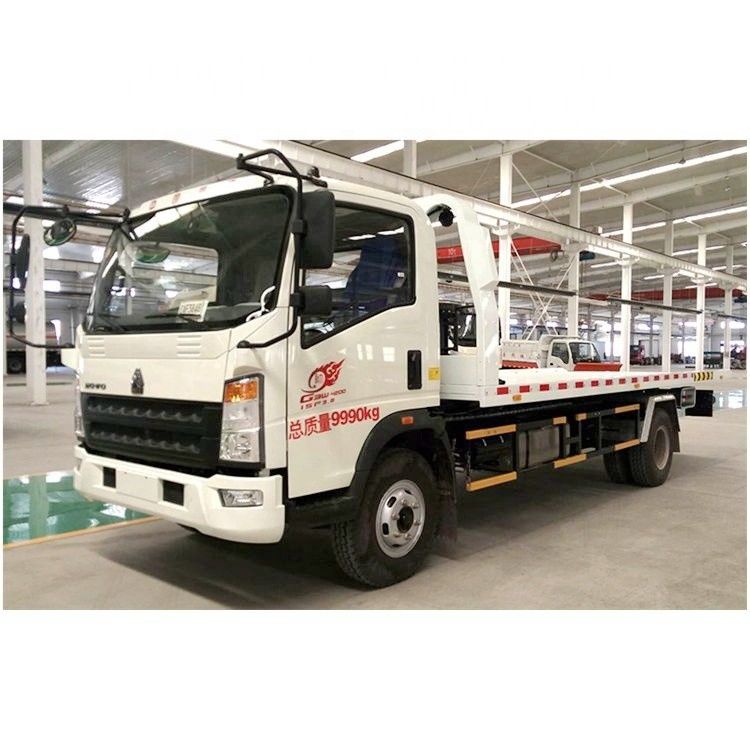

Sinotruck Light Duty HOWO Tow Truck Wrecker Road Recovery Vehicle Euro 2
Product description
3P2A flat bed, 5.6 meters long, 2.3 meters wide. Drag 3 tons, payload 3 tons, rear lifting can be 2.965tons.
Multi valve, balance valve is imported by Italy original (Haide), and the hydraulic cylinder Foshan (Haizhanli) adopts German technology,double layer steel wire hydraulic hose, all imported seal ring and split mould press welding panel. and it is wear-resistant, anti sliding and great resistance.Bilateral linkage operating system, 3 rear working lights, a 4 ton hydraulic winch (25 meters wire rope), 1 hand washing box, 2 small cars, L type tire bracket 1 pairs, 6 bundling belt, 1 pair of fork, 1 fork seat pair, 1 chain hook,All hydraulic components are imported or China brand optional.
Product parameter
| Driving Type | Left / Right Hand Driving | |
| Cabin | 2080 Cabin ( Berth can be optional) | |
| Engine | Power | 120HP |
| Emission | Diesel EURO III, IV, V | |
| Transmission | MANUAL 6F | |
| Steering | hydraulic steering with power assistance | |
| Axle | Design and produce by SINOTRUK | |
| Front/ Rear Axle | 2.0+4.2 | |
| Wheelbase | 4200 | |
| Oil tank | 120L | |
| Tyres | 8.25R16 | |
| Deck | ||
| Rated holding capacity (kg) | 9990 | |
| Maximum lifting weight (kg) | 2500 | |
| Fully extended maximum lift capability (kg) | 1500 | |

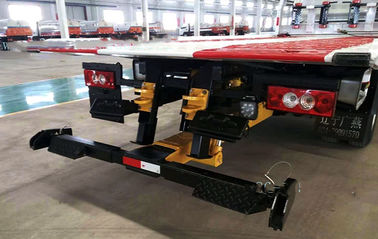

| Effective length of the bracket arm | 1650(mm) | |
| Retracting stroke of the bracket arm | 1350(mm) | |
| Upper inclination of the bracket arm | 11(°) | |
| Lower inclination of the bracket arm | -8(°) | |
| Minimum inclination when the plate is extended backwards (°) | 8 | |
| Maximum load-carrying capacity of the plate mechanism (kg) | 4000 | |
| Dimensions of the plate mechanism (mm) | 5150×2500×56 | |
| Height of compartment floor above ground (mm) | 1158 | |
| Retracting stroke of plate (mm) | 3000 | |
| Maximum tension of winch (kg) | 4000 | |
| Maximum tension of winch (kg) | 10 | |
| Length of steel wire rope (mm) | 20 | |
| Minimum linear speed of steel wire rope (m/min) | 4 | |
Our services
1. Update truck production process and send the pics to you:
chassis complete - arrive at body factory - body production - complete and test-arrive China port-on ship.
2. Engine, transmission, axle guarantee one year (Any faulty caused by incorrect operation or man-made factors is exclusive of guarantee.)
3. Provide the wearing parts list immediately after the truck finished
4. We are specialized in Sinotruk Spare parts for 10+ years.
If you need spare parts,you could get them bellow market price. Either original or copy, we have lots of directly suppliers to choose. Sinotruck light
5. If your order is batch, such as more than 10 units, we could supply online maintenance service.
Product picture
