5 Or 8 Tons Garbage Waste Compactor HOWO 4x2 140HP 8m³ / Collector Trucks

5 Or 8 Tons Garbage Waste Compactor HOWO 4x2 140HP 8m³ / Collector Trucks

  • 5 Or 8 Tons Garbage Waste Compactor HOWO 4x2 140HP 8m³ / Collector Trucks
  • 5 Or 8 Tons Garbage Waste Compactor HOWO 4x2 140HP 8m³ / Collector Trucks
  • 5 Or 8 Tons Garbage Waste Compactor HOWO 4x2 140HP 8m³ / Collector Trucks
  • 5 Or 8 Tons Garbage Waste Compactor HOWO 4x2 140HP 8m³ / Collector Trucks
5 Or 8 Tons Garbage Waste Compactor HOWO 4x2 140HP 8m³ / Collector Trucks
Product Details:
Place of Origin: China
Brand Name: HOWO
Certification: ISO CCC
Model Number: CSC20190906
Contact Now
Detailed Product Description
Engine Capacity: 140hp Drive Wheel: 4x2
Transmission Type: Manual Fuel Type: Diesel
Gross Vehicle Weight: 16000 Emission Standard: Euro 2
Size: 7350*2500*3125 Brand Name: Sinotruk HOWO
High Light:

aircraft refueler trucks

,

truck mounted concrete pump

HOWO 4x2 140HP 8m³ 5Tons 8 Tons Garbage Waste Compactor Collector Trucks



Product Description



Garbage compactor truck ,also called compactor garbage truck , garbage truck for sale , trash compactor , compression garbage truck , refuse truck , garbage collection vehicle, waste truck container garbage truck, compact garbage trucks, waste compactor trucks, compactor garbage truck for sale etc

Garbage truck is mainly used in municipal sanitation and large factories and transport all kinds of rubbish, especially suitable for transportation community living garbage
We provide various types of waste collection vehicles such as side loader, refuse compactor, swing-arm garbage truck, arm-roll garbage truck, sealing dump garbage truck, compression docking refuse collector, kitchen waste truck, etc. with different capacities ranging from 3MT to 20MT.

Our Garbage compactor truck advantage :
1 Dual operation both at the rear of compactor garbage truck and inside cabin , easy control
2 Famous brand hydraulic pump to drive hydraulic valve to keep garbage compactor truck safety
3 Cheap price , one year warranty
4 Garbage bin lifting system could design as customer’s requirement .
5 Lock system is operated by machinery hydraulic system can reduce second pollution mostly.

Garbage type as following:
1.There are compactor truck ,swing arm type garbage truck,skip garbage truck ,self- dump garbage truck ,sealed garbage truck ,arm type garbage truck ..etc from our factory
2. with boat type bucket ,squared type bucket ,sealed type bucket , trapezoidal bucket etc.
3.dustbin can separate with truck body,so one truck with more buckets



Product Parameter



  Driving type 4x2
1880 Standard cab, with three seats, with A/C. Left Hand Driven. 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions Overall dimensions (L x W x H)mm 6600x2050x2540
Wheel base (mm) 3360
Wheel track (front/rear) (mm) 1625/1545
Approach/Departure angle(°) 20/20
Weight in KGS Tare Weight 4700
Loading Capacity 3500
Front axles loading capacity 1x3200
Rear axles loading capacity 1x5000
Max. driving speed(km/h) 90
Engine Brand YUNNEI POWER
Model YN4102
Type 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 116 HP
Emission standard Euro
Gearbox WLY6T100 , 6 forwards &1 reverse
Clutch Diaphragm spring clutch
Steering Gear Power steering
Fuel tank (L) 120 L
Tire 7.00R16 All radial tires with one spare, 7 pieces
Compression garbage box body system
BodyVolume 5 CBM
Cycle Time of Filling(S) 30
Lifting Time of Filler(S) 8-10
Time of Discharging 50
Working Pressure(MPA) 16
Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank.

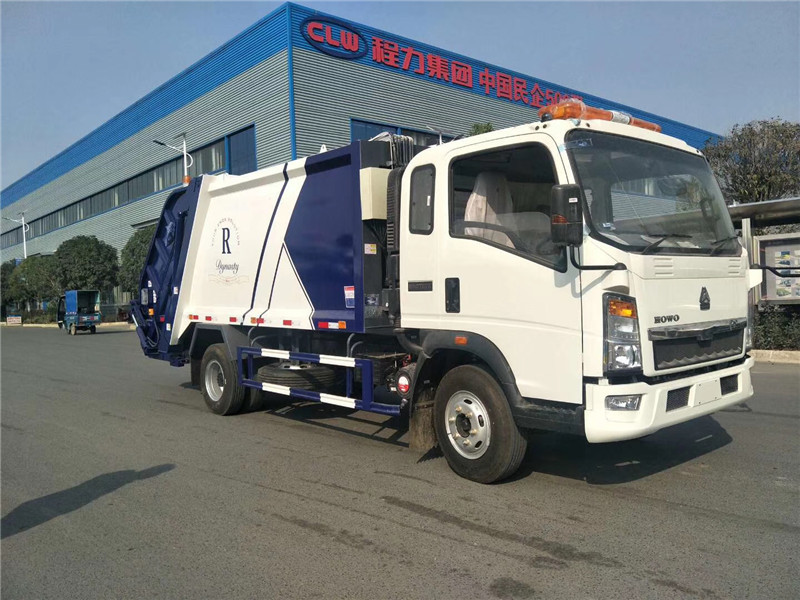

Product Picture



5 Or 8 Tons Garbage Waste Compactor HOWO 4x2 140HP 8m³ / Collector Trucks 05 Or 8 Tons Garbage Waste Compactor HOWO 4x2 140HP 8m³ / Collector Trucks 15 Or 8 Tons Garbage Waste Compactor HOWO 4x2 140HP 8m³ / Collector Trucks 25 Or 8 Tons Garbage Waste Compactor HOWO 4x2 140HP 8m³ / Collector Trucks 3
