Place of Origin: | China |
Brand Name: | HOWO |
Certification: | ISO |
Model Number: | ZZ3257N3247A |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiation |
Packaging Details: | Nude |
Delivery Time: | 30-45 work days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 Unit/Units per Month |
Drive Wheel: | 6x4 | Trnsmission: | HW19710 |
---|---|---|---|
Gross Vehicle Weight: | 25000 | Rear Axle: | HC16 |
Engine: | WD615.69 | Cabin: | HW76 |
High Light: | heavy duty tipper trucks,construction dump truck |
25 Tons SINOTRUK HOWO Heavy Duty Dump Truck With WD615.69 336HP Engine And HW76 Cabin
Product description
Heavy truck HOWO new type of city dregs truck is a very mature heavy truck product, with the help of a number of dregs truck promotion and publicity, has been unanimously recognized by the government and customers. It has three advantages: solid chassis, more safe and reliable, improved loading and unloading efficiency, intelligent information anti-cheating management platform. It is one of the products with outstanding advantages among many brands in the industry.
Packing:
Product parameter
ITEM | UNIT | PARAMETER | ||
Vehicle | Sinotruck Howo dump truck | |||
Overall dimensions | mm | 8515×2496×3170 | ||
GVW | kg | Appro×34280 | ||
Curb weight | Appro×12280 | |||
loading weight | Approx22000 | |||
Wheel base | mm | 3425+1350 | ||
F/R track base | 2022/1830/1830 | |||
Approach/departure angle | ° | 19/23 | ||
Max speed | km/h | 90 | ||
Tire specification | 12.00R20 / 11 Units | Number of axles | 3 | |
Front Axle | HF9 | Rear Axle | HC16 | |
Engine | Manufacturer | China National Heavy Duty Truck Group Co ., Ltd | ||
Model | WD615.69 | |||
Emission/kw | 9726ml/247Kw, 336hp | |||
Emisssion standard | Eu 2 | |||
Steering | Power, ZF8118 | Cab passenger | 3 | |
Fuel tank | 300L | Fuel tank material | aluminium alloy | |
Transmission | HW19710, 10F&2R | Electric System | 24v | |
Air Condition | yes | CD, Radio, MP3 | ||
Box dimensions | mm | 5600x2300x1100 (plate side 6, bottom 8) | ||
Standard configuration |
1, Front and rear axles enhanced leaf spring (10/12) 2, Direct type and power PTO 3, Double frame 4, High bumper (metal) 5, Front hydraulic system lifting 180mm |

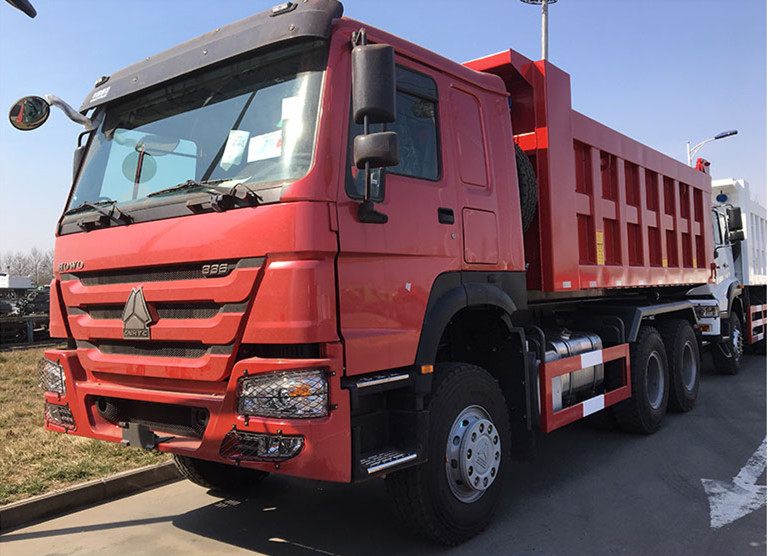

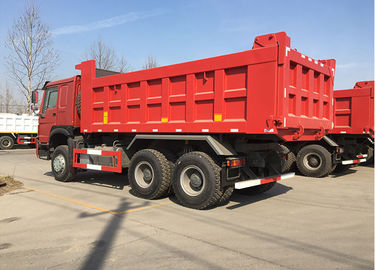

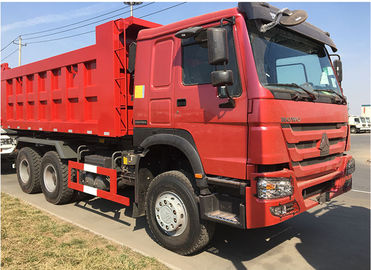

Product picture
