| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO/CCC |
| Model Number: | HOWO |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Unit/Units per Month |
| Condition: | New | Capacity (Load): | 1 - 10t |
|---|---|---|---|
| Emission Standard: | Euro 2 | Dimensions (L X W X H) (mm): | 5900x2300x2500 |
| Tire: | 11r22.5 Radial Tyre | Horsepower: | 190 - 250hp |
| Engine: | YUCHAI | Transmission Type: | Manual |
| High Light: | heavy duty tipper trucks,construction dump truck |
||
10Tons HOWO 4X2 6 Wheelers Dump Truck RHD/LHD Tipper Truck With Euro 2
Product Description
A dump truck is a vehicle that unloads cargo by hydraulic or mechanical lifting. Also known as the dumper truck, tipper truck, tipper lorry, tip-truck, tip-trailer, tipper, etc. It is used for taking dumps for off-road constructions site, mine. It consists of a car chassis, a hydraulic lifting mechanism, a cargo compartment and a power take-off device.
1.The dumper truck can be classify by lifting way, one is rear dump, another is side dump.
2. Choosing domestic or famous foreign brand for the main parts of hydraulic system
3. Dump body material Q235, Q345, Q610 or wear–resisting steel for the dump body
4. Type of dump body: square shape or U-shape/ half-round-shape
5. The length of dump body is from 3M to 12M, providing related design according to customer’s requirement.
Product Parameter
| Cabin | Driving type 4x2 LHD | |
| 2080 cab ,with two seats and one sleeper, with A/C, with wind deflector. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 5995×2380×2740 |
| Wheel base (mm) | 3450 | |
| Wheel track (front/rear) (mm) | 1805/1795 | |
| Approach/Departure angle(°) | 22/15 | |
| Weight in KGS | Tare Weight | 2660 |
| payload | 6000 | |
| Front axles loading capacity | 2700 | |
| Rear axles loading capacity | 5200 | |
| Max. driving speed(km/h) | 95 | |
| Engine | Brand | YUCHAI |
| Model | YC4102 | |
| Horse Power(HP) | 140hp | |
| Emission standard | Euro Ⅱ | |
| Gearbox | WLY6T53, 6 forwards & 1 reverse | |
| Steering | Left hand drive | |
| Tire | 8.25R16 radial steel tires, 6 pieces with one spare | |
| Fuel tank | 120L | |
| DUMPER BODY | ||
| Size (L*W*H) | 3860*2250*800mm | |
| Thickness | bottom 4mm, side & front 3mm, | |
| Material | Carbon Steel Q345 | |
| Tipping hydraulics | Middle Tipping, Complete set of Chinese Famous Brand Hydraulics System | |
Our Service
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service:
1. Lifetime free maintenance and upgrade. Spare parts could be supplied by cost price.
2. Free technician training, engineer abroad for customer service.
3. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
4. Special service for big project, such as stadium, exhibitions, squares and so on.

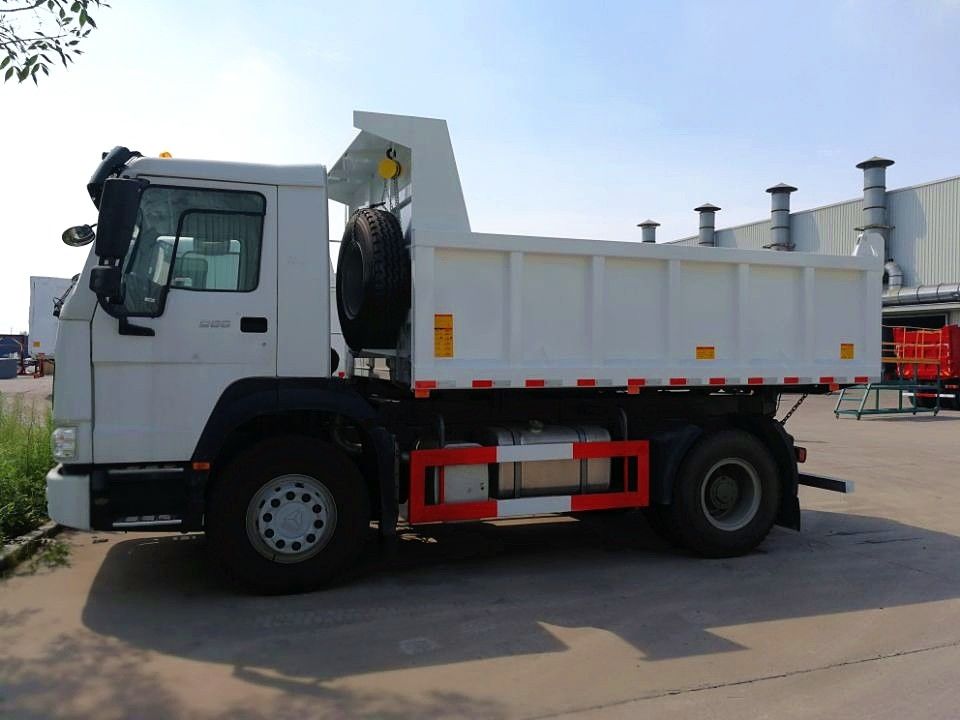

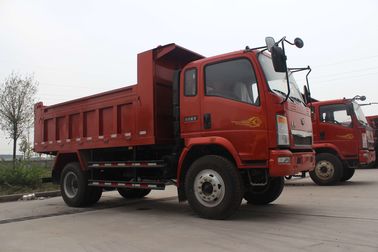

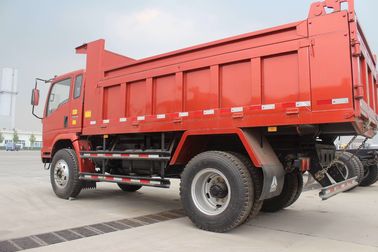

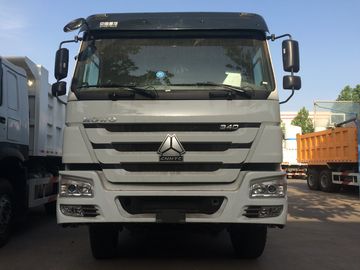

Product Picture
