Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House

Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House

  • Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House
  • Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House
  • Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House
  • Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House
Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House
Product Details:
Place of Origin: China
Brand Name: CHUSHENG
Certification: CCC, ISO9001
Model Number: CSC20190628
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500 Unit/Units per Month
Contact Now
Detailed Product Description
Use: Truck Trailer Type: Semi-Trailer
Max Payload: 40 TONS, 45 Tons, 50tons Braking System: WEBCO Optional
Function: Transport 20ft 40ft Container King Pin: JOST 2.0 Inch (50mm)/3.5 Inch (90mm)
Size: 11800*2500*2200 Material: Steel
High Light:

diesel semi trucks

,

low bed semi trailer

High Quality Tri-axle 45 Tons Capacity Cargo Trailer Warehouse Storehouse Semi Trailer



Product Description



Storehouse semi trailer is mainly used for transport of goods not spin, such as: tractors, loaders, excavators, bulldozers, etc., applied to many industries, for large cargo transportation is very convenient. we can be provided based on client requirements.



1. High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.

2. The welding machines and most skilled workers make welding of low bed trailer more frequent and strong.

3. Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.

4. We have standard low bed semi trailer which is with 3 axles and 60 tons loading capacity. Meanwhile, we can have your trailer customised with options.



Product Parameter



DIMENSIONS
Tare Weight 9900kg
Overall Length 12400mm
Overall Width 2480mm
Payload 45000kg
Photo for reference. Final products can be made according to exact requirements
SPECIFICATIONS
I Beam& Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Middle Flange 8mm,Height 600mm, Bottom Flange 18mm,width 140mm.
Axle 3 axles
HJ Brand 13 ton
Suspension German Style Heavy duty mechanical suspension
Floor 3mm checker plate
Leaf Spring 13 piece Leaf spring for heavy loading
King Pin JOST brand 2” Bolt-in King Pin
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 9.0-22.5 wheel rim ,13 pieces
Tire 12R22.5 tire with one spare tire, 13 pieces
Twist Lock 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare Tire One set of spare tire including a carrier
Braking System WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories One standard tool box



Our Service



Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.

After-sale service:
1. Lifetime free maintenance and upgrade. Spare parts could be supplied by cost price.
2. Free technician training, engineer abroad for customer service.
3. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
4. Special service for big project, such as stadium, exhibitions, squares and so on.

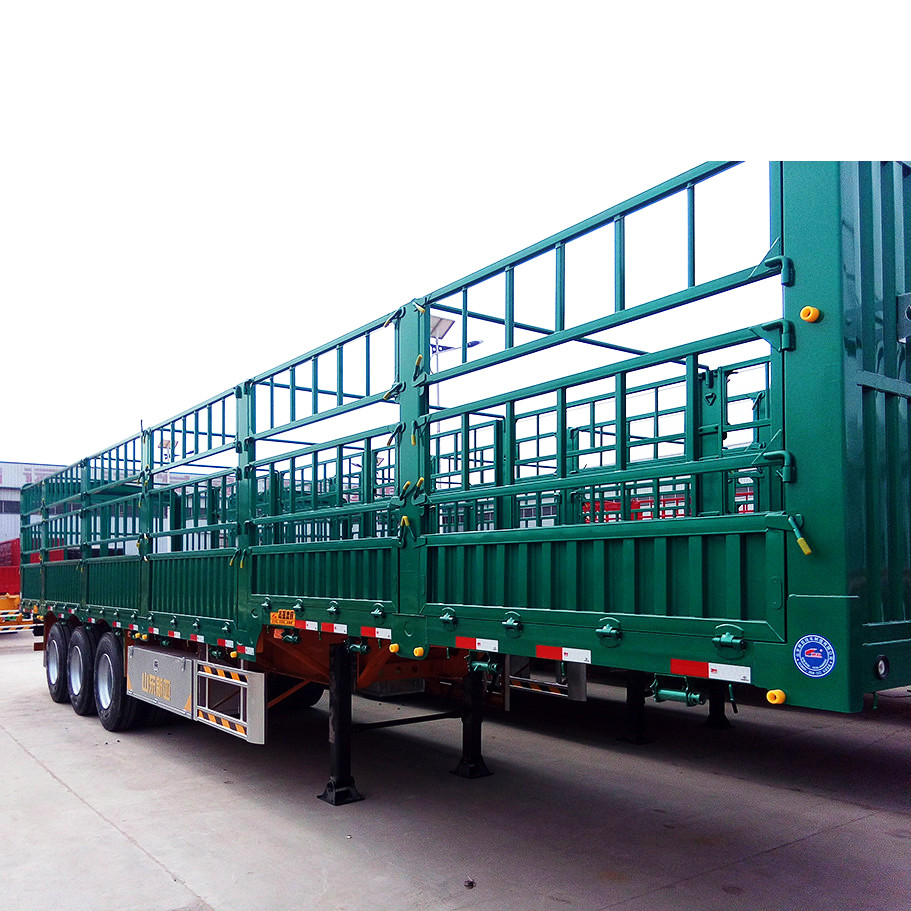

Product Picture



Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House 0Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House 1Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House 2Tri - Axle 45 Tons Heavy Duty Semi Trailers For Warehouse / Store House 3
