20CBM Heavy Duty Dump Truck Euro 2 31 - 40t Manual Transmission Type

20CBM Heavy Duty Dump Truck Euro 2 31 - 40t Manual Transmission Type

  • 20CBM Heavy Duty Dump Truck Euro 2 31 - 40t Manual Transmission Type
  • 20CBM Heavy Duty Dump Truck Euro 2 31 - 40t Manual Transmission Type
  • 20CBM Heavy Duty Dump Truck Euro 2 31 - 40t Manual Transmission Type
  • 20CBM Heavy Duty Dump Truck Euro 2 31 - 40t Manual Transmission Type
20CBM Heavy Duty Dump Truck Euro 2 31 - 40t Manual Transmission Type
Product Details:
Place of Origin: China
Brand Name: HOWO
Certification: CCC/ISO
Model Number: ZZ3257N3847A
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-35 work days
Payment Terms: L/C, T/T
Supply Ability: 300 Unit/Units per Week
Contact Now
Detailed Product Description
Drive Wheel: 6x4 Horsepower: 351 - 450hp
Transmission Type: Manual Fuel Type: Diesel
Horse Power: 371 Capacity (Load): 31 - 40t
Emission Standard: Euro 2 Dimensions (L X W X H) (mm): (7545~8545)*2496*3170/3450
High Light:

heavy duty tipper trucks

,

construction dump truck

,

20CBM heavy duty dumper truck

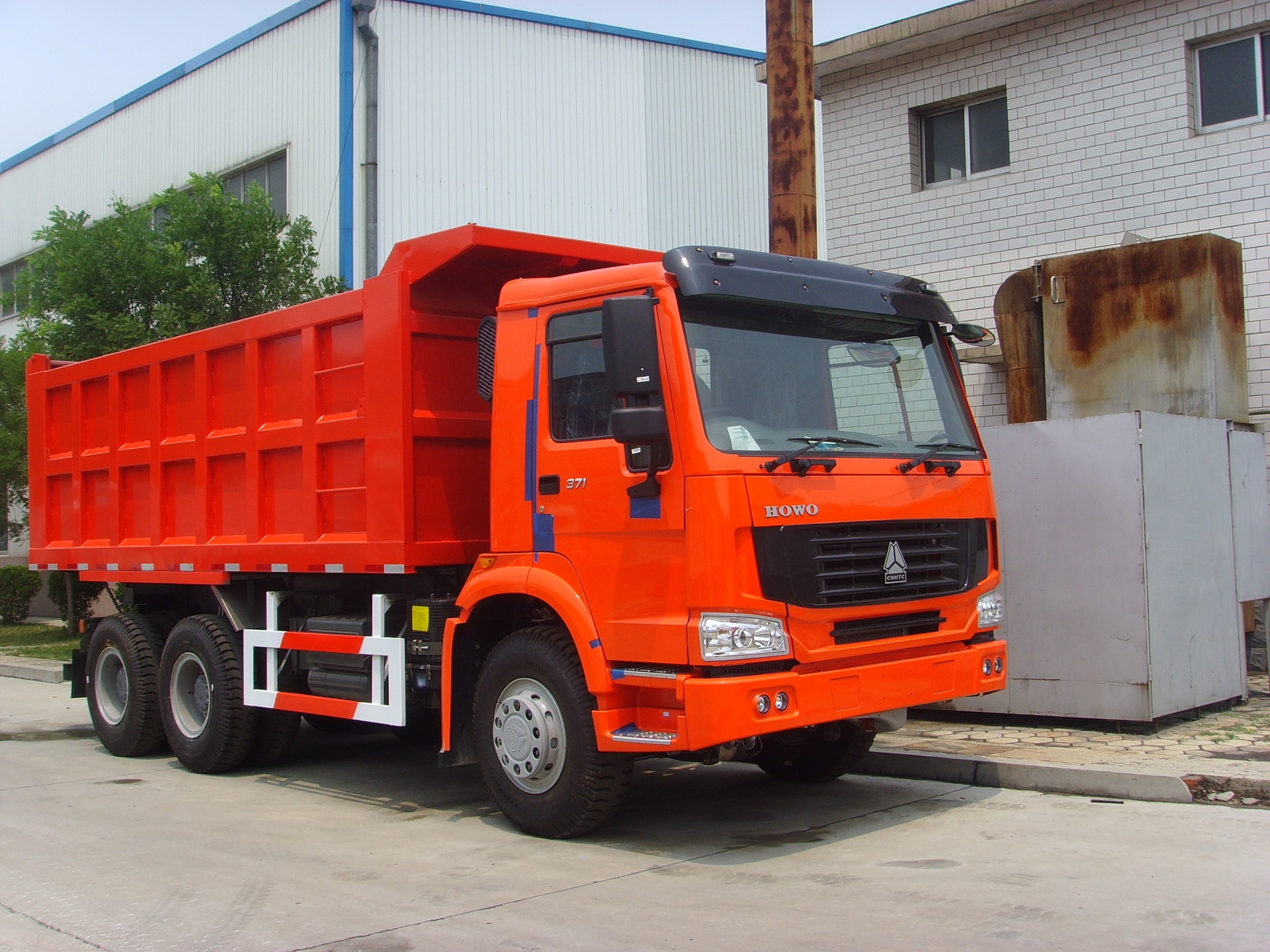

10 Wheels SINOTRUK HOWO 371 20CBM Heavy Duty Dump Truck Euro 2

Specification



Vehicle series HOWO-7 6x4 Dump Truck
Cab HW76
Engine Model Euro 2:WD615.47
Power(Ps/rpm) 273/2200
Maximum torque(Nm/rpm) 1500
Displacement(L) 9.726
Transmission SINOTRUK HW19710 series 10 gears Transmission,Transmission with main and auxiliary transmission structure, , main transmission with double counter shaft ,auxiliary transmission with planetary reduction.
Clutch Φ430diaphragm spring Clutch,Hydraulic control air assisted.
Front axle HF9 drum-type, rated load of 9t
Rear axle HC16 double reduction (central reduction+wheel reduction),speed ratio:5.73, 4.8
Steering system ZF8118 steering gear, ZF steering oil pump, system pressure 18MPa
Suspension Steer Axle front and rear leaf spring suspension, front suspension with shock absorber,transverse stabilizer
Drive Axle front and rear leaf spring suspension,rear suspension is disconnected type with transverse stabilizer.
Braking system Service brake dual-circuit air pressure brake
Parking Brake spring storage energy without air
Auxiliary brake Engine exhaust braking.
Electric system Voltage 24V
Generator 2240W
Batteries 12V/165Ah,2 pieces
Starter Power 24V,7.5kW
Wheels & Tyres Tyres 12.00R20
Optional 12.00R24,12.00-24
Fuel Tank Capacity 300 Liter
Weights (kg) Curb weight(vehicle/chassis) 12170/8630;12290/8660;12450/8690;12270/8710
Gross Vehicle Weight 25000
Rated load 12420~12700
Vehicle Dimensions (mm) Overall length x Overall width x Overall height (7545~8545)×2496×3170/3450
Wheelbase (3225~3825)+1350
Front/rear overhang(vehicle/chassis) 1500/(1470/715);1500/(1670/740);1500/(1870/900)
Wheel track of front axle 2041
Wheel track of rear axle 1830/1850
Performance Maximum speed(km/h) 79/83
Maximum gradeability(%) 20
Minimum turning diameter(m) 15/16/17



Competitive Advantage



1. competive price, cost-effective
2. with all kinds of truck model, which can fulfil your requirements

3. all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4. using the high strength steel, make it has a long service life
5. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6. excellant apperance of cabin, safety, reliable

7. quick and efficient spare parts supply bring you more convenient

8. you can choose cargo body with Front lifting type or Middle lifting type which you prefered

9. The hydraulic sytem using HYVA brand or Domestic famouse brand

10. low fuel consumption
11. strong enough engine

12. fast delivery time, we can arange production according to your needs exactly and quickly

13. professional import and export dealing precedure, make customs clearance more high efficiency
