Product Details:
Place of Origin: China
Brand Name: HOWO
Certification: ISO/CCC
Model Number: ZZ3257N3847A
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 300 Unit/Units per Month
Contact Now
Detailed Product Description
Drive Wheel: 6x4 Horsepower: 351 - 450hp
Transmission Type: Manual Fuel Type: Diesel
Capacity (Load): 21 - 30t Emission Standard: Euro 2
Dimensions (L X W X H) (mm): 8750*2550*3450mm Engine: WD615.47 (371HP)
High Light:

heavy duty tipper trucks

,

construction dump truck

,

18 cubic meters dump trucks

SINOTRUK 371HP 6X4 10 Tyre 18 Cubic Meters Dumper Truck 21-30 Tons

Product Description



30 - 40 Tons 6X4 Tipper Dump Truck 10-25CBM Front Lifting Hydraulic Cylinder
Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and so on.
Power range: 266HP - 420HP.
It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works
Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system
New HOWO dump truck, High Quality , More Lighter,
High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.



Product Parameter



Product Name

SINOTRUK HOWO 6X4 Dump Truck

Chassis Model

ZZ3257N3847A

Driving Type

LHD (RHD is optional)

Cabin

HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.

Engine

Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.69, Euro 2, 336 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L

Transmission

HW19710, 10F & 2R, with PTO
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)

Steering

ZF power steering, modol ZF8118, hydraulic steering with power assitance

Front Axle

HF9,1x9000 KGS

Steering with doubleT-cross section beam

Rear Axle

HC16, 2x16000 KGS

Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.

Ratio:5.73

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

12.00R20, radial tyres with one spare tyre

Fuel Tank

300L

Cargo Body

5800*2300*1500 mm, 20 CBM, Floor 8mm Side 6mm

Overall Dimension

8750*2550*3450mm



Advantage



1) competitive price, cost-effective
2) with all kinds of truck model, which can fulfil your requirements
3) all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4) using the high strength steel, make it has a long service life
5) The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6) excellent apperance of cabin, safety, reliable
7) quick and efficient spare parts supply bring you more convenient
8) you can choose cargo body with Front lifting type or Middle lifting type which you prefer
9) The hydraulic system using HYVA brand or Domestic famous brand
10) low fuel consumption
11) strong enough engine
12) fast delivery time, we can arange production according to your needs exactly and quickly
13) professional import and export dealing precedure, make customs clearance more high efficiency

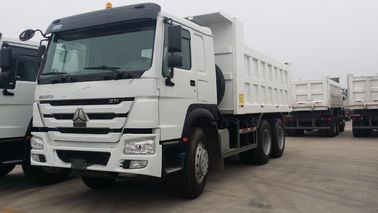

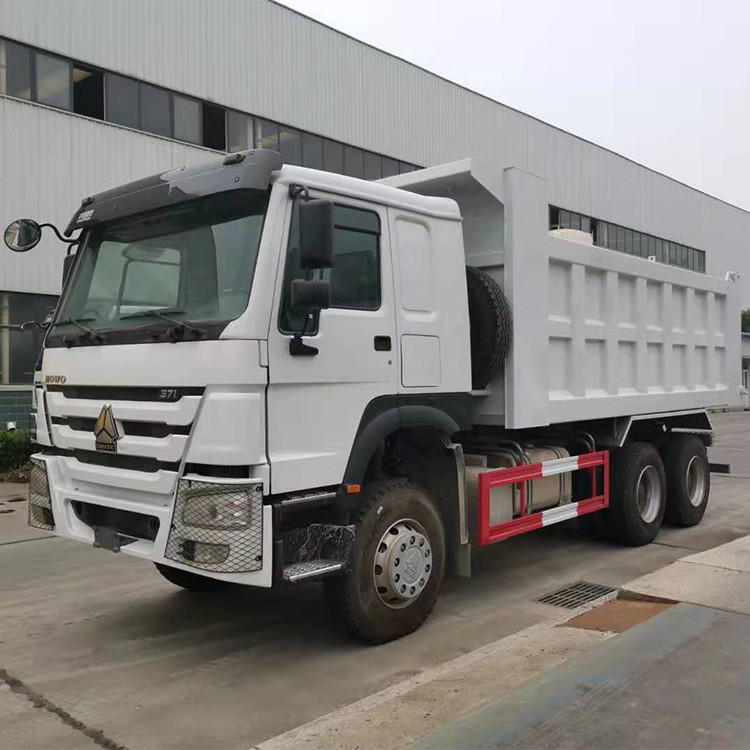

Product Picture



18 Cubic Meters Sinotruk Dumper Truck 371HP 6X4 10 Tyre 21-30 Tons Manual Transmission Type 018 Cubic Meters Sinotruk Dumper Truck 371HP 6X4 10 Tyre 21-30 Tons Manual Transmission Type 118 Cubic Meters Sinotruk Dumper Truck 371HP 6X4 10 Tyre 21-30 Tons Manual Transmission Type 2
