Yellow Sinotruk Howo 6x4 Tractor Truck With WD615 Engine And HW76 Cab

Yellow Sinotruk Howo 6x4 Tractor Truck With WD615 Engine And HW76 Cab

  • Yellow Sinotruk Howo 6x4 Tractor Truck With WD615 Engine And HW76 Cab
  • Yellow Sinotruk Howo 6x4 Tractor Truck With WD615 Engine And HW76 Cab
  • Yellow Sinotruk Howo 6x4 Tractor Truck With WD615 Engine And HW76 Cab
Yellow Sinotruk Howo 6x4 Tractor Truck With WD615 Engine And HW76 Cab
Product Details:
Place of Origin: China
Brand Name: HOWO
Certification: ISO/CCC
Model Number: ZZ4257S3241W
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 300 Unit/Units per Month
Contact Now
Detailed Product Description
Condition: New Drive Wheel: 6x4
Emission Standard: Euro 2 Fuel Type: Diesel
Transmission: HW19710 Front Axle: HF9
High Light:

diesel tractor truck

,

tractor head truck

6X4 10 Wheels Euro2 371HP SINOTRUK HOWO Tractor Truck With WD615 Engine And HW76 Cab



Product description



SINOTRUK HOWO Tractor Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W
This model is the proven product of SINITRUK, which features reliable structure, great loading capacity, excellent power from 266-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.
Highway transport is divided into two version, to match the different condition of transportation needs.
The first version of the highway transport is equipped with aluminum shell transmission MCY13 (Q) single reduction drive axle and other lightweight configuration, mainly used for standard load level (It means that the total weight of tractor train within 55 tons, the total weight of bike within 41 tons); When the first version of the tractor adopts the plate spring suspension, disc brake MCY13 (Q) single stage drive axle can be opted.
The fifth version of the highway transport is equipped with iron reinforced frame, Iron shell transmission and two-stage reduction drive axle which can loaded16 ton, single-stage reduction drive axle, which can loaded 16 ton is optional, mainly used for comprehensive road conditions and overloading of the transport conditions.



Product parameter



Product Name
SINOTRUK HOWO 6X4 Tractor Head
Chassis Model
ZZ4257N3247W
Driving Type
LHD (RHD is optional)
Cabin
HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.
Engine
Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model:WD615,47, Euro 2, 371 HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
Transmission
HW19710, 10F & 2R
Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering
ZF power steering, modol ZF8118, hydraulic steering with power assitance
Front Axle
HF9,1x9000 KGS
Steering with doubleT-cross section beam
Rear Axle
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:5.73
Propeller Shaft
Double universal joint propeller shaft with gear-shaped coupling flange
Chassis
Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
Brake
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tyres
295/80R22.5, tubeless tyres with one spare tyre
Fuel Tank
400L
Fifth Wheel
90# or 50 #
Overall Dimension
7000*2550*3100mm



Competitive Advantage



1)low fuel consumption
2)strong enough engine
3)with all kinds of truck model, which can fulfill your requirement
4)the key parts adopt the world's top technology products
5)based on strong technical support and top level technology make the trucks with high quality and more reliable
6)it has higher safety and running efficiency.
7)excellent appearance of cabin, safety, reliable
8)competitive price, cost-effective
9)quick and efficient spare parts supply bring you more convenient
10)fast delivery time, we can arrange production according to your needs exactly and Quickly
11)professional import and export dealing procedure, make customs clearance more high efficiency

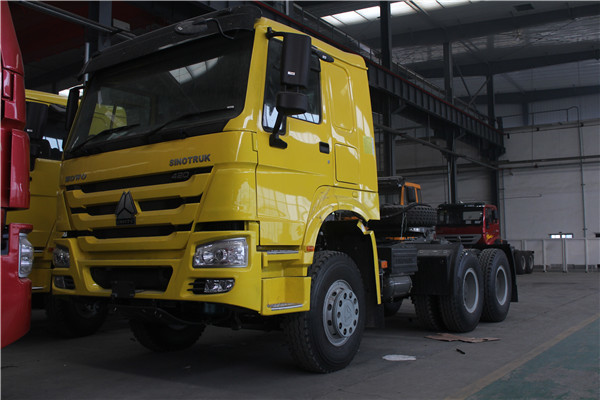

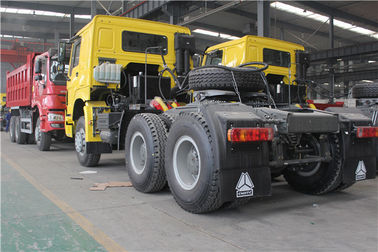

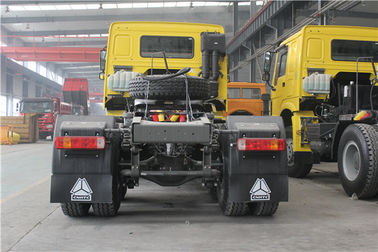

Product picture



Yellow Sinotruk Howo 6x4 Tractor Truck With WD615 Engine And HW76 Cab 0Yellow Sinotruk Howo 6x4 Tractor Truck With WD615 Engine And HW76 Cab 1
