| Place of Origin: | JINAN SHANDONG |
| Brand Name: | HOWO |
| Certification: | ISO/CCC |
| Model Number: | ZZ3167N3811 |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | 30-45 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units/month |
| Load Weight: | 3200 | Dimension: | 7445×2400×2650 |
|---|---|---|---|
| Cargo Body Size: | 5200×2300×550 | Volume Of Cargo: | 11.32 |
| Thickness: | Bottom:8mm, Side:6mm | Wheel Base: | 4200mm |
| High Light: | comercial cargo truck,cargo van box truck |
||

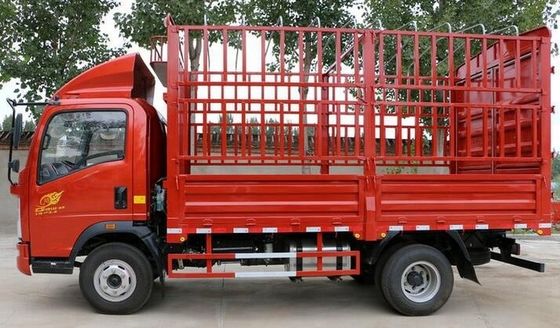

HOWO 4x2 cargo Truck with optional color 6 Wheeler full hydraulic transmission
Description:
HOWO 4x2 cargo Truck is produced by SINOTRUK.Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.
Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.Rich experience and well after-sale service.
Our advantages:
1. Warranty: one year or 10000 km
2. Production time: within 35 working days
3. After-sale service team:highly trained with overseas working experience
4. Support service:response quickly in 12 hours and provide professional technical
5. Shipping:professional transport team,safety and quickly
6. The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Main Discription:
| Wheel base | 4200 | ||
| Engine | Diesel | 4-stroke direct injection diesel engine | |
| Maximum output | 140 HP(105Kw) | ||
| Maximum torque | 430 Nm | ||
| Number of cylinder | 4 | ||
| Displacement | 4.257 L | ||
| Bore | 110mm | ||
| Stroke | 112mm | ||
| Compression ratio | 17hp/L | ||
| Axle | Front axle | 3.2 | |
| Rear axle | 8.2 | ||
| Rear axle ratio | 5.286 | ||
| Chassis | Frame | 232×70×7 mm | |
| Suspension | 9/12+9 | ||
| Fuel tank | 220 L | ||
| Brakes | Service brake | air brake | |
| Parking brake | Y | ||
| Auxiliary brake | Y | ||
| Tyres | Model | 8.25R20 | |
| Number | 7 | ||
| Adjustable steering wheel | Y | ||
| Dimensions(mm) | wheel track | Front | 1798 |
| Rear | 1764 | ||
| Front overhang | 1240 | ||
| Rear overhang | 2005 | ||
| Approach angle(°) | 27 | ||
| Departure angle(°) | 20 | ||
| Cargo | Box size | 5200×2300×550 | |
| Vehicle size | 7445×2400×2650 | ||
| Weight(kg) | Load weight | 3200 | |
| Dead weight | 8200 | ||
| Gross vehicle weight | 11400 | ||
| Payload(T) | 12000 | ||
| Performance | Maximum driving speed(km/h) | 114 | |
| Maximum grade ability(%) | 50 | ||
| Maximum ground clearance(mm) | 230 | ||
| Maximum turning circle(m) | 16.8 | ||
