| Place of Origin: | CHINA |
| Brand Name: | SINOTRUK HOWO |
| Certification: | ISO/CCC |
| Model Number: | EQ1110GLJ |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude. |
| Delivery Time: | 30-45 Work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 units/month |
| Tank Capacity: | 10 M3 | Vacuum Pump Rotation Speed: | 800r/m-1400r/m |
|---|---|---|---|
| Driving Type: | 4x2 Left/right Hand Drive | Rated Payload: | 16000KG |
| Max. Suction Lift: | >6M | Wheel Base: | 4500/4700/5100 Mm |
| High Light: | aircraft refueler trucks,sewage suction tanker truck |
||

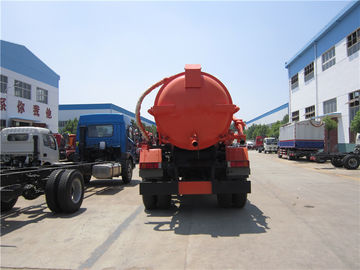

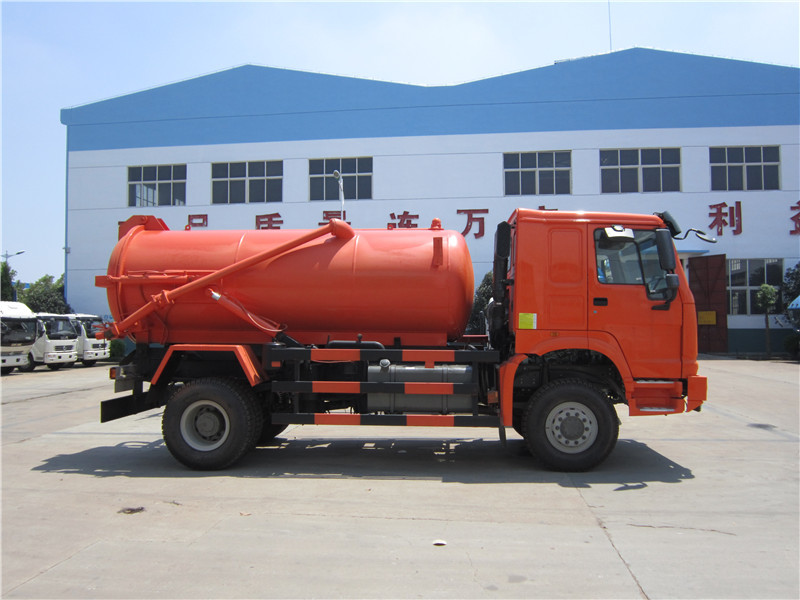

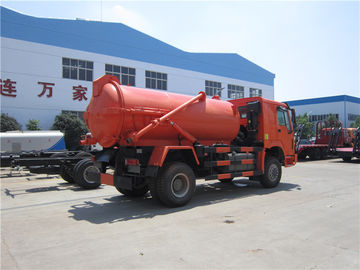

4x2 Sinotruck Howo sewage truck with 16000 Kg Rated Payload and 10m3 Tank Capacity
Description:
The basic equipment includes hydraulic cyliner, vacuum pump, ball valve, 5 meter pipe, pressure meter, window for showing liquid level, cleaning system, hoist base, water and oil separator, anti-leaking valve, etc.
The optional equipment includes sprinkler, alarm for full suction, double pump, crane, scissor lift, etc.There are two different ways to mount the pump either directly on the truck with the vacuum drive powered by the truck motor or with an independent motor.Vacuum pump,ball valve,oil cylinder for rear cap,oil cylinder for dumping,pressure meter,window for showing liquid level,lock system for rear cap,four-way valve, moisture separator,sprinkler (optional), alarm for full suction (optional).
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. Warranty: one year or 10000 km
2. Production time: within 35 working days
3. After-sale service team:highly trained with overseas working experience
4. The engine adopt 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection.
5. Adopting full hydraulic transmission, it can bring the power of engine into full play amply.
6. EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.
The product main configuration:
| Dimension(LxWxH) | 7500X2470X3050(mm) |
| Total Mass | 29800 Kg |
| Rated Payload | 16000 Kg |
| Kerb Weight | 13800 Kg |
| Passenger | 3 |
| Approach/Departure Angle | 33/22 |
| The Parameters of Chassis | |
| Manufacture/Model | HOWO/EQ1110GLJ |
| Driving Type | 4x2 left/right hand drive |
| Wheel Base | 4500/4700/5100 mm |
| Gearbox | Seven/Eight speed lever with six/seven speed forward and one reverse, manual |
| Front/Rear Track | 1900/1800(mm) |
| Tyre | 10.00-20 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 1250/2300(mm) |
| Leaf Spring Number | 8/11+8 |
| The Paremeters of Engine | |
| Manufacturer/Model | Sinotruck/WD615.87 |
| Rated Power | 266hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 8900ml |
| Emission Standard | Euro2 |
| Cylinder | Straight/6/intercooling |
| Max. torque | 1500N.m |
| Velocity | 2200rpm |
| The Parameters of Equipment | |
| Tank Capacity | 10 m3 |
| Vacuum Pump Rotation Speed | 800r/m-1400r/m |
| Max. Suction Lift | >6m |
| Vacuum | >500mmHg |
| Rotation Direction | Clockwise |
| Time for full sucktion | <5min |
