| Place of Origin: | CHINA |
| Brand Name: | STARRY |
| Certification: | CCC/ISO |
| Model Number: | LQP6 |
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude |
| Delivery Time: | 35 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 units per month |
| Distribution Capacity(kg/m2): | 0.2-3 | Asphalt Capacity(L): | 6000 |
|---|---|---|---|
| Max. Power(kw): | 118 | Distribution Width(m): | 6 |
| Distribution Precision(%): | 《2 | Average Temp. Drop(C/h): | 《1.5 |
| Highlight: | bitumen distributor truck,asphalt sprayer equipment |
||

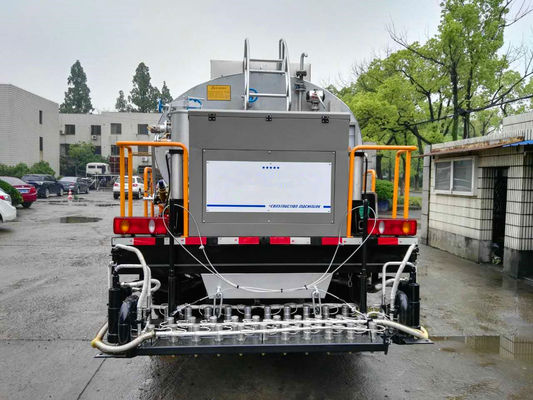

Road construction asphalt equipment asphalt paving truck with 6m Distribution width
Description:
Asphalt paving truck is a kind of road machine. It's convenient operation and has the function of asphalt insulation, heating, transport, spraying, suction, discharge, etc.We can also add some additional functions for users as required, such as the cab visual monitoring.
Manual adjust asphalt spraying's volume.Burner heating tube, nozzle operate one controlled multiple pneumatic control through pneumatic cylinder control. No heat conduction oil circulation system, asphalt pipeline and the spray bar heated by hot asphalt recycling.By using the digital to display vehicle speed and asphalt tank pump speed and accurate temperature display. Compressed air cleaning system. Take chassis hydraulic force or auxiliary diesel engine as power
Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. In the cab you can control the spray nozzles, asphalt pump and distributing volume;
2. Hydraulic drive system, accurate, reliable, safe and noise-free;
3. Latest fan-shaped nozzles, each nozzle independently controllable, three overlapping design;
4. Rear manual emergency control system, simultaneous display of asphalt pumping speed and sphalt temperature etc;
5. Manual adjusting valve switch and asphalt pumping speed and controlling distributing volume precisely at the rear;
6. Automatic Italian Riello burners;
7. Honda generator set support heating when parked;
8. Efficient heat insulated system with heat transfer oil applies to asphalt tank, pump and all the pipes;
9. Special asphalt pump made of cast steel;
|
Technical Specification for Asphalt Paving Truck
|
|||
|
Model
|
LQP6
|
Distribution capacity(kg/m2)
|
0.2-3
|
|
Chassis model
|
DFA1122SJ11D6
|
Distribution precision(%)
|
<2
|
|
Engine model
|
YC4E160-42
|
Heating method of asphalt
|
diesel burner
|
|
Max. Power(kw)
|
118
|
Asphalt capacity(L)
|
6000
|
|
Distribution width(m)
|
6
|
Average temp. drop(C/h)
|
<1.5
|
| Other |
Asphalt paving truck is a kind of road machine. It's convenient operation and has the function of asphalt insulation, heating, transport, spraying, suction, discharge, etc. We can also add some additional functions for users as required, such as the cab visual monitoring.road construction |
Cleaning system | Compressed air cleaning system. |
