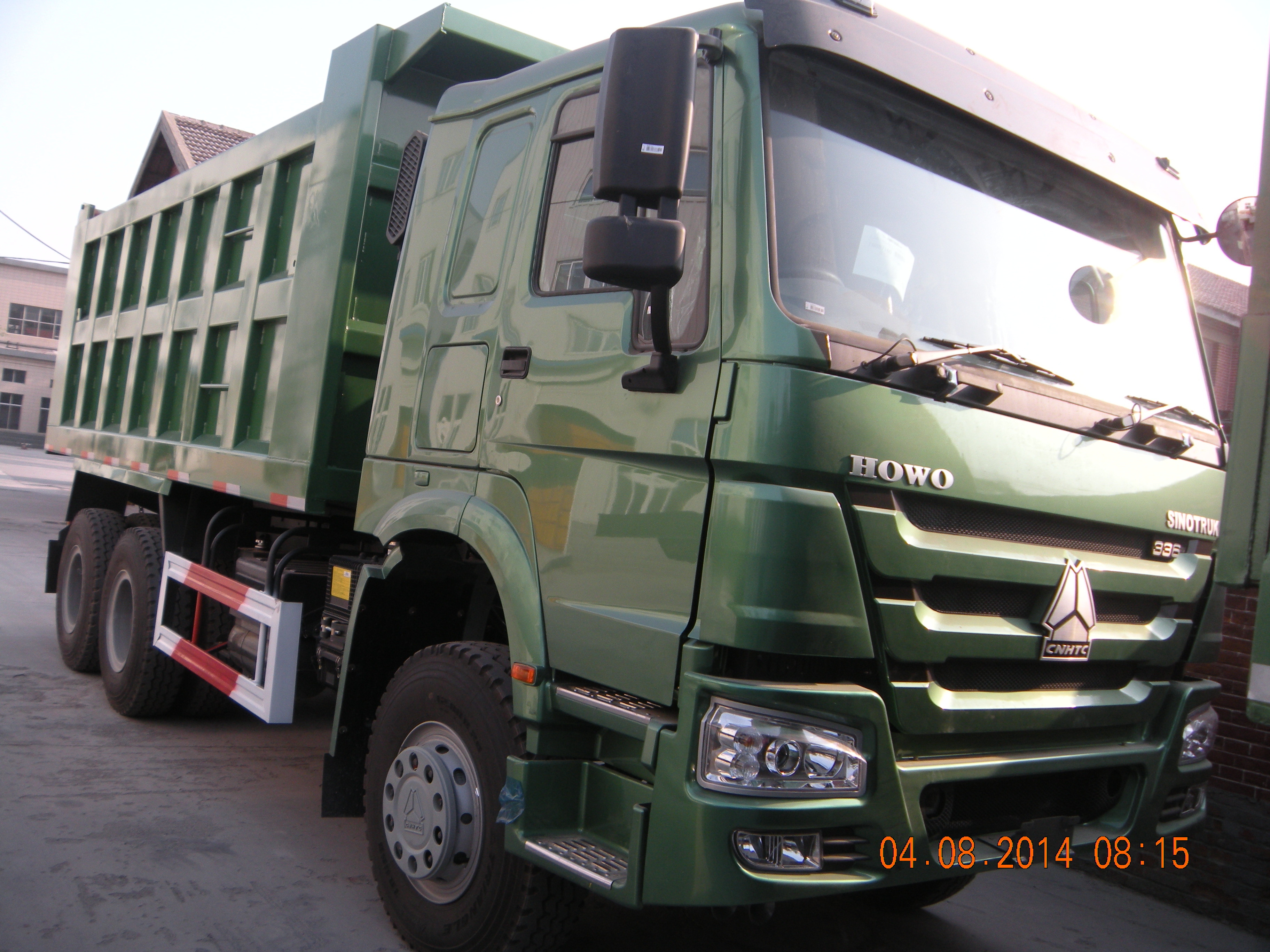

HOWO Green Dump Truck , 6x4 Rigid Tipper Trucks Used In Mining ZZ3257N3847A

HOWO Green Dump Truck , 6x4 Rigid Tipper Trucks Used In Mining ZZ3257N3847A

  • HOWO Green Dump Truck , 6x4 Rigid Tipper Trucks Used In Mining ZZ3257N3847A
HOWO Green Dump Truck , 6x4 Rigid Tipper Trucks Used In Mining ZZ3257N3847A
Product Details:
Place of Origin: JINAN SHANDONG
Brand Name: SINOTRUCK HOWO
Certification: ISO/CCC
Model Number: ZZ3257N3847A
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Nude.
Delivery Time: 30-45 Work days
Payment Terms: L/C, T/T
Supply Ability: 500 units/month
Contact Now
Detailed Product Description
Model:: ZZ3257N3847A Color: Green
Steering:: ZF8118 Steering Gear Box Wheel Base:: 3800mm
Gross Vehicle Weight:: 25000kg Hydraulic Lift Of Carriage:: Middle Lift
High Light:

Mining 6x4 Rigid Tipper Trucks

,

Green HOWO brand Dump Truck

,

ZZ3257N3847A

ZZ3257N3847A SINOTRUK HOWO 6x4 DUMP TRUCK Green color 10 Wheeler for mining



Description:



HOWO brand Dump Truck is produced by SINOTRUK.Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.

Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.



Packing:



Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.



Competitive Advantage:



1. Support service:response quickly in 12 hours and provide professional technical

2. Shipping:professional transport team,safety and quickly

3. The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.Warranty: one year

4. Production time: within 35 working days

5. Logistic team, can cargo your truck fast and safety.



SINOTRUK HOWO 6x4 DUMP TRUCK SPECIFICATIONS



Body

Carriage Internal Dimensions(mm) 5600x2300x1500
Cubage (m3) 19.32
Steel thickness of Carriage(mm) Floor:8mm/Side:6mm
Steel Q235
Hydraulic Lift of Carriage Middle Lift



Weight in kg

Kerb weight (Kg) 8765
Gross vehicle weight (Kg) 25000



Dimension(mm)





Dimensions(mm)

Length(mm) 7575
Width(mm) 2496
Height(mm) 3125
Wheel base (mm) 3800+1350



Performance

Maximum driving speed (km/h) 80
Fuel consumption (1/100 km) 40.3



Cab

Model SINOTRUK HW76 Lengthen cab
  HW76 cab, single sleeping, with air-condition), all-steel forward control, 70° hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.



Engine

Model WD615.47(Euro 2)
Type 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Horsepower 371
Bore x Stroke 126x130mm
Valve 2
Displacement 9.726L
Transmission SINOTRUK HW19710 transmission ,10 forward and 2 reverse



Clutch

SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance



Steering

ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)

Front Axle

SINOTRUK HF9 Front Axle



Rear Axles

SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:5.73;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.



Brake System

Service brake:dual circuit compressed air brake

Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

Wheels & Tyres

Rims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.



Electrics

Operating voltage:24V,negative grounded

24V,7.5KW.Starter:24V,7.5 Kw

28V,1500W.Alternator:3-phase,28V,1500 W

2x12V,165Ah.Batteries:2x12 V,165 Ah

horn,headlamps,fog lights,brake lights,indicators and reverse light

Oil Tank Square type-400L Aluminum alloy fuel tank
