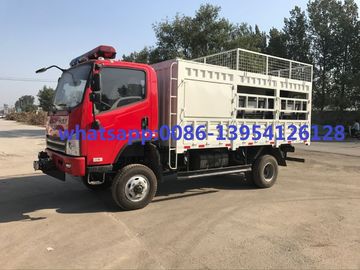

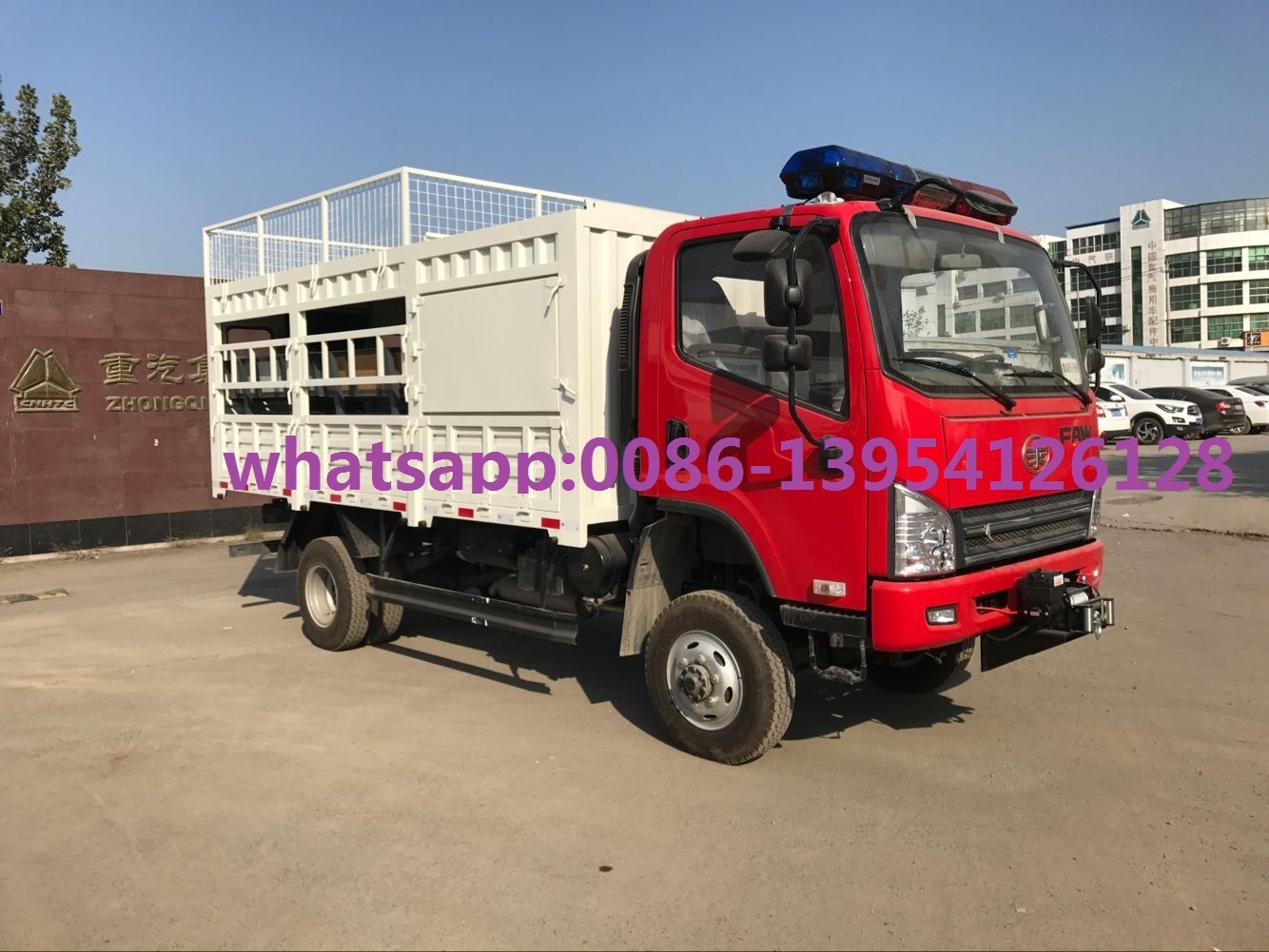

FAW Jiefang Tiger V 4X4 Full Wheel Drive Rescue special cargo Truck With Yuchai Engie 130HP

FAW Tiger V 4X4 Rescue Truck

Color: cabin bright red color, cargo body white color

Engine: yuchai brand, YC4D130-33, 130hp, 4 cylinder

Cabin: Flat roof, with AC

Transmission: WLY, 6T115

Front axle: LS2060, ratio: 4.875

Transfer case: LS18CA1Q

Rear axle:1068, ratio: 4.875

Chassis: 216*75*6

Tires: 7.50R16 14PR

With 80L oil tank

A. With 3T electrical winch

B, Cargo body size: 4.5X2.1x1.5(m), 1.5m cargo body installed search light on the left side, search light height can reach max. 2.5M, 1KVA genset with 2units Led light ,the generator has additional plug for other charger. Right side will be put emergency equipment. 1.5m cargo space beside search light can be opened from the side.. 1.5M top roof left side can be open, 1.5M top roof right side don’t need to be open.

3M Back space installed passenger seats

C, with metal wall which devided search light and

equipment space and also passengers space.

D, With 18" height basket storage on the top cargo space,

E, the cargo body in and out both with full welded, with anti-rust all side of cargo body.

F, with alarm light (1.6M length) on the top of cabin, with 2pcs microphone

G, Put railings at back so people can go up and put rice
