19-22m Platform Type Bridge Inspection Detection Truck / Concrete Pumping Equipment

Product Details:

Place of Origin:	China
Brand Name:	HOWO,
Certification:	CC
Model Number:	ZZ

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiation
Packaging Details:	Nude
Delivery Time:	30-45 work days
Payment Terms:	L/C, T/T
Supply Ability:	500 units per month

Contact Now

Detailed Product Description

Condition:	New	Max. Self-propelled Speed:	15m/min
G.V.W:	31000KG	The Second Scope Of Rotation:	0-180
Max. Horizontal Range:	22M	Overall Dimension:	12565(L)x2500(Wx4000 (H)mm
High Light:	aircraft refueler trucks , truck mounted concrete pump

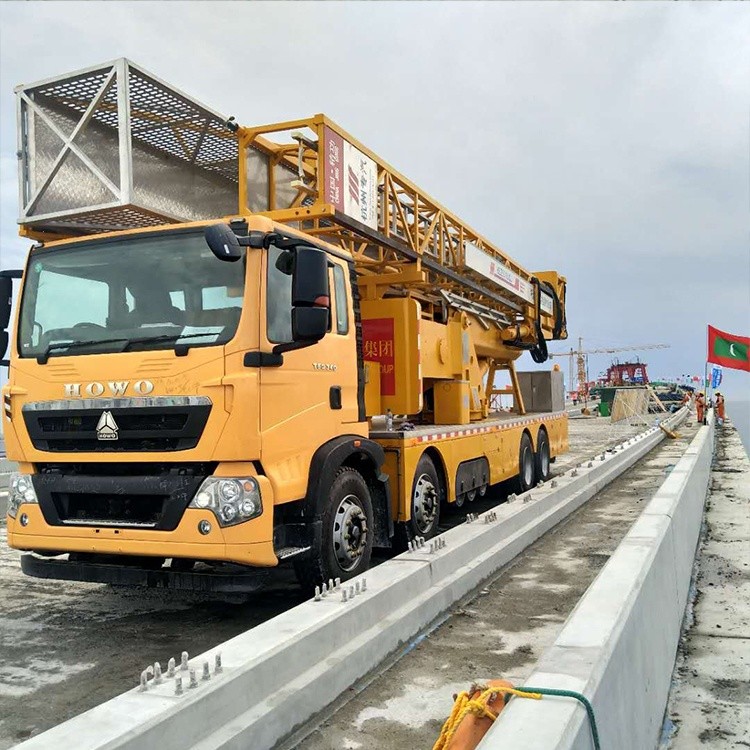

NEW HOWO 19-22m Platform type bridge inspection detection truck With Optional Color

Specification:

Max. horizontal range	22M
Max. lowering depth	8500mm
Width of platform	1000mm
Space required on bridge	3000mm
Max. load on platform	700KG
Max. load on telescopic platform	300KG
Max. Over-bridging of sidewalk	3500mm
Max. crossing of sound barrier	4500mm
The first scope of rotation	0-90°
The second scope of rotation	0-180⁰
Max. self-propelled speed	15m/min
G.V.W	31000KG
control system	Wireless remote control, Panel control, emergency manual control

Features:

We HSA, design and manufacture all series bridge inspection truck from 12m to 22m

Our platform type bridge inspection truck are widely used in all kinds of under-bridge project: Such as inspections, repairs, stripping operations, painting and sandblasting, general maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.

Quality Control:

A quality control team with more than 20 years' experience has been set up in Hangzhou Special Automobile. All the members in this team have more than 20 years' experience in the quality control of special purpose vehicle. Each step in the manufacturing process has been strictly monitored to guarantee the products' high quality. No matter what are your interested items, they will be in the same outstanding quality.

Reliable Performance:

·Good capabilities of high-spanning and wide-spanning, suitable for different operating conditions.
Self-propelled ability during operation, max. moving speed 15m/min.
Deploying time is only 5 minutes.

More Safety Design:

Key Parts with Europe brand (Such as control system, Hydralic system, Electric system)
Standby gasline generator make sure the woker safety during hydraulic fault.
Four inboard hydraulic stabilizers to ensure the truck stable during work
adopt mechanical, hydraulic and electrical triple limit, with the function of interlocking
