FAW JIEFANG J5P Tractor Trailer Truck Manual 30t / Heavy Transport Truck

FAW JIEFANG J5P Tractor Trailer Truck Manual 30t / Heavy Transport Truck

  • FAW JIEFANG J5P Tractor Trailer Truck Manual 30t / Heavy Transport Truck
  • FAW JIEFANG J5P Tractor Trailer Truck Manual 30t / Heavy Transport Truck
  • FAW JIEFANG J5P Tractor Trailer Truck Manual 30t / Heavy Transport Truck
FAW JIEFANG J5P Tractor Trailer Truck Manual 30t / Heavy Transport Truck
Product Details:
Place of Origin: Qingdao
Brand Name: FAW
Certification: ISO9001
Model Number: CA3312
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Price: NEGOTIABLE
Packaging Details: NUDE
Delivery Time: 30-45DAYS
Payment Terms: L/C, T/T
Supply Ability: 5000UNITS/MONTH
Contact Now
Detailed Product Description
Drive Wheel: 6x4 Capacity (Load): 21 - 30t
Horsepower: 251 - 350hp Condition: New
Emission Standard: Euro 3 Engine Capacity: > 8L
Gross Vehicle Weight: 31000 Color: Optional
High Light:

diesel tractor truck

,

tractor head truck

FAW JIEFANG New J5P Tractor Trucks Manual Color 6*4 Heavy Duty Truck Tractor Head Heavy Transport Truck



Product Quick Details:



Drive Wheel:6x4

Capacity (Load):21 - 30t

Horsepower:251 - 350hp

Condition:New

Transmission Type:Manual

Emission Standard:Euro 3

Fuel Type:Diesel

Engine Capacity:> 8L

Gross Vehicle Weight:31000

Place of Origin:Shandong, China (Mainland)

Brand Name:FAW, FAW dump truck

Model Number:CA3312

Dimensions (L x W x H) (mm):10208*2500*3600

Color:Optional

Wheelbase(mm):1860+3960+1350

Max torque(N.m):1250

Tyre specification:12.00R2018



Product Advantages:

  • Full-float New J5P cabin ( high roof / flat roof ) , comfortable and control smoothly
  • High safety , high reliability , high comfort , low weight , low fuel consumption , low maintenance cost

  • FAWDE / WEICHAI engine , FAW / FAST / EATON / ZF gearbox , FAW / PX axle , high reliability
  • Apply to long distance high efficiency transportation

Customer Service:



1: Quality:

1.1- The Goods are brand new and shall conform to the relevant quality standards of FAW Group.

1.2- The manufacturer’s inspection prior to the shipment shall be final. In case any third party’s inspection is required by the Buyer, any charges which will be occurred by such inspection shall be borne by the Buyer.



2 Packing & Transportation:

2.1- Packing: Nude Cargo

2.2-Shipping marks: As contract

2.3- Transportation:RORO vessel or container



3 Delivery:

We could deliver the Goods to any port in China as required within 150 calendar days from the date of receiving the down payment.



4 Quality/Specifications/Quantity :

If the quality, specifications, quantity, of Goods be found not in conformity with the stipulations of contract after the arrival of the Goods, we will compensate it after receiving the necessary documentary evidence as required.





Technological Parameters:



FAW New J5P 6×4 tractor truck
Drive System 6×4
Engine Weichai engine WP10.340E32, 9.726L, Euro III
Rated power 250KW/340HP/2200rpm
Max. torque 1250N.m
Gearbox FAST 12JSD160T; 12 forward speeds, 2 reverse speed
Overall dimensions (mm) 10208*2500*3600
Dump body (mm) 7600×2300×1200
Thickness (mm) Bottom 8, side 6
Hydraulic lifting system Front lifting style
Wheel base (mm) 1860+3960+1350
Frame 320*90*(8+8)
Front axle A1H
Rear Axle 300 casting axle with ratio: 5.921
Clutch Φ 430mm Diaphragm type
Tire 12.00R2018
Fuel Tank 400L
The Others All steel dash, air seat, WABCO valves for the whole vehicle,maintenance-free battery, bipolar air filter, tank armor



Product photos

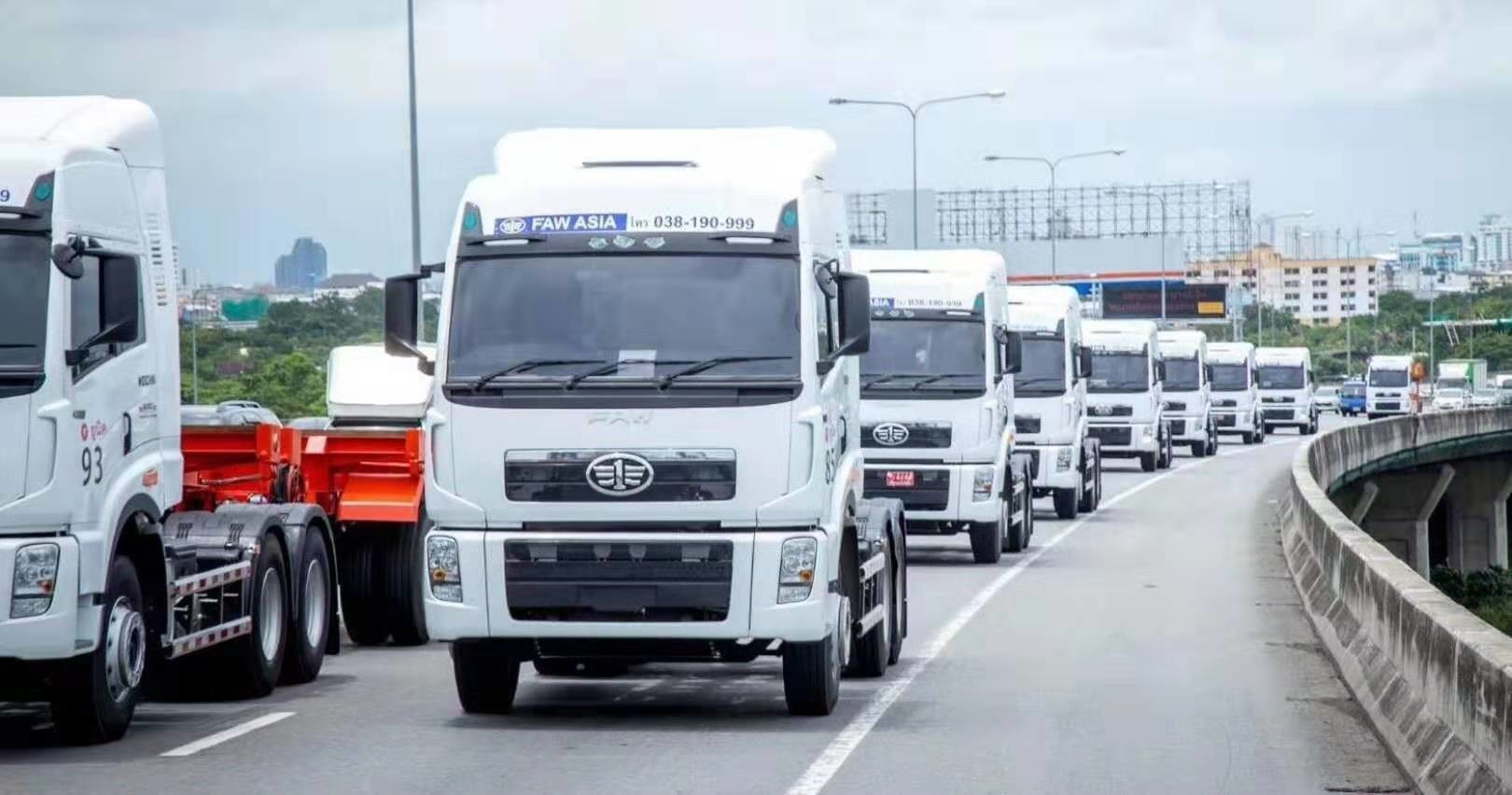

FAW JIEFANG J5P Tractor Trailer Truck Manual 30t / Heavy Transport Truck 0

FAW JIEFANG J5P Tractor Trailer Truck Manual 30t / Heavy Transport Truck 1FAW JIEFANG J5P Tractor Trailer Truck Manual 30t / Heavy Transport Truck 2FAW JIEFANG J5P Tractor Trailer Truck Manual 30t / Heavy Transport Truck 3FAW JIEFANG J5P Tractor Trailer Truck Manual 30t / Heavy Transport Truck 4
