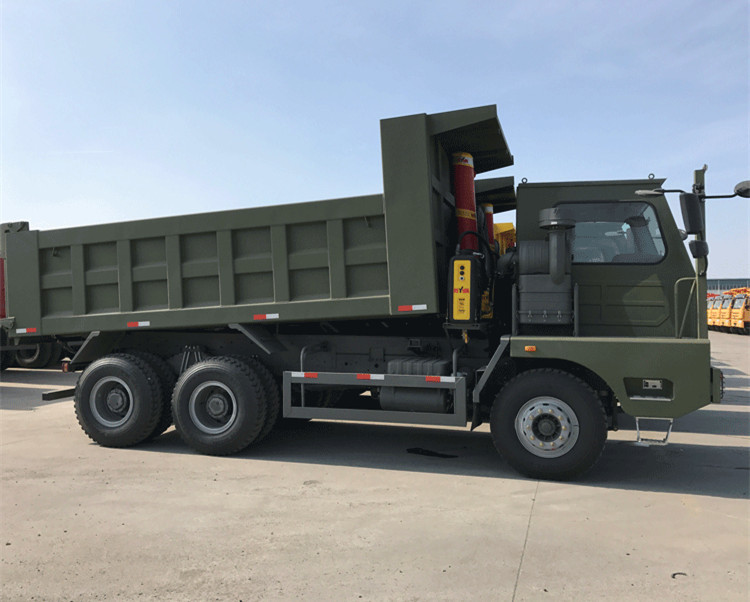

10 Wheel Drive Sinotruk 6X4 Mining Dump Truck With AC26 Rear Axle ZZ5707S3640AJ

10 Wheel Drive Sinotruk 6X4 Mining Dump Truck With AC26 Rear Axle ZZ5707S3640AJ

    • 10 Wheel Drive Sinotruk 6X4 Mining Dump Truck With AC26 Rear Axle ZZ5707S3640AJ
    • 10 Wheel Drive Sinotruk 6X4 Mining Dump Truck With AC26 Rear Axle ZZ5707S3640AJ
    • 10 Wheel Drive Sinotruk 6X4 Mining Dump Truck With AC26 Rear Axle ZZ5707S3640AJ
  • 10 Wheel Drive Sinotruk 6X4 Mining Dump Truck With AC26 Rear Axle ZZ5707S3640AJ

    Product Details:

    Place of Origin: JINAN CITY OF CHINA
    Brand Name: SINOTRUK
    Certification: CCC
    Model Number: HOWO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 UNIT
    Price: Negotiable
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 500 UNITS/Month
    Contact Now
    Detailed Product Description
    Rear Axle:: AC26 Cab:: HW7D
    Emission Standard:: Euro 2 Driving Type:: Left Hand Drive
    Gear Box:: Manual 10 Speeds Tire:: 14.00R25
    High Light:

    diesel dump truck

    ,

    sinotruk howo dump truck

    ZZ5707S3640AJ 10 Wheel Drive Sinotruk 6X4 New Mining Dump Truck With AC26 Rear Axle

    Description:



    HOWO brand water Truck is produced by SINOTRUK.Adopt WD615 series of 6-cylinder in line, 4-stroke, water cooled, turbo-charged inter-cooled,direct injection engine.Have good power economy.

    And the brake system have huge advantages.Service brake:dual circuit compressed air brake
    Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

    Auxiliary brake:engine exhaust valve brake., and it can achieve continuously variable transmission.Rich experience and well after-sale service.

    (1) The overseas engineers are always ready to deal with unexpected needs.
    (2) More than 40 years' experience as a manufacturer, more than 12 years exporting experience.
    (3) Products Quality Certification SGS CCC ISO
    (4) Export to more than 30 countries and regions
    (5) Regularly callback to know the vehicle's working status.



    Packing:



    Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

    Product Features:

    1. Question: What's your payment term?

    Answer: We accept T/T(30% down payment and balance before shipping) and L/C mostly. But if you prefer other payment terms please contact us for further information.

    2. Question: How about the delivery time?

    Answer: Fot the HOWO mining dump truck for coal we will ship it in 40 days after down payment.

    3. Whats's the warranty time?

    Answer: We provide one year warranty for the mining dump truck.

    4. How do you offer the after sale service?

    Answer: We offer after sale service life long. Engineers are available to go abroad for training and spare parts will be sent at the soonest.



    HOWO MINING TIPPER TRUCK MAIN SPECIFICATION
    Model ZZ5707S3640AJ Steering ZF8098
    Engine Brand SINOTRUK Loading Weight 50000kg
    WD615.47 Euro II Tyres 14.00R25(36 level) Radial tyre
    Maximum Output 371HP Cab Left hand driving
    Rated engine power (KW/r/min) 273/2200 No sleeper
    Air-condition
    Transmission HW19710 (10forward,2reverse) Max Speed 50 km/h
    Front Axle HF12
    Max loading : 12000kg Body Floor 12mm
    Rear Axle AC26 Ratio: 10.47 Side 8mm
    Max loading : 26000kg Hydraulic Cylinder Front Tipper
    Overall Dimension(mm) 8450×3300×4100
    Electrics

    Operating voltage:24V,negative grounded

    Starter:24V,7.5 Kw

    Alternator:3-phase,28V,1500 W

    Batteries:2x12 V,165 Ah

    horn,headlamps,fog lights,brake lights,indicators and reverse light



    10 Wheel Drive Sinotruk 6X4 Mining Dump Truck With AC26 Rear Axle ZZ5707S3640AJ 010 Wheel Drive Sinotruk 6X4 Mining Dump Truck With AC26 Rear Axle ZZ5707S3640AJ 110 Wheel Drive Sinotruk 6X4 Mining Dump Truck With AC26 Rear Axle ZZ5707S3640AJ 2
