| Place of Origin: | Shandong，China |
| Brand Name: | SINOTRUK HOWO |
| Certification: | ISO9001 |
| Model Number: | ZZ4187N3617 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | packed in nude |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500sets per month |
| Brand: | SINOTRUK | Condition: | New |
|---|---|---|---|
| Drive Type: | 4X2 | Horsepower: | 371 |
| Engine: | WD615.47 | Fuel: | Diesel |
| High Light: | diesel tractor truck,tractor head truck |
||

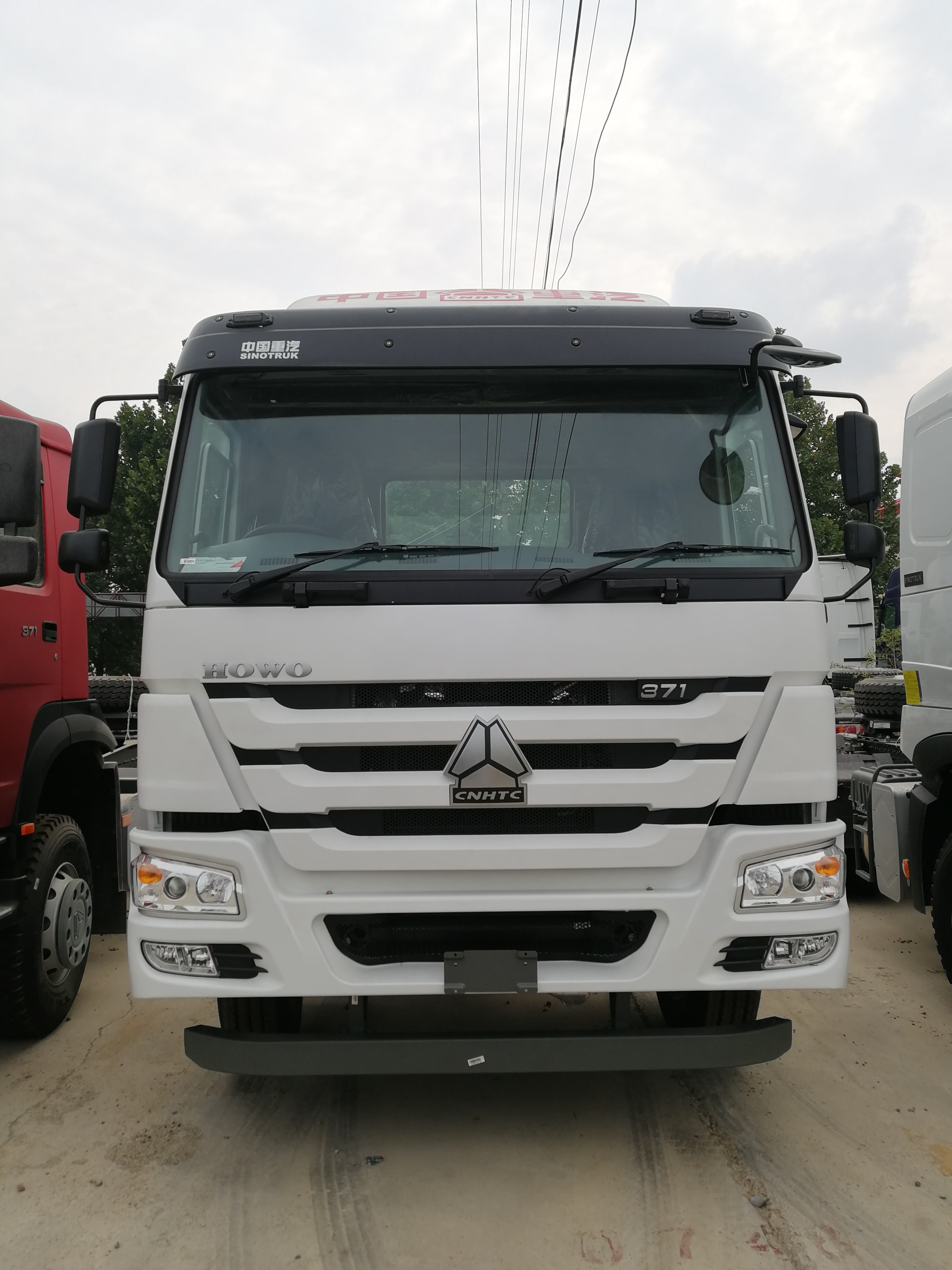

SINOTRUK HOWO 4X2 371HP Efficient Tractor Truck Euro 2 Optional Color
Applications
It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and Mining area.
This model is the proven product of SINITRUK, which features reliable structure, great loading capacity, excellent power from 336-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.
The fifth version of the highway transport is equipped with iron reinforced frame, Iron shell transmission and two-stage reduction drive axle which can loaded16 ton, single-stage reduction drive axle, which can loaded 16 ton is optional, mainly used for comprehensive road conditions and overloading of the transport conditions.
Product Description
| SINOTRUK HOWO 4X2 Tractor Truck | |
| Chassis Model | ZZ4187N3617 |
| Driving Type | Right Hand Driving (Left Hand Driving is optional) |
| Production Year | New truck. |
| Cabin | HW76, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. |
| Engine |
Make: SINOTRUK Diesel 4-stroke direct injection diesel engine Engine Model: WD615.47, Euro 2, 371 HP 6-cylinder in-line with water cooling, turbo-charging and inter-cooling Displacement: 9.726 L |
| Transmission | HW19710L, 10F & 2R |
| Steering | ZF power steering, model ZF8198, hydraulic steering with power assitance |
| Front Axle |
HR7, 1x7000 KGS Steering with doubleT-cross section beam |
| Rear Axle |
ST16, 1x16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio: 3.93 |
| Chassis |
Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced sub-frame all cold riveted cross members Front suspension:10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics |
Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tires |
295/80R22.5, tubeless tires with one spare tire. Optional: 12.00R22.5, radial tires. |
| Fuel Tank | 400 L |
| Fifth Wheel | 90# |
| Overall Dimension | 6125*2496*3125 mm |
Competitive Advantage
1)with all kinds of truck model, which can fulfill your requirement
2)the key parts adopt the world's top technology products
3)based on strong technical support and top level technology make the trucks with high quality and more reliable
4)it has higher safety and running efficiency.
5)excellent appearance of cabin, safety, reliable
6)low fuel consumption
7)strong enough engine
8)competitive price, cost-effective
9)quick and efficient spare parts supply bring you more convenient
10)fast delivery time, we can arrange production according to your needs exactly and Quickly
11)professional import and export dealing procedure, make customs clearance more high efficiency
