Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: ISO9001
Model Number: XM1303K
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: packed in nude
Delivery Time: 30-45days
Payment Terms: L/C, T/T
Supply Ability: 500sets per month
Contact Now
Detailed Product Description
Condition: New Operating Weight: 20000kg
Engine: C6121ZLG51 Rated Power: 190kw/2200rpm
Max Milling Width: 1320mm Max Milling Depth: 315mm
High Light:

road maintenance truck

,

road sealing equipment

 XCMG XM1303K road maintenance equipment cold milling machine 1.3m width



PRODUCT DESCRIPTION



Features:

XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, reticulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is a piece of ideal equipment for pavement maintenance and renovation.

Performance and characteristic

• The milling drum is driven by two four-link belts with the automatic tensioning device.

• The moving system is the four-wheel fully hydraulic driving .The differential lock makes uniform driving forces even on the slippery road surface.

• The machine has the advantages of being suitable for different milling materials and milling depth ,optimizing power output automatic adjusting function and implementing maximization of the productivity.

• The brake system implements the travelling brake by the reverse dragging of the hydraulic system .The multi-disc typed brake is arranged on the rear wheel reducer to implement the parking brake .

• The automatic depth control (selectable )adopts the contact-typed or non contact-typed sensor for detection with digitally displayed milling depth.



Model   XM1303K
  Max. milling with mm 1300
Max. milling depth mm 315
Milling wheel Number of tools   112
Drum diameter with tools mm 980
Engine Model   C6121ZLG51
Rated power kW 190
Rated speed rpm 2200
Specifications Operating speed m/min 0~30
Travel speed km/h 0~7
Ground clearance % 50
Ground clearance mm ≤320
Operating weight kg 20000
Volume Fuel tank L 280
Hydraulic oil tank L 160
Water tank L 780
Conveyor Width mm 600
Measurement Overall machinery LxWxH mm 5255×2480×3245
Conveyor LxWxH mm 7020×1030×1040
Travel mode   Tire

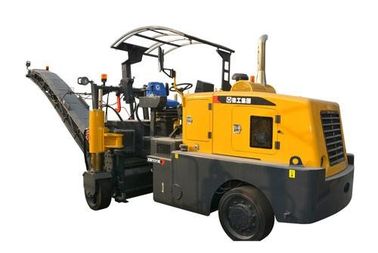

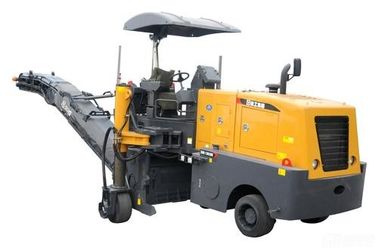

Product Picture



XM1303K Road Maintenance Equipment / 130kw Engine Cold Milling Machine 1.3m Width 315mm Deapth 0

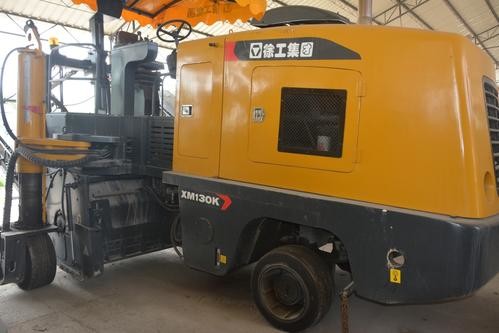

APPLICABLE SCENE

XM1303K Road Maintenance Equipment / 130kw Engine Cold Milling Machine 1.3m Width 315mm Deapth 1

XM1303K Road Maintenance Equipment / 130kw Engine Cold Milling Machine 1.3m Width 315mm Deapth 2



service



XM1303K Road Maintenance Equipment / 130kw Engine Cold Milling Machine 1.3m Width 315mm Deapth 3
