Diesel Tractor Trailer Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W

Diesel Tractor Trailer Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W

    • Diesel Tractor Trailer Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W
    • Diesel Tractor Trailer Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W
    • Diesel Tractor Trailer Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W
    • Diesel Tractor Trailer Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W
  • Diesel Tractor Trailer Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W

    Product Details:

    Place of Origin: China
    Brand Name: HOWO
    Certification: ISO/CCC
    Model Number: ZZ4257N3247W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Nude
    Delivery Time: 30-45 work days
    Payment Terms: L/C, T/T
    Supply Ability: 300 Unit/Units per Month
    Contact Now
    Detailed Product Description
    Condition: New Drive Wheel: 6x4
    Emission Standard: Euro 2 Fuel Type: Diesel
    Size: 7000*2550*3100mm Cabin: HW76, With One Sleeper
    Transmission: HW19710, 10F & 2R Front Axle: HF7 / HF9
    High Light:

    prime mover truck

    ,

    tractor head truck

    SINOTRUK HOWO Tractor Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W

    Product description



    SINOTRUK HOWO Tractor Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W
    This model is the proven product of SINITRUK, which features reliable structure, great loading capacity, excellent power from 266-420HP, reliable performance. This model can meet the requirements of different road conditions. This model can satisfy your need of long distance highway transportation.
    Highway transport is divided into two version, to match the different condition of transportation needs.
    The first version of the highway transport is equipped with aluminum shell transmission MCY13 (Q) single reduction drive axle and other lightweight configuration, mainly used for standard load level (It means that the total weight of tractor train within 55 tons, the total weight of bike within 41 tons); When the first version of the tractor adopts the plate spring suspension, disc brake MCY13 (Q) single stage drive axle can be opted.
    The fifth version of the highway transport is equipped with iron reinforced frame, Iron shell transmission and two-stage reduction drive axle which can loaded16 ton, single-stage reduction drive axle, which can loaded 16 ton is optional, mainly used for comprehensive road conditions and overloading of the transport conditions.



    Product parameter



    Product Name
    SINOTRUK HOWO 6X4 Tractor Head
    Chassis Model
    ZZ4257N3247W
    Driving Type
    LHD (RHD is optional)
    Cabin
    HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber.
    Engine
    Make: SINOTRUK
    Diesel 4-stroke direct injection diesel engine
    Engine model:WD615,47, Euro 2, 371 HP
    6-cylinder in-line with water cooling, turbo-charging and intercooling
    Displacement: 9.726 L
    Transmission
    HW19710, 10F & 2R
    Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
    Steering
    ZF power steering, modol ZF8118, hydraulic steering with power assitance
    Front Axle
    HF9,1x9000 KGS
    Steering with doubleT-cross section beam
    Rear Axle
    HC16, 2x16000 KGS
    Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
    Ratio:5.73
    Propeller Shaft
    Double universal joint propeller shaft with gear-shaped coupling flange
    Chassis
    Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
    Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
    Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer
    Brake
    Service brake: dual circuit compressed air brake
    Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
    Auxiliary brake: engine exhaust brake
    Electrics
    Operating voltage: 24 V, negative grounded
    Starter: 24 V, 5.4 Kw
    Alternator: 3-phase, 28 V, 1500 W
    Batteries: 2 x 12 V, 165 Ah
    Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
    Tyres
    295/80R22.5, tubeless tyres with one spare tyre
    Fuel Tank
    400L
    Fifth Wheel
    90# or 50 #
    Overall Dimension
    7000*2550*3100mm



    Competitive Advantage



    1)low fuel consumption
    2)strong enough engine
    3)with all kinds of truck model, which can fulfill your requirement
    4)the key parts adopt the world's top technology products
    5)based on strong technical support and top level technology make the trucks with high quality and more reliable
    6)it has higher safety and running efficiency.
    7)excellent appearance of cabin, safety, reliable
    8)competitive price, cost-effective
    9)quick and efficient spare parts supply bring you more convenient
    10)fast delivery time, we can arrange production according to your needs exactly and Quickly
    11)professional import and export dealing procedure, make customs clearance more high efficiency

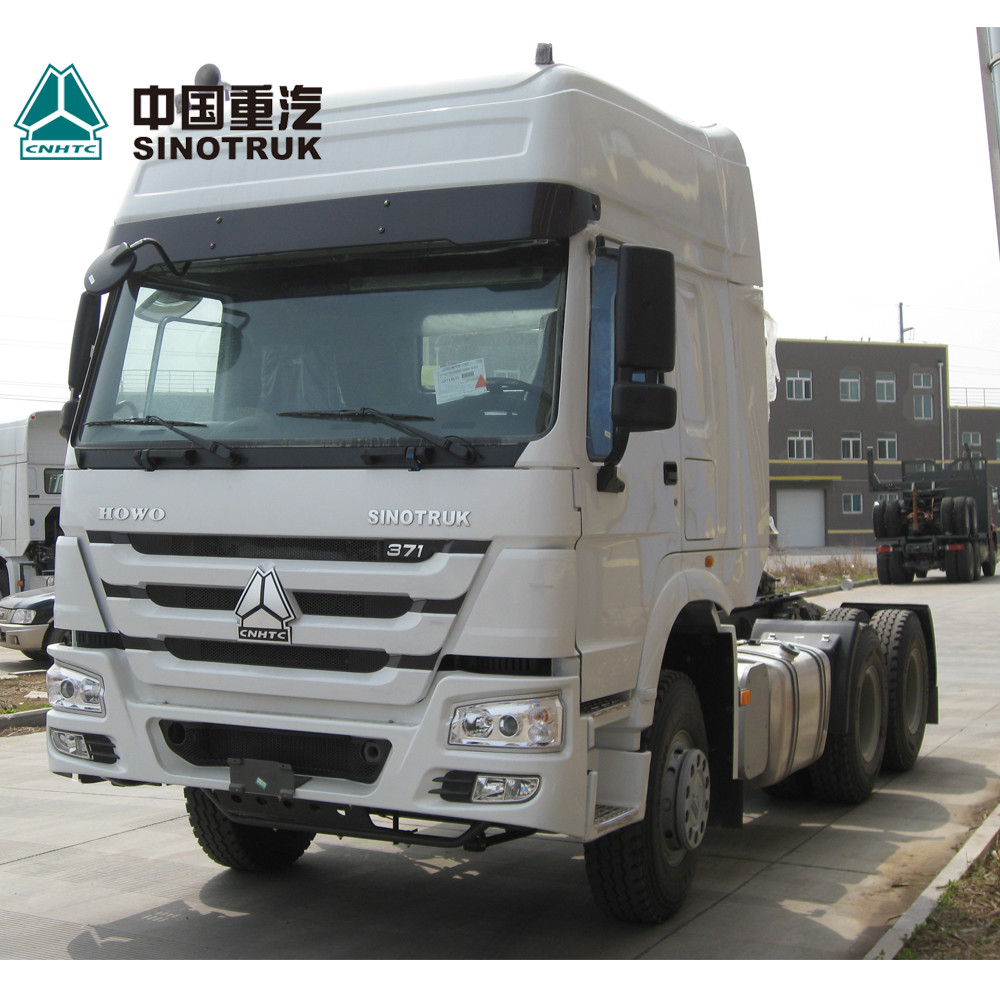

    Product picture



    Diesel Tractor Trailer Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W 0Diesel Tractor Trailer Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W 1Diesel Tractor Trailer Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W 2Diesel Tractor Trailer Truck 6X4 10 Wheels Euro2 371HP ZZ4257S3241W 3
