Home ProductsSpecial Purpose Truck

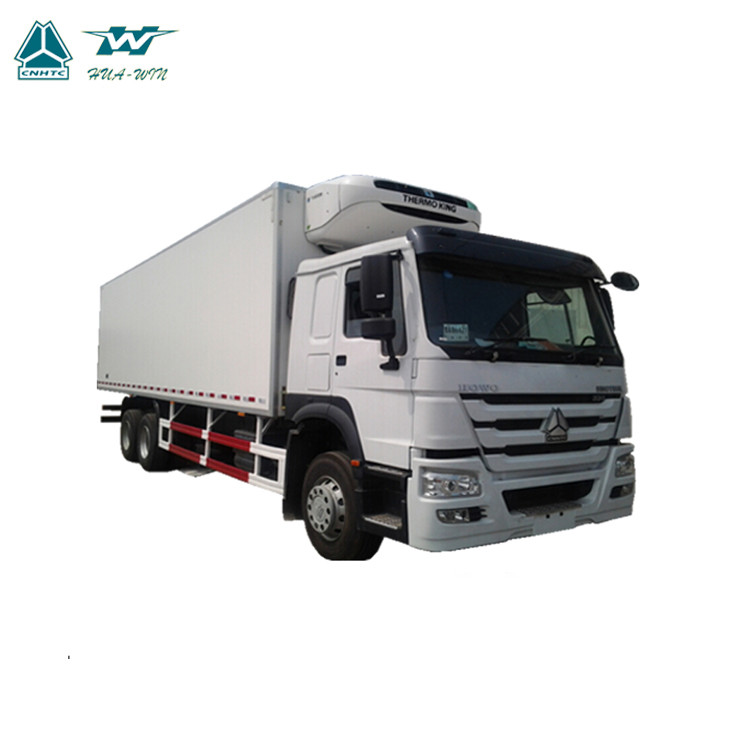

Refrigerated Box Container Heavy Cargo Truck 6x4 Diesel Fuel Type Maximum Speed 96km/H

Refrigerated Box Container Heavy Cargo Truck 6x4 Diesel Fuel Type Maximum Speed 96km/H

  • Refrigerated Box Container Heavy Cargo Truck 6x4 Diesel Fuel Type Maximum Speed 96km/H
  • Refrigerated Box Container Heavy Cargo Truck 6x4 Diesel Fuel Type Maximum Speed 96km/H
  • Refrigerated Box Container Heavy Cargo Truck 6x4 Diesel Fuel Type Maximum Speed 96km/H
Refrigerated Box Container Heavy Cargo Truck 6x4 Diesel Fuel Type Maximum Speed 96km/H
Product Details:
Place of Origin: CHINA
Brand Name: SINOTRUK
Certification: ECE,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Price: NEGOTIABLE
Packaging Details: NUDE
Delivery Time: 25-45DAYS
Payment Terms: L/C, T/T
Supply Ability: 5000UNITS/MONTH
Contact Now
Detailed Product Description
Condition: New Drive Wheel: 6*4
Emission Standard: Euro 3 Fuel Type: Diesel
Color: Optional Horsepower: 371
Engine Capacity:: > 8L Capacity (Load): 20,000 Kg
Highlight:

aircraft refueler trucks

,

truck mounted concrete pump

FAW J6L 4x2 1 - 10t capacity (load) container cargo truck brand new commercial vehicle flatbed cargo truck chassis



Product Quick Details:


Brand Name:SINOTRUK

Model:ZZ525

Place of Origin:China

Transmission Type:Manual

Condition:New

Horsepower:351 - 450hp

Emission Standard:Euro 2

Fuel Type:Diesel

Dimensions (L x W x H) (mm):9500*2550*3400 mm

Box Dimensions (L x W x H) (mm):8250*2300*3000 mm

Temperature Range:-20~0

Gross Vehicle Weight:25000

Type:refrigerated van truck

Color:White or as customized

Driving type:LHD/RHD

Loading Capacity:20,000 kg

Engine:SINOTRUK WD615.47

Engine Type:Mechanical

Horse Power:371ps

Cabin:HW76 Cabin with One Sleeper

Transmission:HW19710 manual

Shipment:RO-RO/40FR/Bulk Vessel



Product Features:


Warranty
Guarantee the main parts engine, gearbox and axles for one year or within 100,000 Kilometers (which comes first) under regular maintenance and correct operation.
After Sale Support
Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);
Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.



Product Specification:

Specifications for HOWO Refrigerator Truck



Cabin
Driving Model: 6x4 Left Hand Drive or Right Hand Drive
HW76 cabin with one sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber.
Condition: brand new


Engine
Model: SINOTRUK WD615.47
Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling.
Emission Standard: Euro II
Displacement: 9.726L

Transmission
HW19710 manual gearbox, 10F & 2R
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2)
Steering
ZF power steering, model ZF8118, hydraulic steering with power assitance
Front Axle
HF9, 1x9000 KGS
Steering with doubleT-cross section beam

Rear Axle
HC16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles.
Ratio: 4.8

Brake
Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake


Electrics
Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Tires
315/80R22.5 or 12R22.5, tubeless tires with one spare tire.
Optional: 12.00R20, radial tires
Fuel Tank
400 Liters

Van Body
Van Material: GRP/Steel/Aluminium Alloy in the surface,foam in the moddle,thickness 80-100mm
Refrigerator Brand: Chinese/US/Korean refrigerator for option
Temperature: -20~0





Refrigerated Box Container Heavy Cargo Truck 6x4 Diesel Fuel Type Maximum Speed 96km/H 0Refrigerated Box Container Heavy Cargo Truck 6x4 Diesel Fuel Type Maximum Speed 96km/H 1Refrigerated Box Container Heavy Cargo Truck 6x4 Diesel Fuel Type Maximum Speed 96km/H 2

Packaging & Delivery

Packaging Details

NUDE CARGO
Delivery Date:
The Seller shall deliver the Goods to border within 55 calendar days from the date of receiving the T/T down payment from the Buyer,on the condition that the Seller also have received the balance payment from the Buyer.

Port

QINGDAO PORT
