Product Details:
Place of Origin: China
Brand Name: SBM
Certification: CE ISO
Model Number: YG938E69
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 100 Set/Sets per Month
Contact Now
Detailed Product Description
Dimension(L*W*H): 13800*3000*4200(mm) Capacity(t/h): 40-850TPH
Weight: 10-51t Warranty: 1 Year
Max Feeding Size: 200-1020mm After-sale Service: Problems Within 48 Hours
Motor Type: AC Motor Product Name: Stone Crusher
High Light:

anfo mixer equipment

,

mobile mixing unit

Mobile Jaw Crusher, Rock Crushing Machine 100-120t/h Stone Crusher Plant

Product Description



Mobile stone crusher provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications. It offers high efficient and low cost project plan without environment limit for the client.



Mobile stone crusher is stone crusher on movable vehicle.This series of Mobile stone incorporates all the equipments together on one truck, which has high chassis, narrower body compared with other trucks, this ensure the crushing plant be easily transported on highways and moved to crushing sites, so it is able to achieve on-site crushing without material transporting from one place to another place. In addition, the lengthened plant is able to transport the final products to the motor-lorry directly. it can start to work soon even in the bumpy ground without reinstallation, so it saves more time and money than fixed crushing plant which needs to install individual equipment one by one.



Worry-saving for rapidly putting into production, money-saving for flexibility and environmental protection:



Compared with fixed production line, SBM mobile crushing plant has a shorter engineering period and rapider transition and follow-up, which not only reduce the investment risk and opportunity cost of the investors, but also avoid the demolition and construction after the end of project, making it more economical and environmentally protective; in addition, the machine has excellent depreciation hedging capacity, so that the investor can rapidly invest in new project, or sell the machine to get money, thus reducing the investment cost.



Product parameter



Parameter model Transport length (mm) Transport height (mm) Transport width (mm) Max. height (mm) Max. width (mm) Belt conveyor height (mm) Total weight (ton)
YF938J69 11200 3900 2450 4700 2900 2600 42
YF1142J710 13000 4400 2450 5100 3100 2600 55
YF1349J912 15000 4800 3000 5600 3300 2800 72



Parameter model Feeder spec Jaw crusher Belt conveyor Extended belt conveyor Generator Capacity (t/h) Power (kw)
YF938J69 GZD-960X3800 PE600X900 B650X7M Optional Optional 70-150 91.5
YF1142J710 GZD1100X4200 PE750X1060 B800X9M Optional Optional 90-200 134
YF1349J912 GZD-1300X4900 PE900X1200 B1000X11M Optional Optional 150-300 146

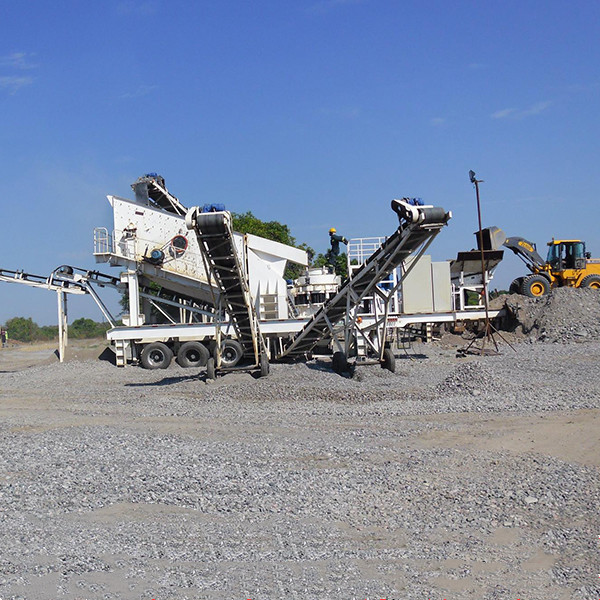

Project Case



AC Motor Mobile Jaw Crusher , Rock Crushing Machine 100-120t/h For Stone Crusher Plant 0

50TPH Hard Aggregate Crushing Production Line in Sri Lanka:



With the rapid growth of world economy, every country starts to focus on the infrastructure construction. To adapt for the modernization of infrastructure, the demand for aggregate production is expanding.



Process flow:



This aggregate production line is mainly composed of the grizzly vibrating feeder, jaw crusher, cone crusher and circular vibrating screen. Raw materials are firstly quarried by excavator. The grizzly vibrating feeder equipped with feeding grate can screen the materials primarily. The materials are then sent out by belt conveyor after being crushed primarily by the jaw crusher. The big blocks are evenly sent to cone crusher by feeder and after being crushed, materials can meet the discharging requirement so they can be sent out by belt conveyor. Through a series of crushing and screening, the aggregate can totally meet the market demand.



Equipment configuration advantage:



1. Integrated Complete Set of Mobile Crushing Station

The installation of integrated set frees customers from infrastructure construction on complicated terrains. It not only reduces the material consumption and construction period, but also occupies smaller floor area.

2. Mobile Crushing Station Reducing Material Transportation Expenses

Mobile crushing station can directly crush materials on customer sites, which avoids the step of material transfer, greatly reducing material transportation expenses.

3. Mobile Crushing Station is Flexible

It is easy for mobile crushing station to travel on ordinary roads and the rugged roads. So it saves time for entering the construction sites quickly and offers more flexible space and rational layout arrangement in the whole crushing process.

4. Mobile Crushing Station Has High Adaptability and Free Collocation

As for screening system of coarse and fine crushing, single unit can work independently. Several machines freely collocated to form a system to process materials is also available. The discharging hopper offers flexibility of multiple collocations to the screening material transportation means.

5. Mobile Crushing Station Can Work Directly and Effectively.

The integrated mobile crushing station can work independently. In terms of the customers’ demands for material types and finished product standards, the more flexible collocation of technologies is offered to meet various requirements of mobile crushing and screening.

6. The performance is more reliable and the maintenance is easier.

The performance of the integrated mobile crushing station is stable while the operation cost is low. The shape of discharging materials is uniform. Besides, it is easy for repair and maintenance because of the simple structure.



Product picture



AC Motor Mobile Jaw Crusher , Rock Crushing Machine 100-120t/h For Stone Crusher Plant 1AC Motor Mobile Jaw Crusher , Rock Crushing Machine 100-120t/h For Stone Crusher Plant 2
