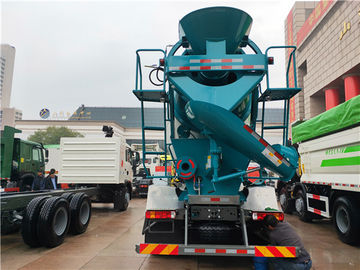

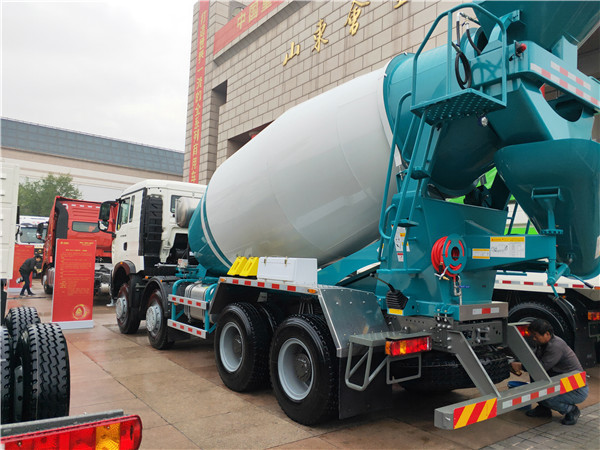

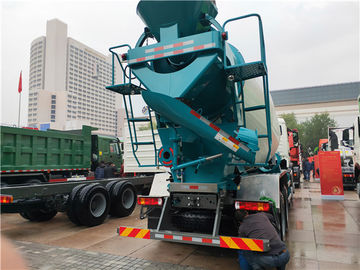

ZZ5317GJBN3261W 8X4 12 CBM Concrete Mixer Truck With 400L Aluminum Alloy Fuel Tank

ZZ5317GJBN3261W 8X4 12 CBM Concrete Mixer Truck With 400L Aluminum Alloy Fuel Tank

  • ZZ5317GJBN3261W 8X4 12 CBM Concrete Mixer Truck With 400L Aluminum Alloy Fuel Tank
  • ZZ5317GJBN3261W 8X4 12 CBM Concrete Mixer Truck With 400L Aluminum Alloy Fuel Tank
  • ZZ5317GJBN3261W 8X4 12 CBM Concrete Mixer Truck With 400L Aluminum Alloy Fuel Tank
ZZ5317GJBN3261W 8X4 12 CBM Concrete Mixer Truck With 400L Aluminum Alloy Fuel Tank
Product Details:
Place of Origin: JINAN CITY OF CHINA
Brand Name: SINOTRUK
Certification: ISO/CCC
Model Number: HOWO7
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: Nude
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 500 units/month
Contact Now
Detailed Product Description
Cabin:: HW76 Cabin, With 1 Sleepers, With A/C Clutch:: Φ430 Diaphragm-spring Clutch
Gearbox:: HW19710, 10F & 2R Color:: Optional
Condition:: New Brand:: HOWO 7
High Light:

truck mounted concrete pump

,

mobile cement mixer trucks

                 ZZ5317GJBN3261W HOWO 8X4 12 CBM Concrete Mixer Truck With 400L Aluminum Alloy Fuel Tank

Description:

Concrete mixer truck is a special truck used to transport concrete for construction; because of its shape, it is often referred to as a field snail truck. These trucks are equipped with cylindrical stirrer to carry mixed concrete. In the course of transportation, the mixing drum will always be rotated to ensure that the concrete carried will not solidify. After the concrete is transported, the inner part of the mixing drum is usually flushed with water to prevent the hardening of the concrete from occupying space, so that the volume of the mixing drum becomes smaller and smaller.
Mixing Volume(M³):12
Stuffing Volume(%):59.3
Feeding Speed(M³/min):≥3
Discharging Speed(M³/min):≤2
Discharge Residue(%):≤0.2
Slump Scope(mm):50~220
Drum Speed( Min):0~16
Water supply Syste:400L/Pneumatic
Drum Material:8/16MnR
Steel:3mm,4mm,5m

Packing:

Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

Competitive Advantage:

HOWO-7 8X4 12 CBM Concrete Mixer Truck is produced by SINOTRUK.The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.





Cubage

Pump(ARK PV089MHR)+Motor(ARK MF089V)+Reducer(TOP T60)
Mixing Volume(M³):12
Stuffing Volume(%):59.3
Feeding Speed(M³/min):≥3
Discharging Speed(M³/min):≤2
Discharge Residue(%):≤0.2
Slump Scope(mm):50~220
Drum Speed( Min):0~16
Water supply Syste:400L/Pneumatic
Drum Material:8/16MnR
Steel:3mm,4mm,5mm


Weight in kg


Kerb weight (Kg)

13700



Gross vehicle weight (Kg)

31000


Dimension(mm)



Dimensions(mm)

Length(mm)10715
  Width(mm)2550
  Height(mm)3950
 Wheel base (mm)3400+1350


Performance

Maximum driving speed (km/h)92
 Fuel consumption (1/100 km)38


Cab

ModelSINOTRUK HOWO HW76 cab
  single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner


Engine

ModelWD615.47(Euro 2)
 Type6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
 Horsepower371
 Maximum output Kw/r/min272/2200
 Maximum torque N.m/r/min1350/1300-1600
 Bore x Stroke126x130mm
 Valve2
 Displacement9.726L
 Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80℃ opening begin, Rigid fan
TransmissionSINOTRUK HW19710 transmission ,10 forward and 2 reverse
Clutch

Φ430 diaphragm-spring clutch,hydraulically operating with air assistance

SteeringZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving)
Front AxleSINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes.
Rear AxlesSINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.
Brake System

Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels

Wheels & TyresRims:10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.


Electrics

Operating voltage:24V,negative grounded
24V,7.5KW.Starter:24V,7.5 Kw
28V,1500W.Alternator:3-phase,28V,1500 W
Batteries:2x12 V,165 Ah
horn,headlamps,fog lights,brake lights,indicators and reverse light

Oil TankSquare type-400L Aluminum alloy fuel tank


ZZ5317GJBN3261W 8X4 12 CBM Concrete Mixer Truck With 400L Aluminum Alloy Fuel Tank 0ZZ5317GJBN3261W 8X4 12 CBM Concrete Mixer Truck With 400L Aluminum Alloy Fuel Tank 1
